CYLINDER HEAD AND VALVES

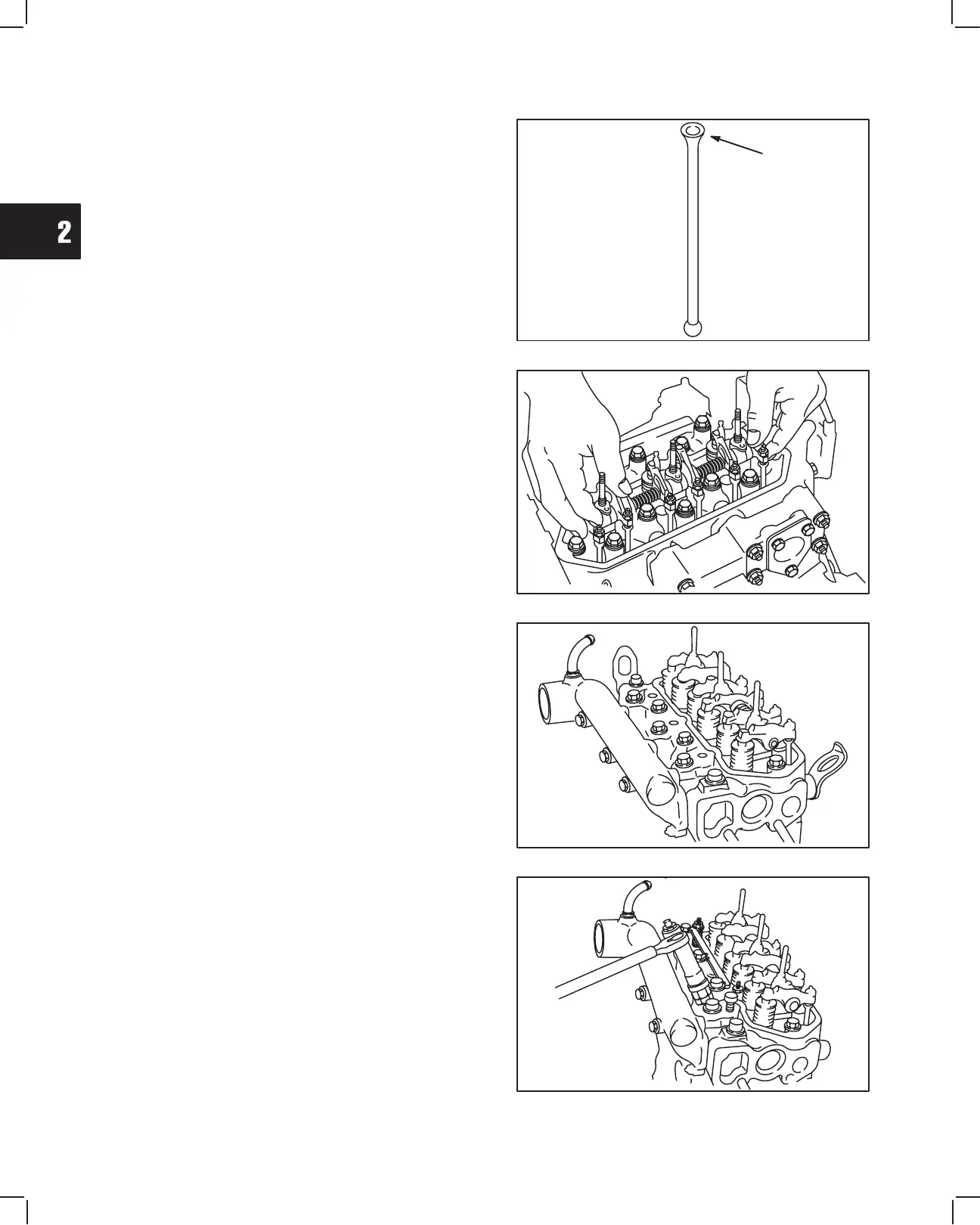

3. Lubricate push rods with engine oil then install with
recessed end up, Fig. 34.
Fig. 34 – Install Push Rods
RECESSED
END UP
4. Install valve stem caps on valve stems. Install
rocker arm assembly, Fig. 35. Install washers and
torque nuts to 19.0 Nm (170 in. lbs.).
NOTE: Make sure rocker adjustment studs are
seated in recessed end of push rods.
Fig. 35 – Install Rocker Arm Assembly
5. Install intake manifold with new gasket, Fig. 36.
a. Torque screws to 8.0 Nm (70 in. lbs.).
Fig. 36 – Install Intake Manifold
6. Install Injectors, fuel lines and glow plugs, Fig. 37.
a. Torque injectors to 61.0 Nm (45 ft. lbs.).
b. Torque fuel return line to 27.0 Nm (20 ft. lbs.).
c. Torque fuel delivery lines to 25.0 Nm (220 in.
lbs.).
d. Torque glow plugs to 17.0 Nm (150 in. lbs.).
Fig. 37 – Install Glow Plugs And Injectors
