CYLINDER HEAD AND VALVES

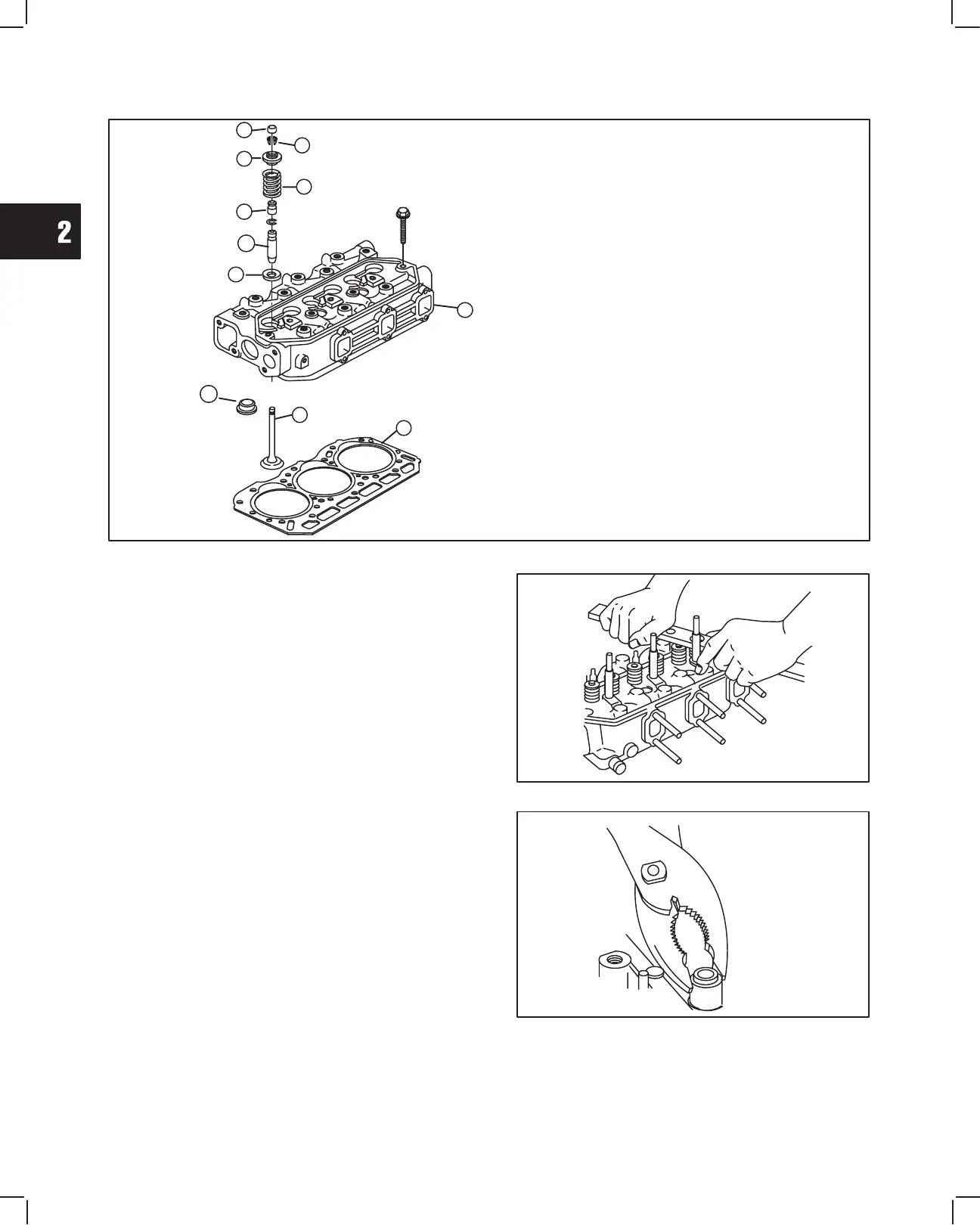

Fig. 9 – Cylinder Head Components
DISASSEMBLE CYLINDER HEAD
1. Cylinder Head Assembly
2. Cylinder Head Gasket
3. Valve Stem Cap
4. Valve Spring Retainer Locks
5. Valve Spring Retainer
6. Valve Spring
7. Valve
8. Valve Spring Seat
9. Valve Stem Seal
10. Valve Guide
11. Combustion Chamber
3
4
5
6
7
1
2
8
9
10
11
Remove valves, Fig. 10.
1. Use valve spring compressor, Tool #19417, to
compress valve springs. Remove the following
parts, Fig. 9:
a. Valve spring retainer locks – 4
b. Valve spring retainer – 5
c. Valve spring – 6
d. IN and EX valve – 7
e. Valve spring seats – 8
Fig. 10 – Remove Valves
2. Remove and discard valve stem seals, Fig. 11.
Fig. 11 – Remove Valve Stem Seal
