Section 9
Cylinder Block Assembly
Section Contents
Page
INSTALL CRANKSHAFT 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALL PISTONS AND CONNECTING RODS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL ASSEMBLY
Oil Pickup Tube 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Seal Retainer and Starter Motor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flywheel 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALL TIMING GEAR CASE, CAMSHAFT AND GEARS 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALL ALTERNATOR 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRIGGS & STRATTON DAIHATSU 3 CYLINDER
LIQUID-COOLED DIESEL ENGINE REPAIR MANUAL (MS-1055)
INSTALL CRANKSHAFT
Install main bearings in cylinder block, Fig. 1.
NOTE: Upper bearing has an oil groove and oil
holes.
1. Install upper main bearings in their respective
saddles.
a. Be sure bearing is seated in saddle and tang in
bearing is aligned with notch in saddle.
b. Lubricate bearings with engine oil.

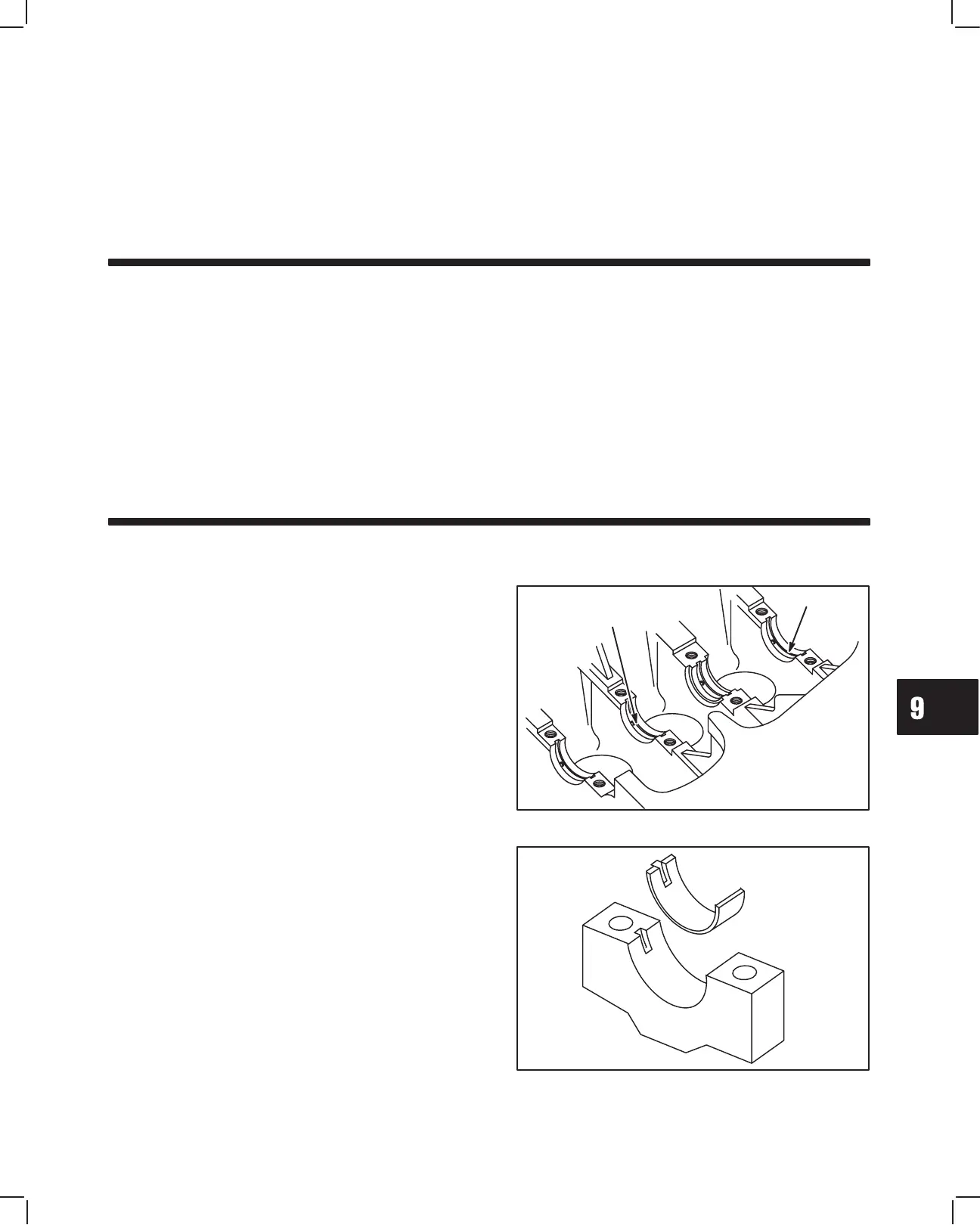

Fig. 1 – Installing Upper Main Bearings
OIL
HOLES
GROOVES
2. Install lower main bearings in bearing caps, Fig. 2.
a. Be sure bearing is seated in bearing cap and
tang in bearing is aligned with notch in bearing
cap.
b. Lubricate bearings with engine oil.
Fig. 2 – Installing Lower Main Bearings
To Next Page
