CYLINDER HEAD AND VALVES

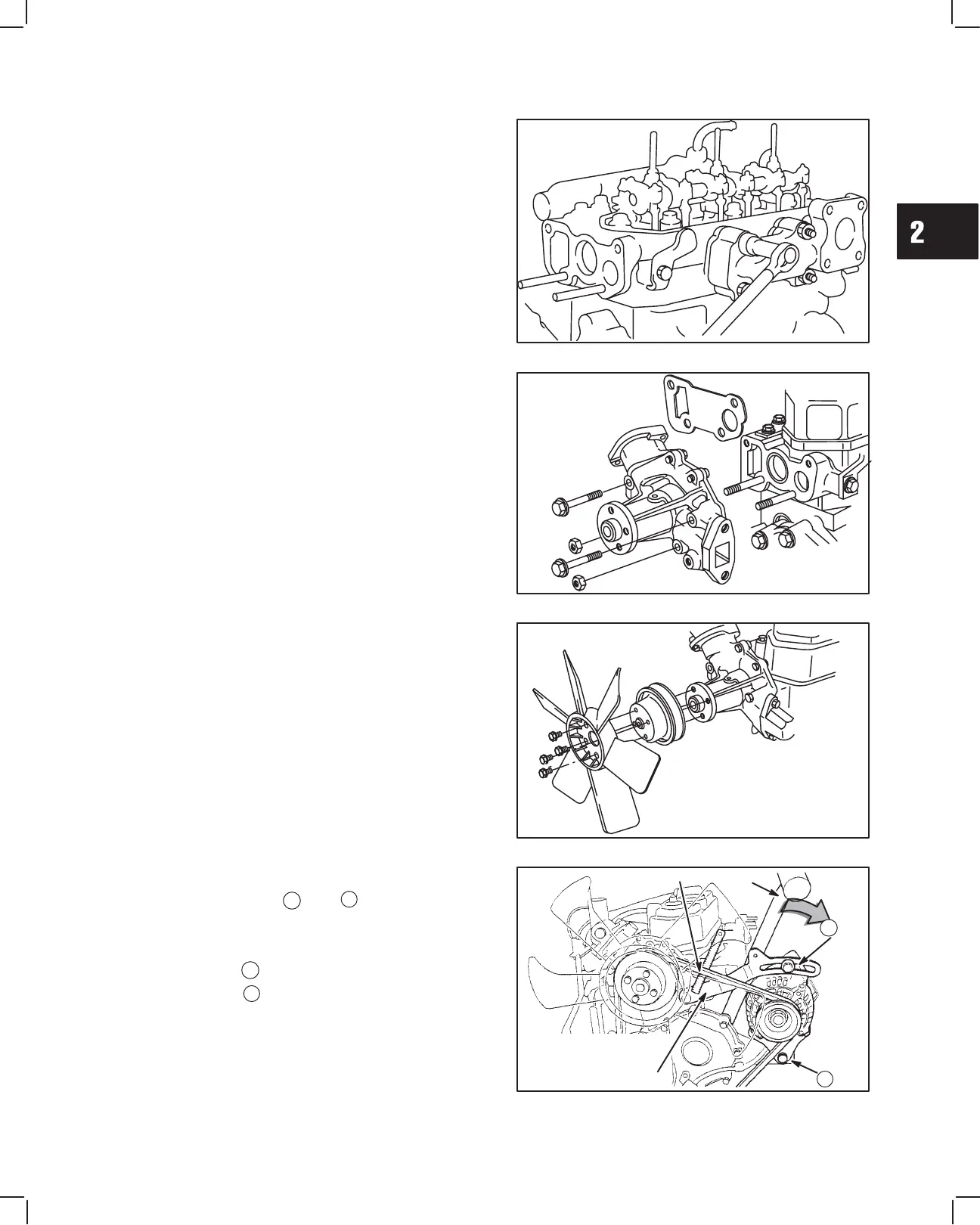

7. Install exhaust manifold with new gasket, Fig. 38.
a. Torque screws to 19.0 Nm (170 in. lbs.).
Fig. 38 – Install Exhaust Manifold
GENERAL ASSEMBLY
1. Install water pump with new gasket, Fig. 39.
a. Torque screws and nuts to 19.0 Nm (170 in.
lbs.).
Fig. 39 – Install Water Pump
2. Install water pump pulley, Fig. 40.
3. Install fan (if equipped).
a. Torque screws to 7.0 Nm (60 in. lbs.).
Fig. 40 – Install Water Pump Pulley And Fan
4. Install V-belt, Fig. 41.
5. Install alternator bolts A and B .
Belt deflection limit is 10–12 mm/10 kg
(3/8–1/2 in/22 lbs.).
a. Torque bolt A to 19.0 Nm (170 in. lbs.).
b. Torque bolt B to 61.0 Nm (45 ft. lbs.).
Fig. 41 – Adjusting V-belt
3/8 – 1/2 Inch
(10 – 12 mm)
BELT MOVEMENT
BELT
A
B
HANDLE
