FLYWHEEL AND REAR SEAL RETAINER
REMOVE REAR SEAL RETAINER

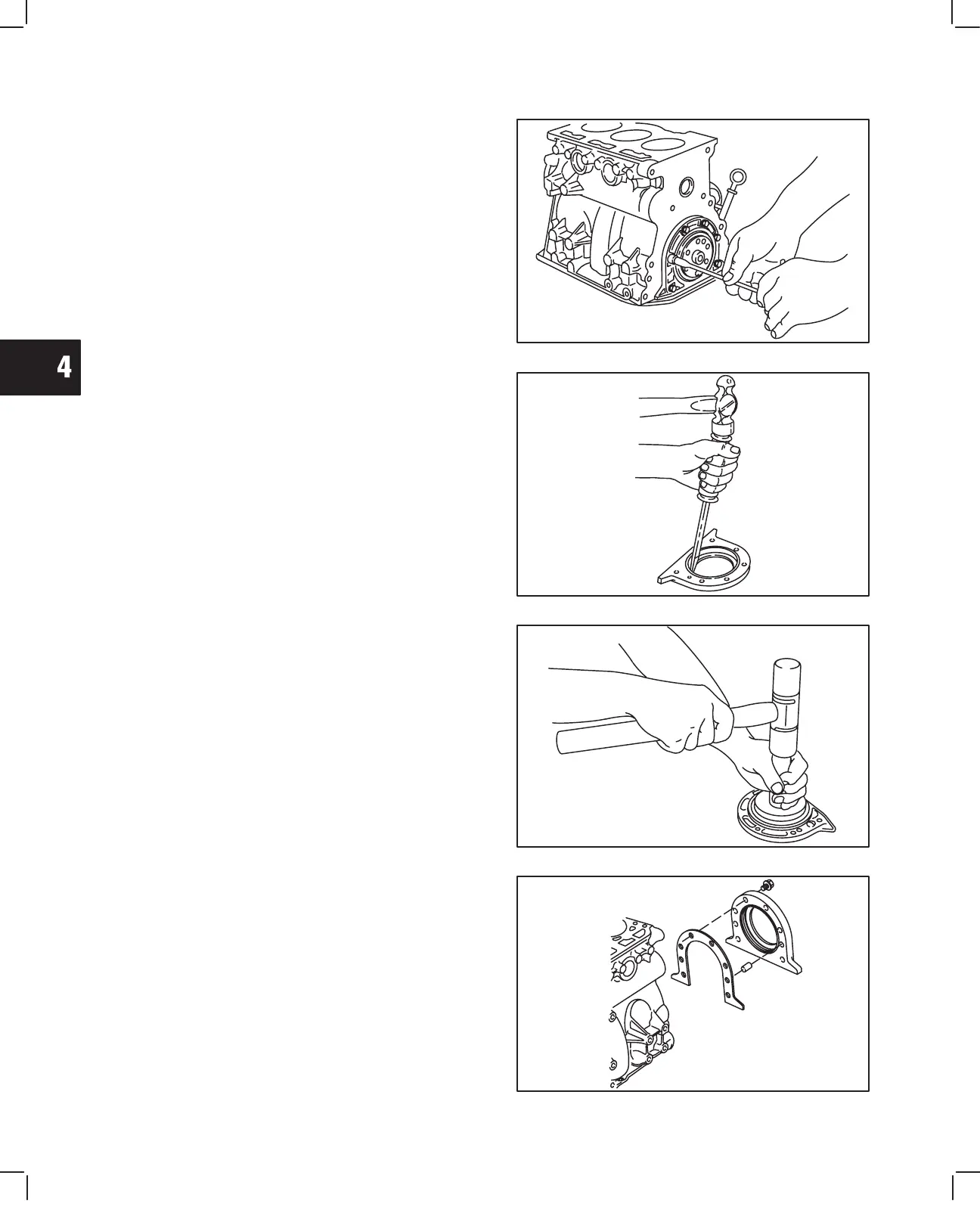

Remove rear seal retainer and discard gasket, Fig. 3.
Fig. 3 – Removing Seal Retainer
REPLACING OIL SEAL
1. Remove oil seal, Fig. 4.
Fig. 4 – Removing Oil Seal
2. Lubricate outside diameter of oil seal.
a. Using seal driver, Tool #19424 install new oil
seal, Fig. 5.
Fig. 5 – Installing Oil Seal
INSTALLING REAR SEAL RETAINER AND
FLYWHEEL
1. Install rear seal retainer with new gasket, Fig. 6.
a. Torque screws to 6.0 Nm (50 in. lbs.).
Fig. 6 – Installing Seal Retainer
GASKET
RETAINER
To Next Page
