Needle drop position adjustment for needle bar unit and rotary hook unit
1. Attach the front cover temporarily.
2. Hold down the backstitching button and the selecting button (right), and turn the power on (the buzzer must sound
four times).
3. Select pattern number [02].
4. Press the [REV] key four times to select the left base line.
5. Turn the pulley manually so that the top of the needle passes through the needle hole.
6. Loosen GIZA TITE 5X16 (2 locations).
7. Move the rotary hook unit right and left to adjust the position so that the needle top is aligned with the V-groove
in the needle hole.
8. Tighten GIZA TITE 5X16 (2 locations).

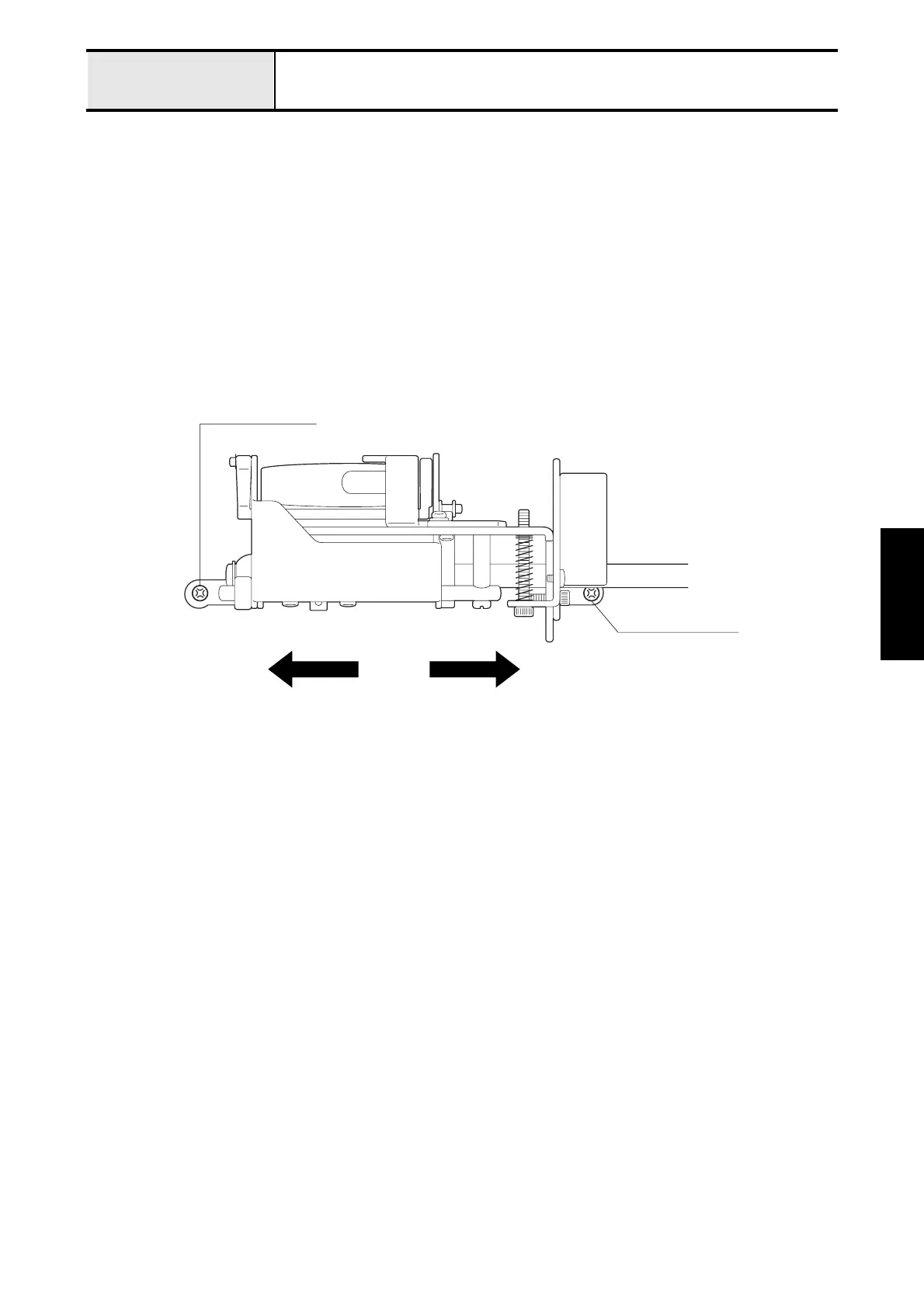

GIZA TITE 5x16
GIZA TITE 5x16
