Feed unit

Main unit

Assembly

5 Vertical lever attachment

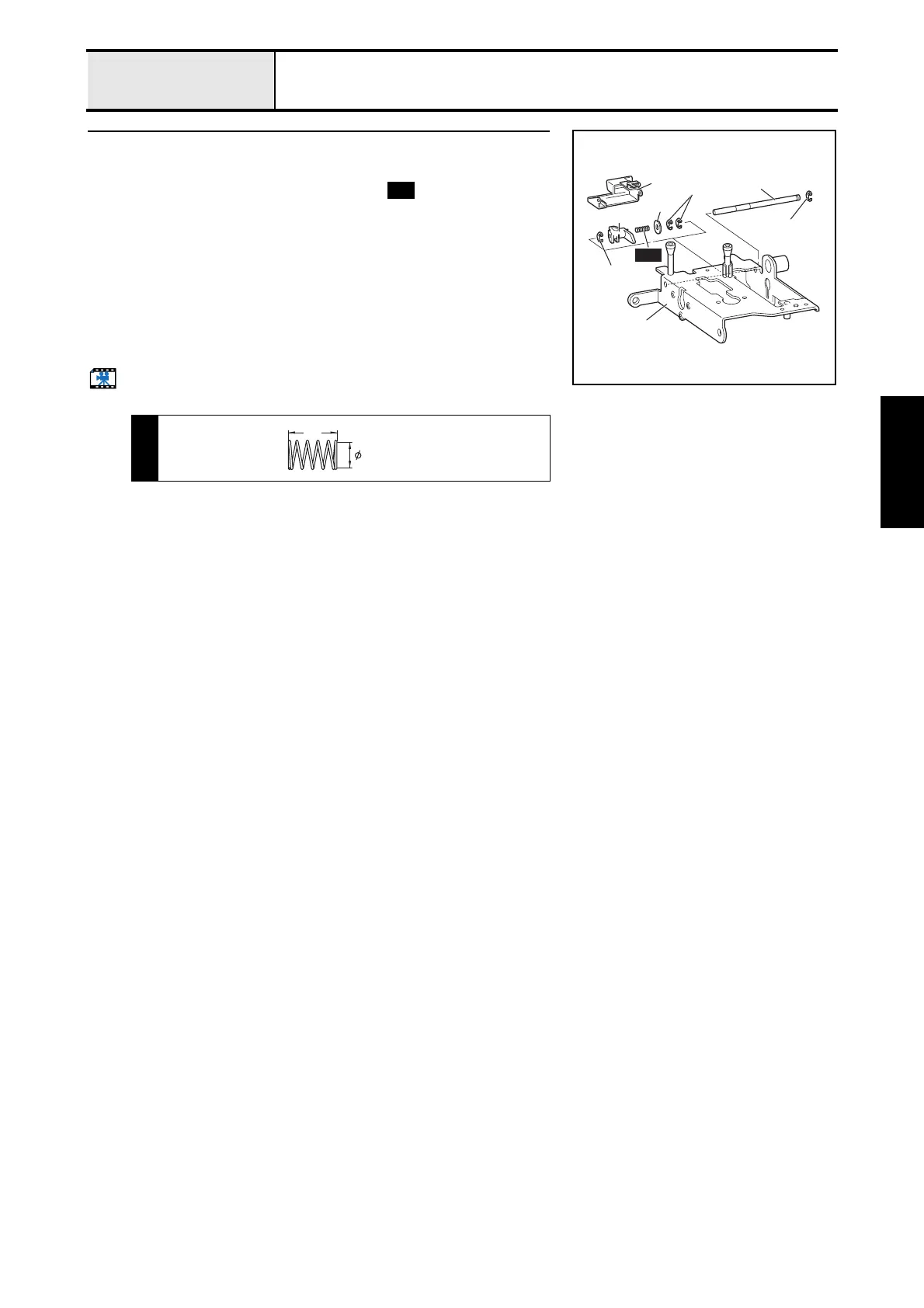

1. Insert the vertical feed shaft 1 into the inside of the drop knob 2, and

then insert the plain washer (L4) 3, spring , vertical lever 4, and

drop knob 5 in this order.

*Key point

• Determine which end of the vertical feed shaft 1 is closer to

the retaining ring and hold this end, and insert the shaft from

the left side of the base plate assembly.

2. Attach the 2 retaining rings (E3).

3. Place the groove on the vertical feed shaft 1 inside the base plate

assembly 6, and attach the retaining ring (E3).

4. Move the vertical feed shaft to the left, and attach the retaining ring (E3).

Start movie clip (CD-ROM version only)

S07

Retaining ring E3

S07

5.7

SPRING

XC2550***
