3 - 28
Main unit
Feed unit

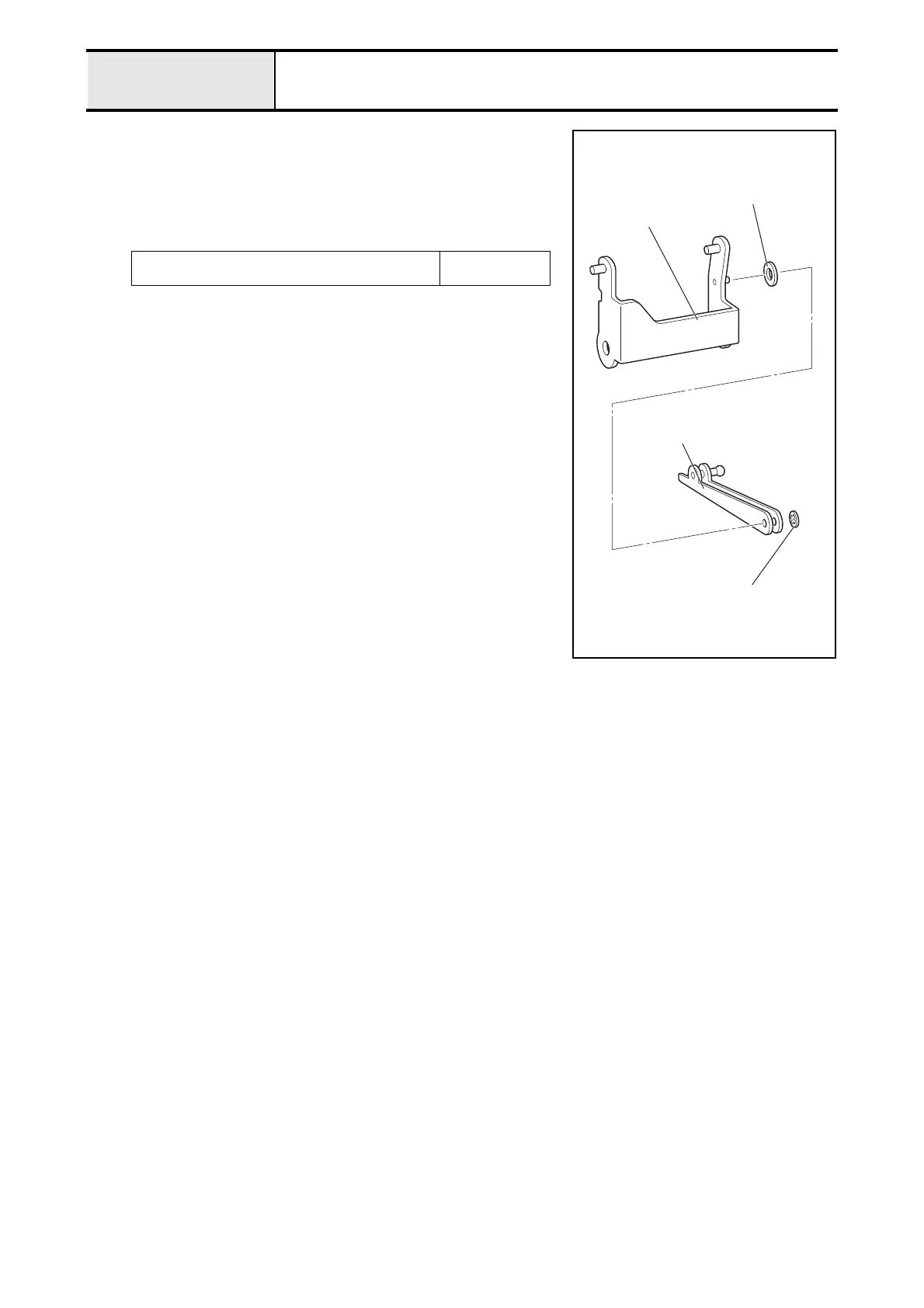

7-1 Feed arm B ASSY assembly
1. Insert the polyester slider2 into the shaft of the feed arm A assembly 1.
2. Apply a bead of MOLYKOTE EM-30L to the shaft of the feed arm A
assembly 1.
3. Attach the feed arm B assembly 3 to the shaft of the feed arm A assembly
1, and then attach the retaining ring (CSTW-3.5).
Apply MOLYKOTE EM-30L to the shaft of the feed arm
A assembly.
Bead
XC8385***
2
1
Retaining ring CSTW-3.5
3
To Next Page
