Brother BC800 - Z Zigzag Lever Assembly Attachment; Z Zigzag Lever ASSY Assembly

3 - 39
Needle-presser unit
Main unit
Assembly

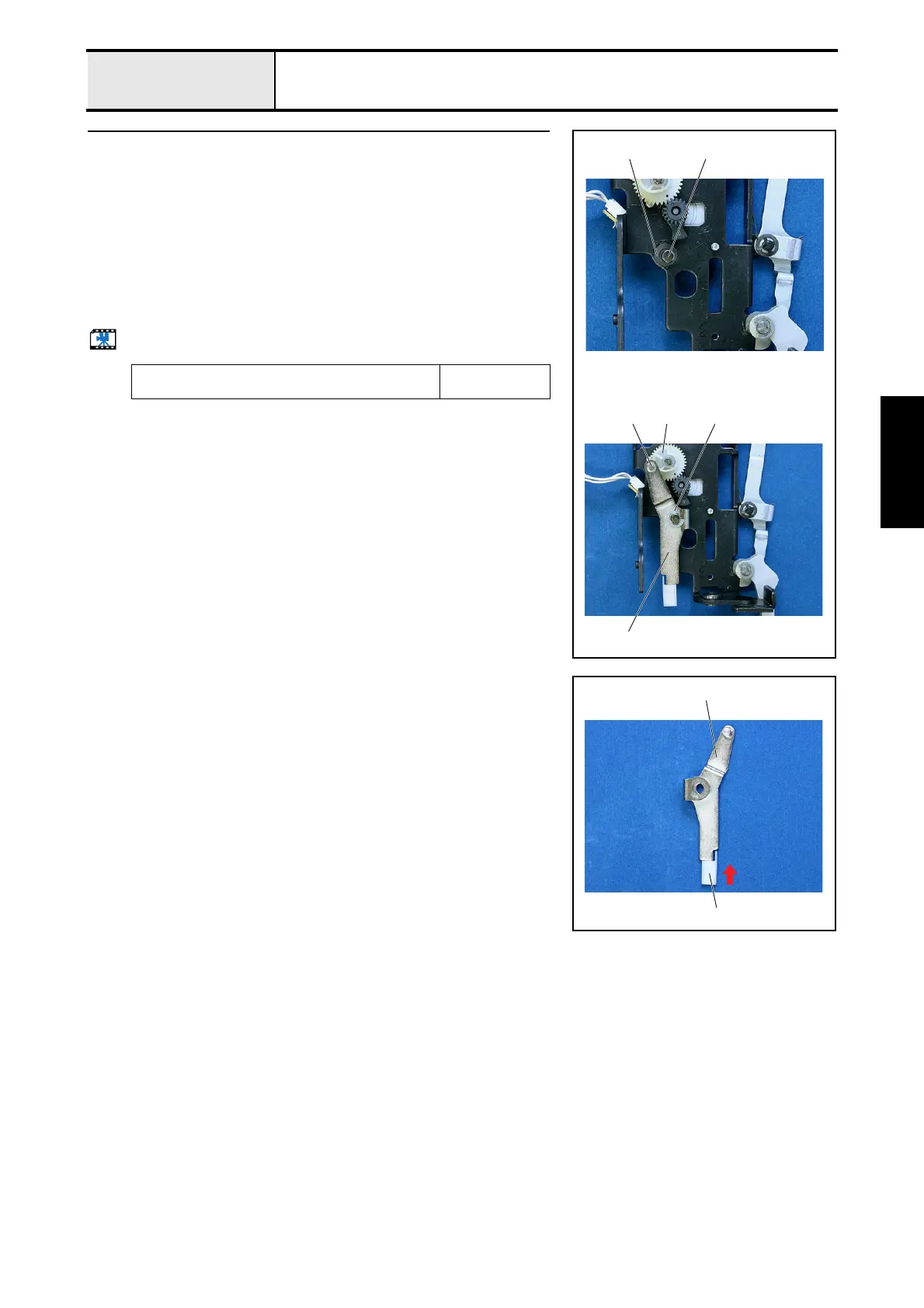

8 Z zigzag lever assembly attachment
1. Attach the polyester slider 2 to the Z zigzag lever shaft 1 of the base
holder assembly.
2. Apply a bead of EPNOC AP (N) 0 to the Z zigzag lever shaft 1 of the base
holder assembly.
3. Attach the Z zigzag lever assembly 3, and then attach the retaining ring
(E4).
*Key point
• Place the caulking shaft 4 on the left side of the Z-zigzag cam
5.
Start movie clip (CD-ROM version only)
Apply EPNOC AP (N) 0 to the Z zigzag lever shaft of
the base holder assembly.
Bead
XC8387***
2 1
3
45
Retaining ring E4
8-1 Z zigzag lever ASSY assembly
1. Attach the Z zigzag cap 2 to the Z zigzag lever 1.
1
2
