Main unit
Feed unit

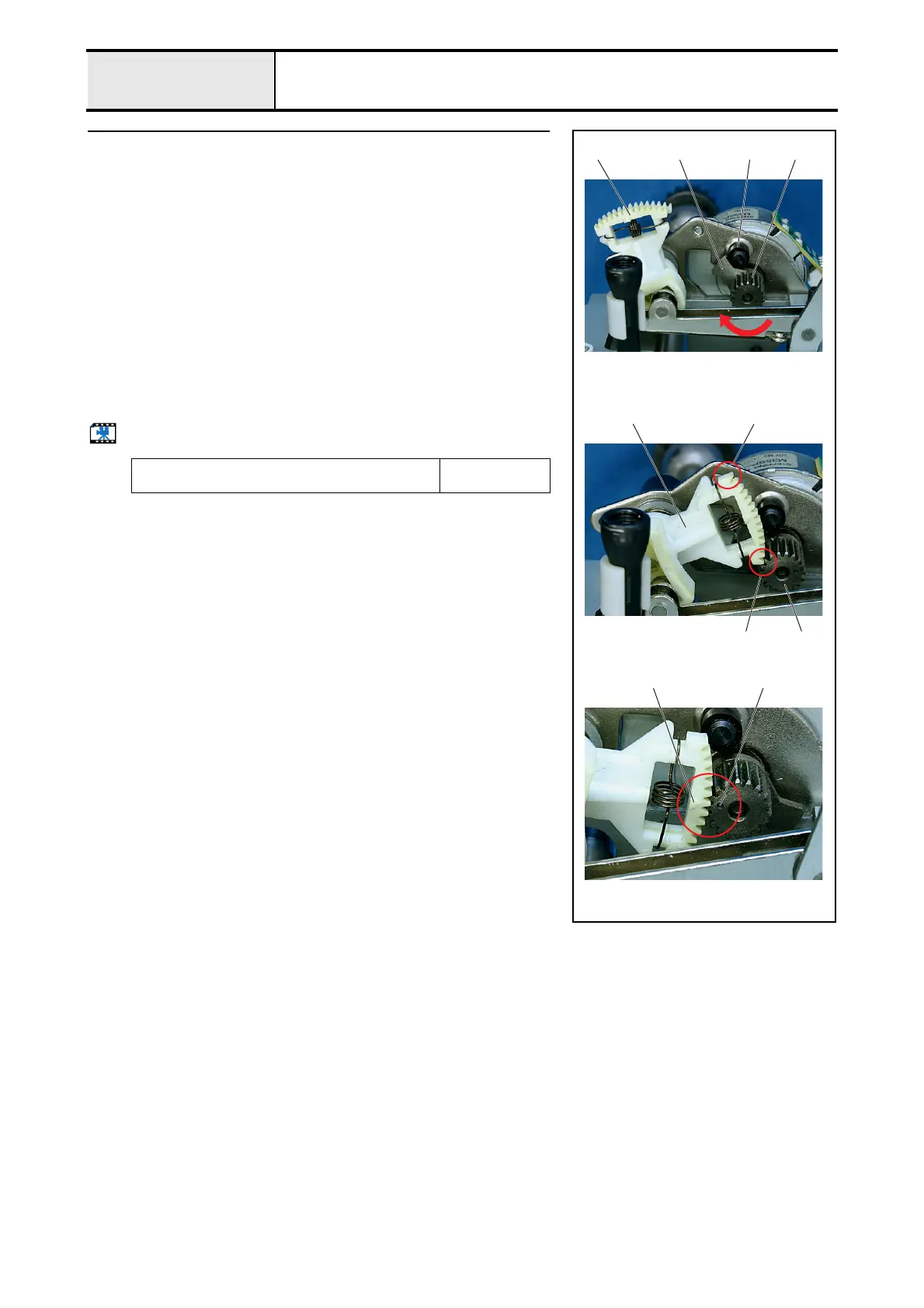

9 FPM gear engagement
1. Rotate the FPM gear 1 clockwise until the stopper 2 of the FPM gear 1
contacts the shaft 3 of the bushing B assembly .
2. Rotate the feed adjuster assembly 4 to the point 5 it contacts the FPM
gear 1.
*Key point
• Hold the F pulse motor gear with your finger to prevent it from
rotating when the feed adjuster assembly 4 contacts the F
pulse motor gear.
3. Align the feed adjuster assembly 4 with the F gear teeth 6, and engage
them with the FPM gear 1.
*Key point
• Check that the mark 7 on the feed adjuster assembly 4 is
aligned with the mark 8 on the FPM gear.
4. Apply a bead of EPNOC AP (N) 0 to the circumference of the F gear 6.
Start movie clip (CD-ROM version only)
Apply EPNOC AP (N) 0 to the entire circumference of
the F gear.
Bead
XC8387***
