Brother BC800 User Manual

3 - 41
Needle-presser unit
Main unit
Assembly

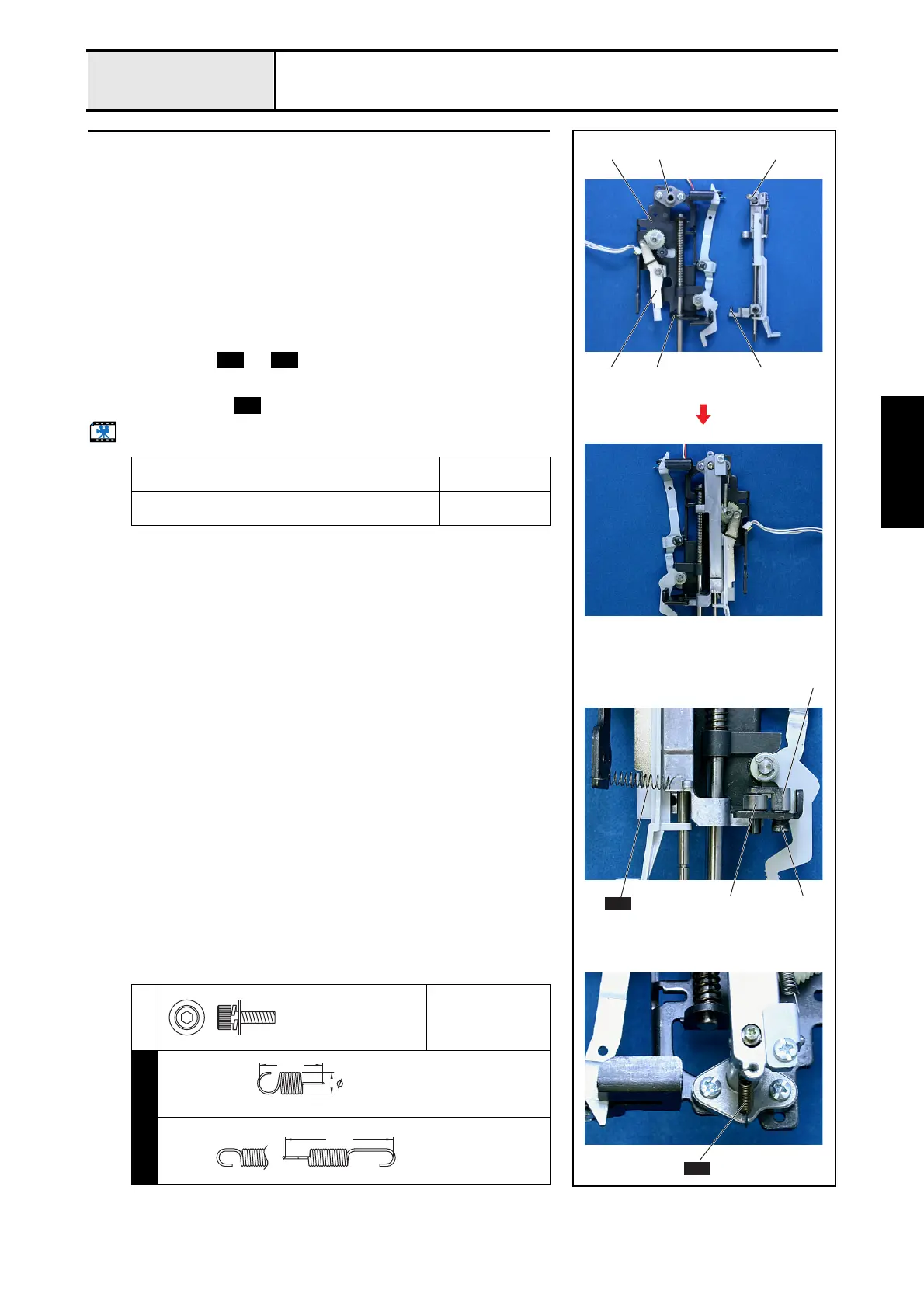

10 Needle holder assembly attachment
1. Apply 1 or 2 drops of FBK OIL RO 100 to the circumference of needle
holder shaft A 1 of the needle holder assembly.
2. Apply 1 or 2 drops of MOLYKOTE M DISPERSIOIN to the
circumference of the needle holder assembly 2.
3. Insert the needle holder assembly between the H holder attachment section
4 of the base holder 3 and the Z zigzag lever 5, and then attach the
needle holder shaft A 1 to the shaft bushing 6.
4. Insert the shaft of the needle holder assembly into the small hole on the
needle holder block 7, and then insert the shaft of the shaft assembly 8
into the hole on the needle holder block 7 and the hole on the base holder
3. Secure them with the screw 1.
5. Attach springs and .
*Key point
• Set spring with the longer hook down.
Start movie clip (CD-ROM version only)
Apply FBK OIL RO 100 to the circumference of needle
holder shaft A of the needle holder assembly.
1 - 2 drops
XC8388***
Apply MOLYKOTE M DISPERSIOIN to the
circumference of the needle holder assembly.
1 -2 drops
XC8386***
1
Torque
0.59 – 0.78 N
·m
S02
S03
163
25 4
17
8
S02
S03
S02 S03
S03
Screw
3X10
Color; Black
14.3
5
A decided hook form is the same.
SPRING-Z
XC2748***
SPRING
XC2429***
24.5
