Brother BC800 - Needle-Presser Unit Attachment

3 - 7
Main parts
Main unit
Assembly
8 Needle-presser unit attachment

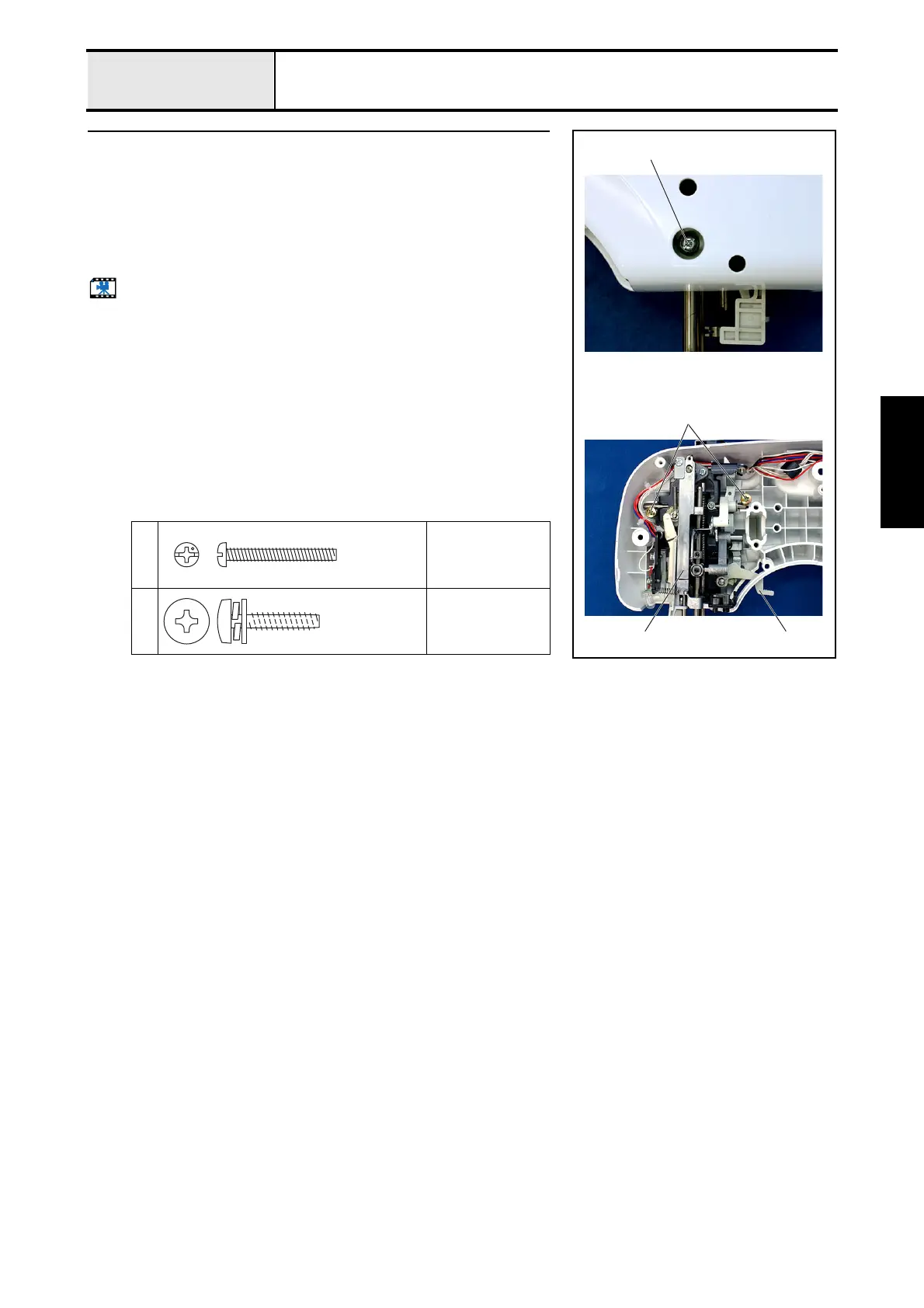

1. Attach the needle-presser unit 1 to the arm bed cover with screws 1 and
2 (1 pc. and 2 pcs. respectively).
*Key point
• Lift the presser foot lifter 2 and insert it into the hole on the
arm bed cover 3 to set the needle-presser unit 1 to the
attachment position.
Start movie clip (CD-ROM version only)
1
Torque
0.78 – 1.18 N
·m
2
Torque
1.18 – 1.57 N
·m
2
1
2
1
Screw, Pan
M3X25
Color; Silver
Giza Tite
5X20
Color; Gold
