Feed unit
Main unit

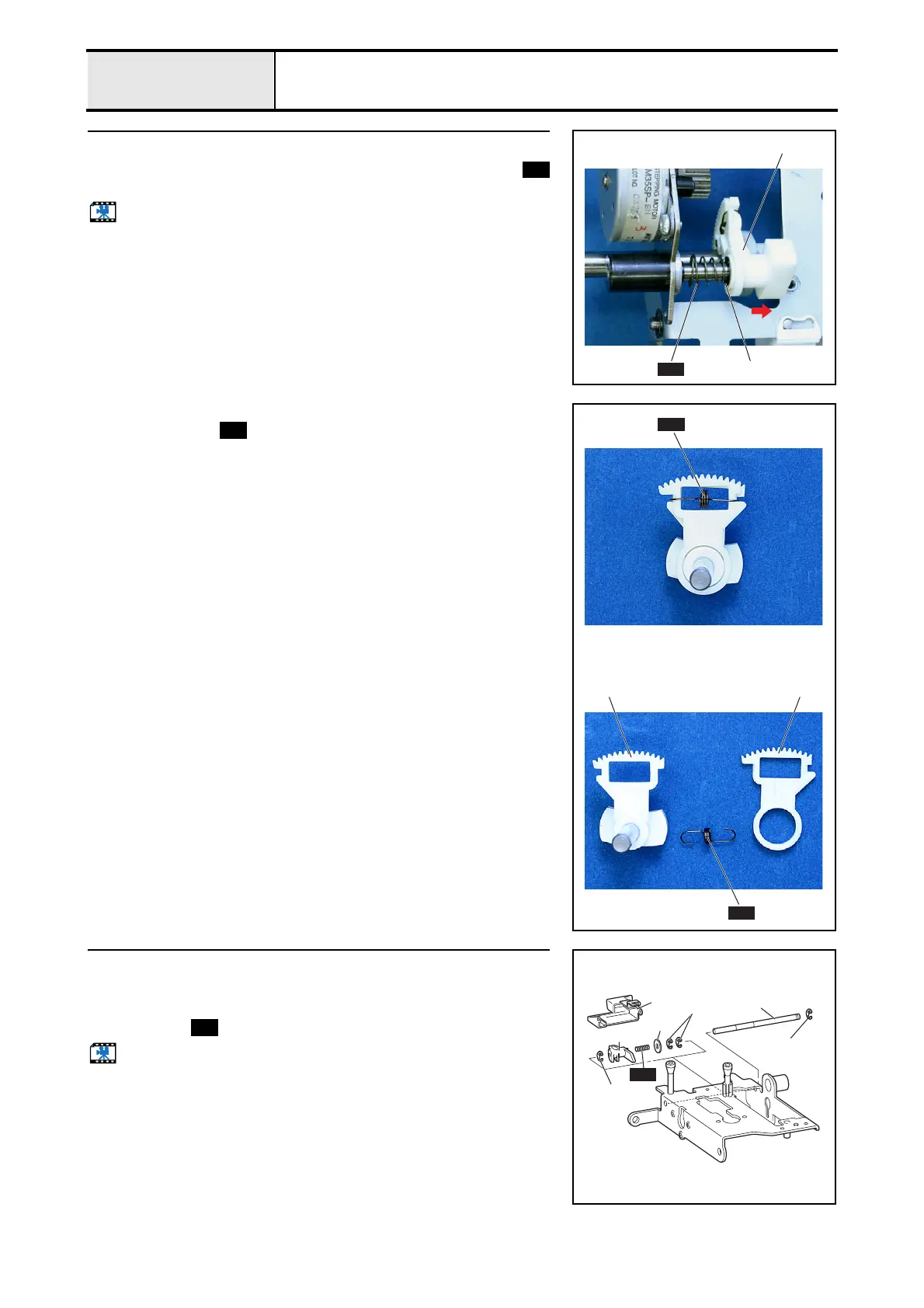

11 Feed adjuster assembly removal
1. Remove the feed adjuster assembly 1, polyester slider 2, and spring
in this order.
Start movie clip (CD-ROM version only)
1
2
S06
S06
11-1 Feed adjuster disassembly
1. Remove spring , and then remove the F gear 2 from the feed adjuster
1.
S05
12
S05
S05
12 Vertical lever removal
1. Remove the 4 retaining rings (E3).
2. Pull out the vertical feed shaft 1, and then remove the plain washer (L4)
2, spring , vertical lever 3, and drop knob 4.
Start movie clip (CD-ROM version only)
4
2
1
3
Retaining ring E3
Retaining ring E3
Retaining ring E3
S07
S07
