Brother BC800 - Needle Bar Unit

5 - 9
Adjustment
Special Instructions
of Wiring
Needle bar unit

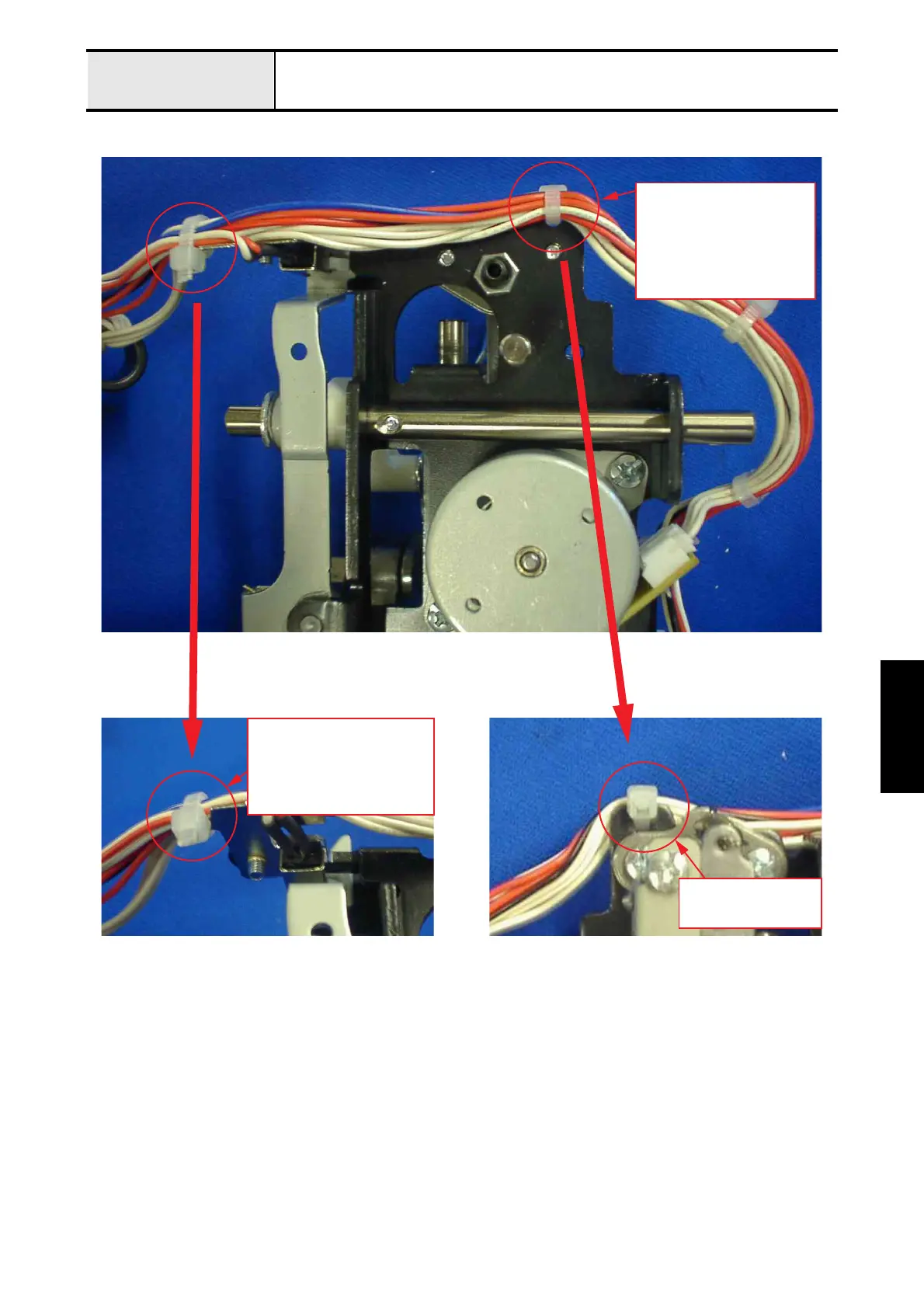

Tie the lead wires to
depressed portion of
presser switch holder
with a band.
Cut end should
face front.
Pass a band through
the hole of base
holder and tie the
lead wires with the
band.
