Brother BC800 User Manual

2 - 14
Main parts
Main unit

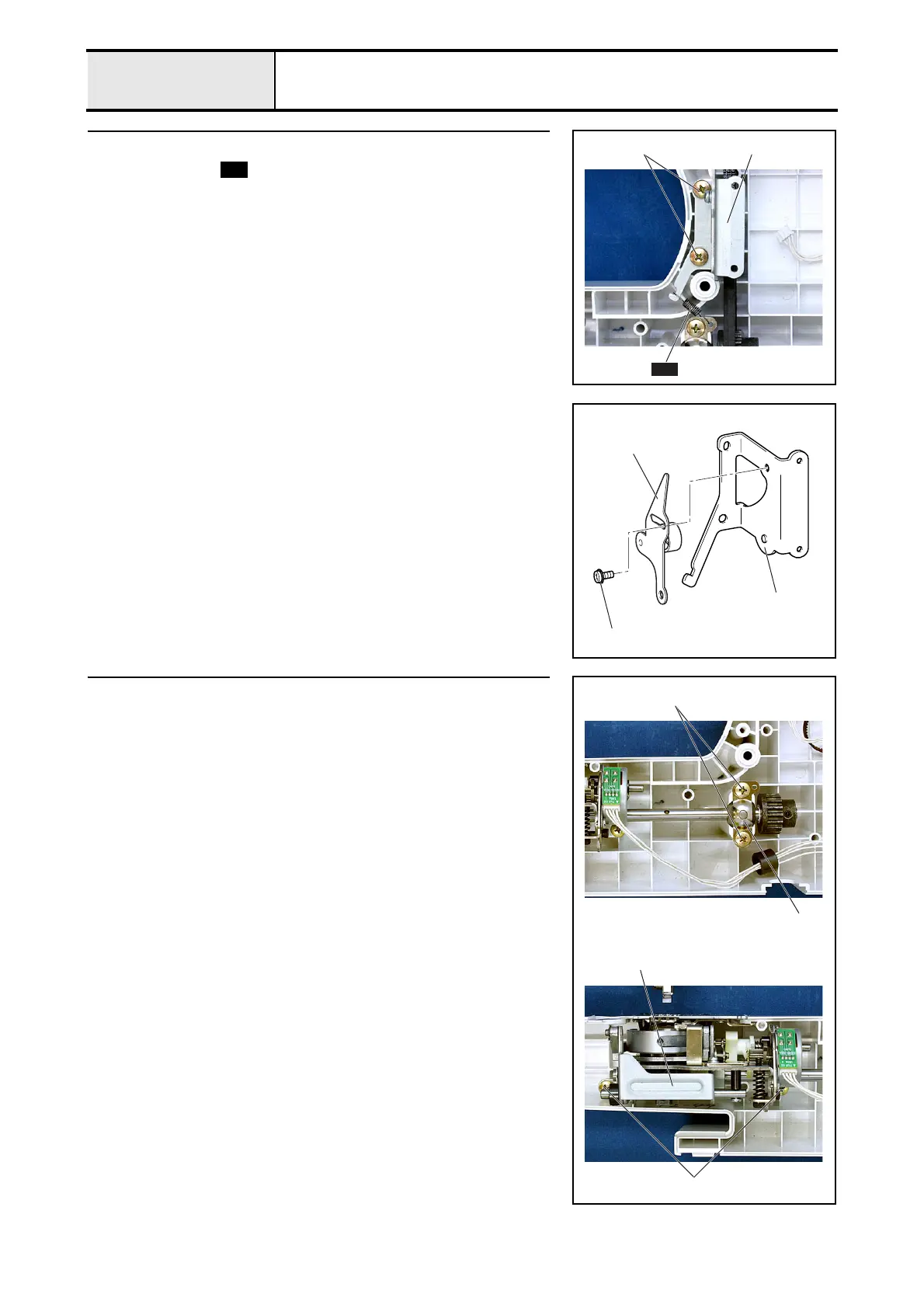

19 Tension pulley assembly removal
1. Remove spring .
2. Remove the 2 screws 1, and then remove the tension pulley assembly 1.
1 1
S09
S09
19-1 Tension pulley ASSY disassembly
1. Remove the screw 1, and then remove the tension pulley holder 2 from
the tension pulley assembly 1.
1
1
2
20 Feed unit assembly removal
1. Remove the 2 screws 1, and then remove the upper shaft bearing presser
1.
2. Remove the 2 screws 2, and then remove the feed unit assembly 2.
1
1
2
2
