3 - 37
Needle-presser unit
Main unit
Assembly

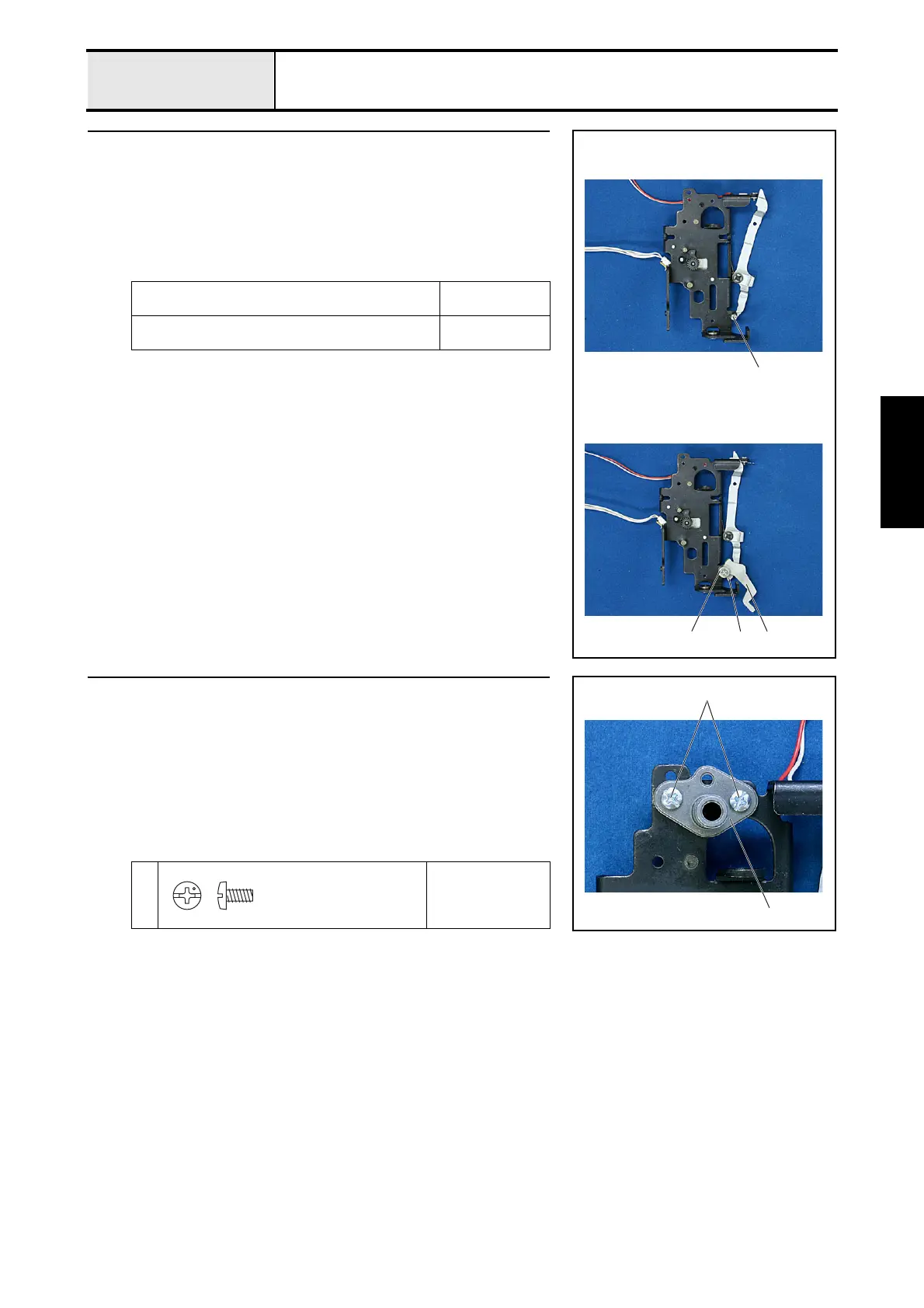

5 Presser foot lifter attachment
1. Apply a bead of EPNOC AP (N) 0 to the presser foot lifter shaft 1 of the
base holder assembly.
2. Attach the presser foot lifter 2 to the shaft 1.
3. Attach the retaining ring (E4).
4. Apply a bead of EPNOC AP (N) 0 to the cam face 3 of the pressure foot
lifter 2.
Apply EPNOC AP (N) 0 to the presser foot lifter
attachment shaft of the base holder assembly.
Bead
XC8387***
Apply EPNOC AP (N) 0 to the cam face of the pressure
foot lifter.
Bead
XC8387***
1
2
Retaining ring E4
3
6 Shaft bushing attachment
1. Attach the shaft bushing 2 to the base holder assembly 1 with the 2
screws 1.
*Key point
• Tighten the 2 screws 1 in the following order: temporarily
tighten the left screw, tighten the right screw, and then tighten
the left screw.
1
Torque
0.78 – 1.18 N
·m
1
1
Screw, Bind
M3X6
Color; Silver
