Brother BC800 User Manual

2 - 13
Main parts
Main unit
Disassembly

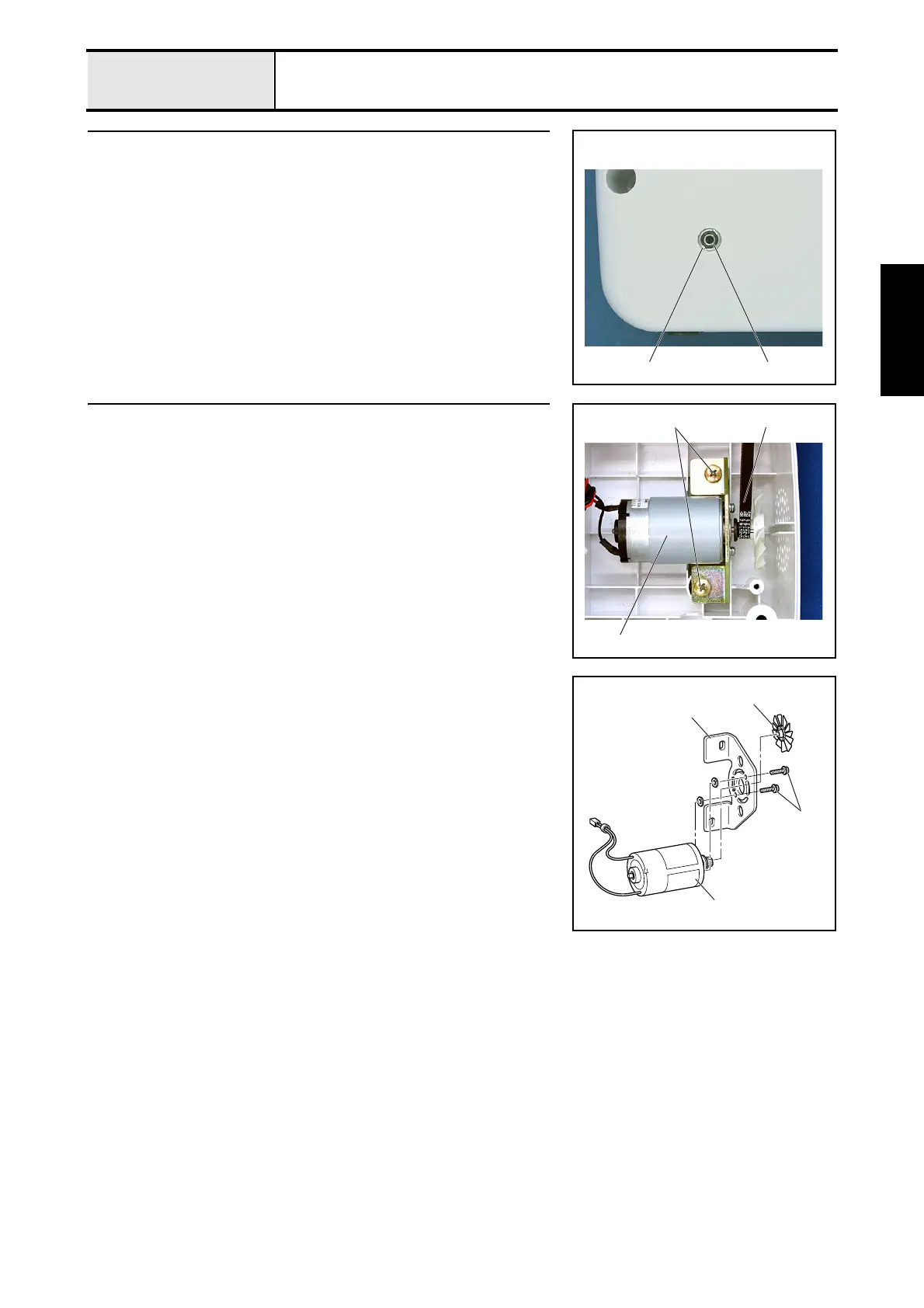

17 FC jack removal
1. Remove the jack nut 1, and then remove the FC jack assembly 2.
12
18 Main motor assembly removal
1. Remove the 2 screws 1, and then remove the main motor assembly 1.
2. Remove the motor belt 2 from the main motor assembly 1.
1 2
1
18-1 Main motor ASSY disassembly
1. Remove the motor fan 1.
2. Remove the 2 screws 1, and then remove the main motor 3 from the
motor holder 2.
1
1
2
3
