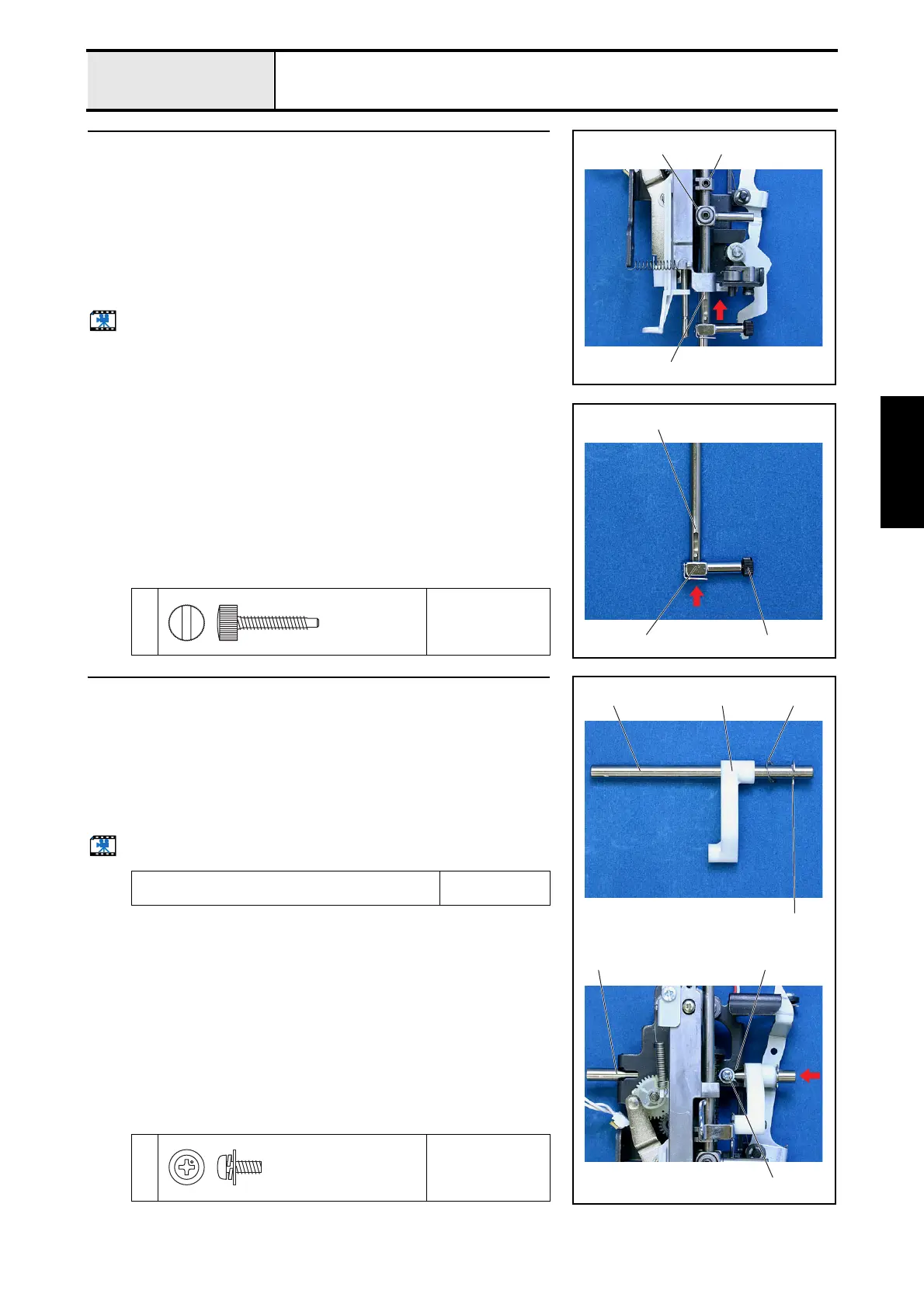

Brother BC800 - Needle Bar Assembly Attachment; Needle Bar ASSY Assembly; Thread Take-Up Lever Link Attachment

3 - 43
Needle-presser unit
Main unit
Assembly
11 Needle bar assembly attachment
1. Insert the needle bar assembly 1 from the bottom of the needle holder
assembly, and then insert the needle bar block 2 and the needle thread
block 3 through the needle bar assembly and then through to the upper
hole.
*Key point
• Insert the needle bar block 2 and the needle thread block 3
so that the shaft of the needle bar block 2 is on the right side
and the tab of the needle thread block 3 is on the left side.
Start movie clip (CD-ROM version only)
23
1
11-1 Needle bar ASSY assembly
1. Attach the presser feed holder assembly 1 to the needle bar assembly 2
with the screw 1.
*Key point
• The screw 1 should be on the right side when the groove on
the needle bar assembly 2 faces the front.
1
1
2
1
Needle Clamp Screw
Color; Black
12 Thread take-up lever link attachment
1. Insert the shaft 1 into the base holder 2, and then align the screw 1 with
the trench on the base holder 2, and tighten it temporarily.
2. Attach the thread take-up lever link 3.
3. Apply a light covering of MOLYKOTE EM-30L to the circumference of
the shaft within 10 mm of the retaining ring.
4. Insert the spring washer 4 into the shaft 1.
5. Attach the retaining ring (E5) to the groove on the shaft 1.
Start movie clip (CD-ROM version only)
Apply MOLYKOTE EM-30L to the circumference of the
shaft within 10 mm of the retaining ring.
Light covering
XC8385***
1
Torque
Hand tighten
134
Retaining ring E5
1
1
2
Screw, Pan (S/P washer)
M3X8DB
Color; Silver
