3 - 26

Feed unit

Main unit

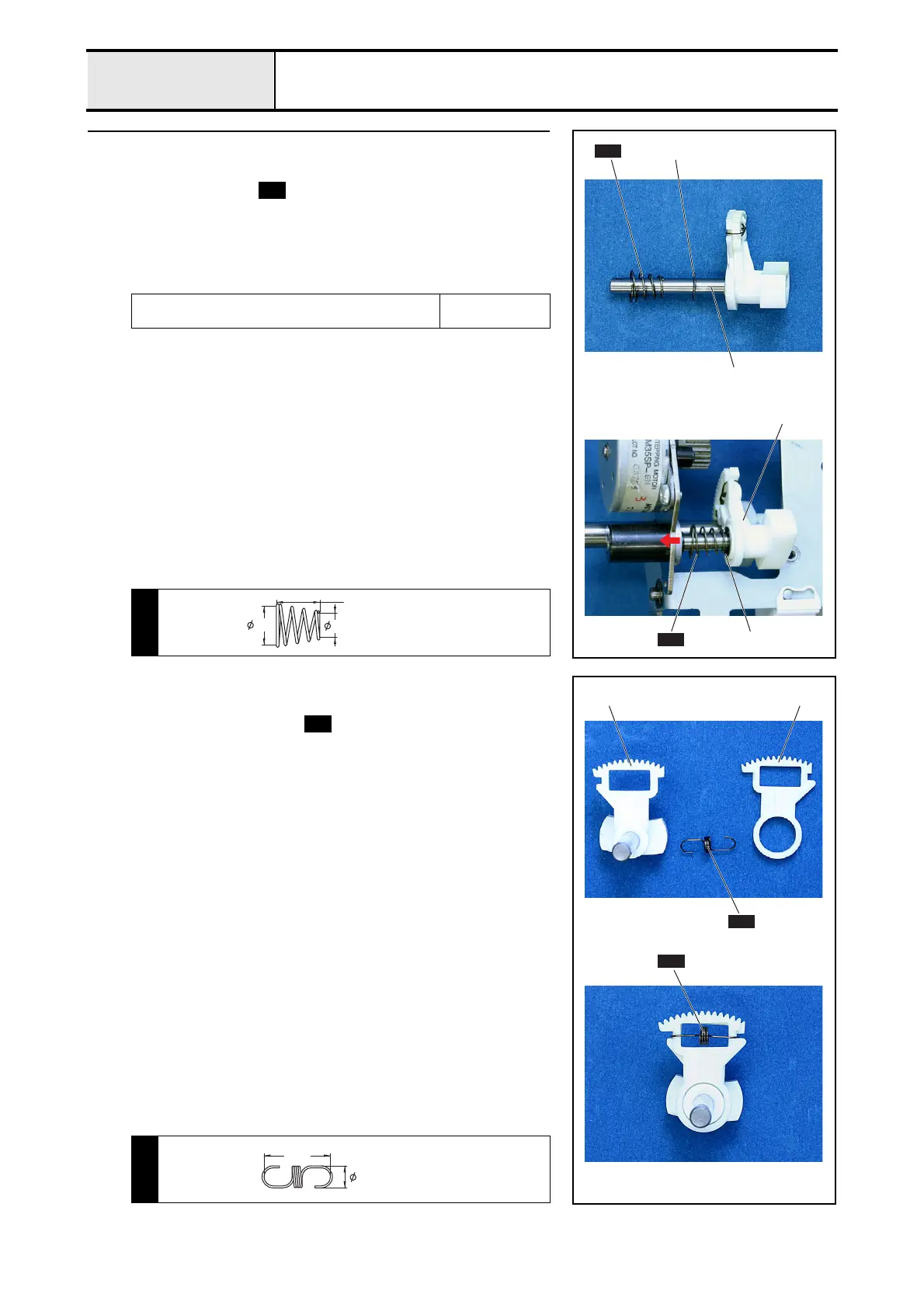

6 Feed adjuster assembly attachment

1. Insert the polyester slider 2 into the shaft of the feed adjuster assembly 1,

and then attach spring .

*Key point

• Insert the spring from the smaller end.

2. Apply 1 or 2 drops of OILER to the shaft of the feed adjuster assembly 1.

3. Attach the feed adjuster assembly 3 to the base plate assembly.

Apply OILER to the shaft of the feed adjuster assembly.

1 - 2 drops

XZ0206***

S06

SPRING

XC2531***

8.8

9.9

5.5

6-1 Feed adjuster ASSY assembly

1. Attach the flat side of the F gear 1 to the shaft of the feed adjuster 2, and

then attach the ends of spring to the F gear 1 and the feed adjuster

gear 2.

S05

15.1

SPRING

XC2530***
