Manage the Table Vacuum
The Table Vacuum System
Introduction
The printer uses vacuum to secure media to the printer table. The table is divided into multiple
vacuum zones. Manual valves are used to activate or shut down the vacuum zones. In order for
the system to work effectively, all the vacuum table holes must be covered.
Manual Vacuum Valve for Zone Control

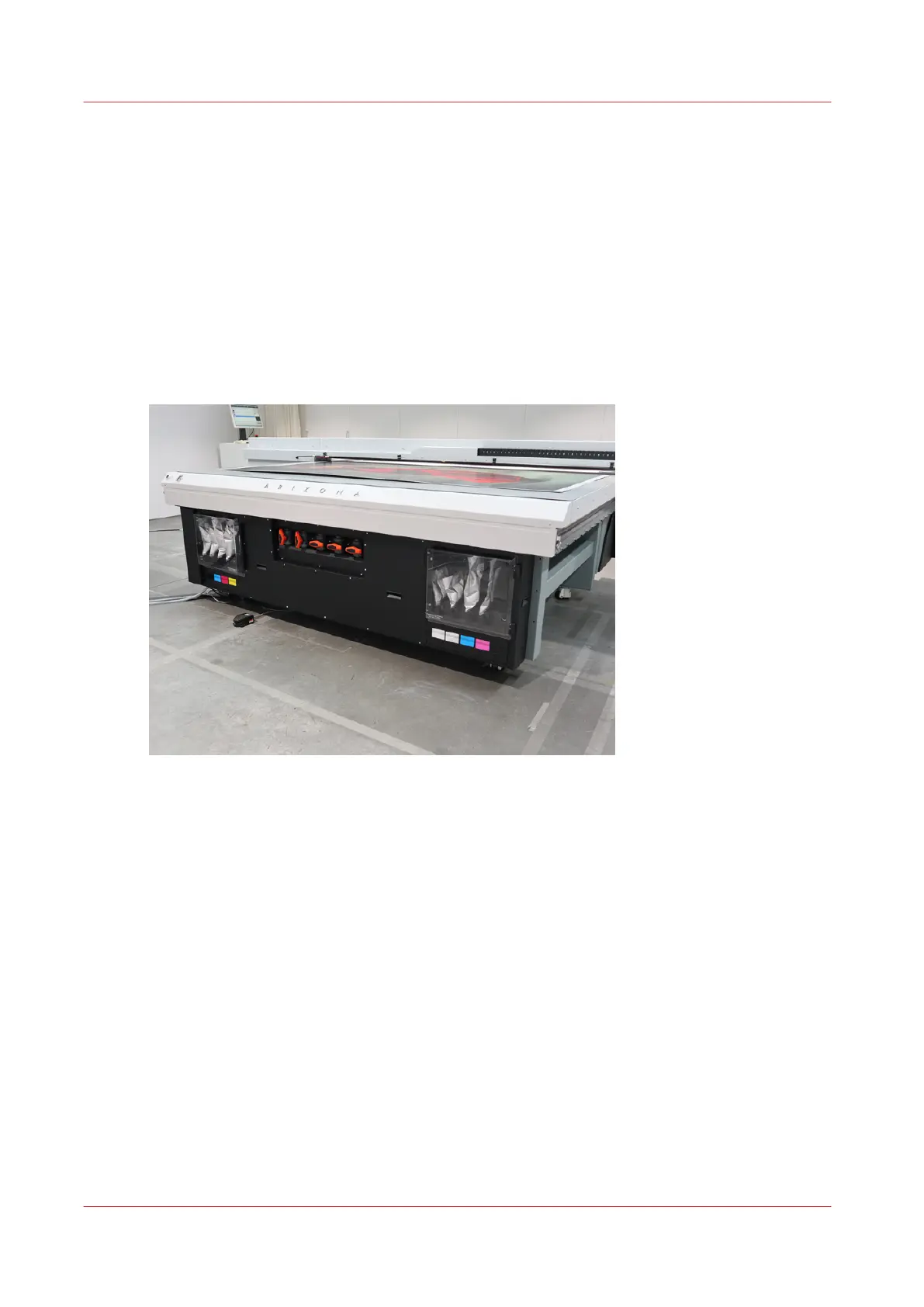

[21] Vacuum Zone Control Handles
Vacuum Zone Control Handles
The valve handles determine the state of the vacuum zones. When the handle is vertical, the zone
is open and has vacuum. To close a zone, turn the control handle a quarter turn clockwise to the
horizontal position.
Manage the Table Vacuum
68 Chapter 5 - Operate the Printer
