Hardware
Introduction
The Roll Media Option (RMO) allows printing on media that is supplied on a roll.

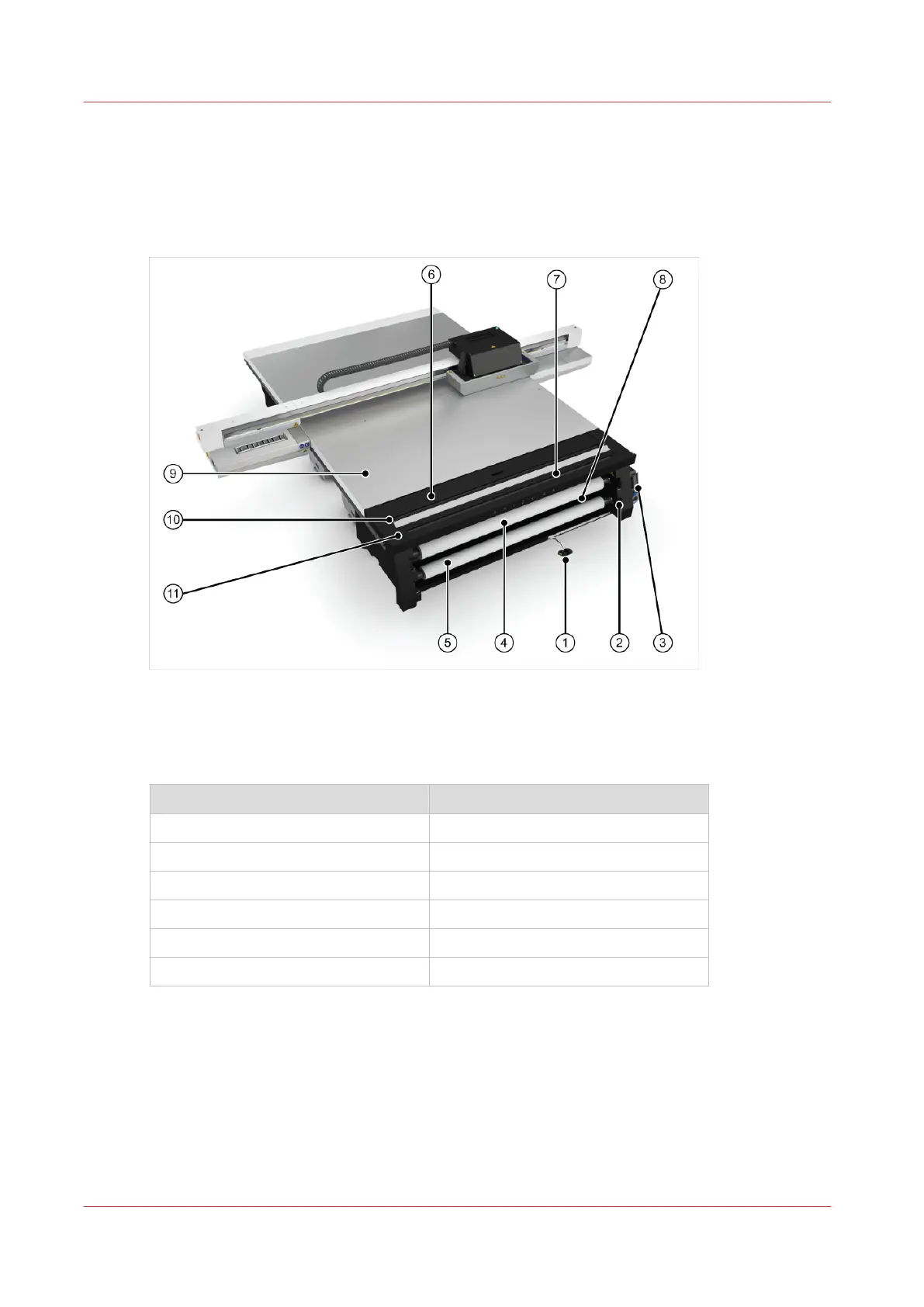

[30] Roll Media Option Components
Component Locations
Roll Media Hardware
Component Component
1) Dual Foot Pedal Switches 7) Media Cut Guide
2) Media Drive Couplers 8) Media Tension Bar
3) Accessory Holder 9) Vacuum Platen
4) Take-up Media Shaft 10) Capstan
5) Supply Media Shaft 11) Gimbal
6) Media Access Door
Hardware Function table
The Roll Media Option consists of a supply media drive, media tension bar, capstan roller,
vacuum platen, media gimbal, and a take-up media drive. This system accurately advances the
roll of media during printing. The roll media is positioned with a high resolution media encoder.
This ensures accurate and high quality printing.
Hardware
94 Chapter 7 - Roll Media Option
