Daikin VRV III User Manual

ED34-862 Accessories
FXCQ-M 139
3

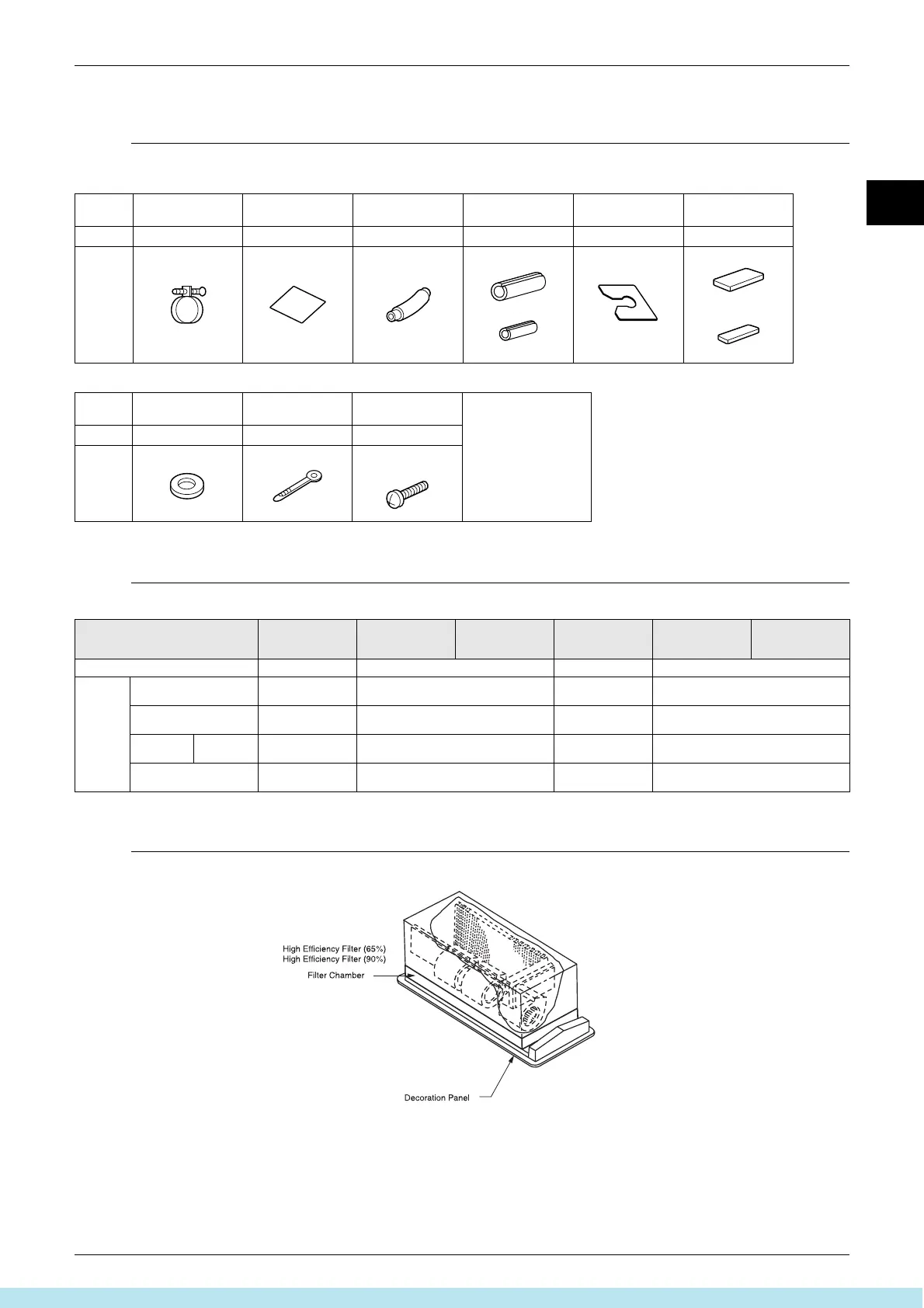

10.Accessories
Standard Accessories
FXCQ20~125M
• Screws for fixing panels are attached to decoration panel.
3PR01906-7R
Optional Accessories (For Unit)
Note:
∗1. Filter chamber is required if installing high efficiency filter.
Optional Accessories (For Controls) : Refer to P.645
Name Metal clamp
Paper pattern for
installation
Drain hose Insulation for fitting
Washer fixing
plate
Sealing pad
Quantity 1 pc. 1 pc. 1 pc. 1 each 4 pcs. 1 each
Shape
for gas pipe
for liquid pipe
Large
Small
Name
Washer for
hanging bracket
Clamp Screws (M5)
(Other)
• Operation manual
• Installation manual
Quantity 8 pcs. 8 pcs. 4 pcs.
Shape
For paper pattern
for installation
Type FXCQ20M
FXCQ25M
FXCQ32M
FXCQ40M FXCQ50M FXCQ63M FXCQ80M FXCQ125M
Item
Decoration panel BYBC32G-W1 BYBC50G-W1 BYBC63G-W1 BYBC125G-W1
Filter
related
∗1 High efficiency filter
65%
KAFJ532G36 KAFJ532G56 KAFJ532G80 KAFJ532G160
∗1 High efficiency filter
90%
KAFJ533G36 KAFJ533G56 KAFJ533G80 KAFJ533G160
Filter
chamber
Bottom
suction
KDDFJ53G36 KDDFJ53G56 KDDFJ53G80 KDDFJ53G160
Long life replacement
filter
KAFJ531G36 KAFJ531G56 KAFJ531G80 KAFJ531G160
3D035093C
