Daikin VRV III User Manual

Fan Performances ED34-862
220 FXSQ-M
8. Fan Performances
8.1 50Hz
Note:
1. The remote controller can be used to switch between “high” and “low”.
2. The air flow is set to “standard” before leaving the factory. It is possible to switch between “standard ESP” and
“high ESP” by changing the terminals in the indoor unit electrical box.
3. The external static pressure indicates the characteristics of the fan when a suction panel (optional accessory) and
a canvas for the suction panel (optional accessory) are incorporated into the main unit (with a long-life filter).

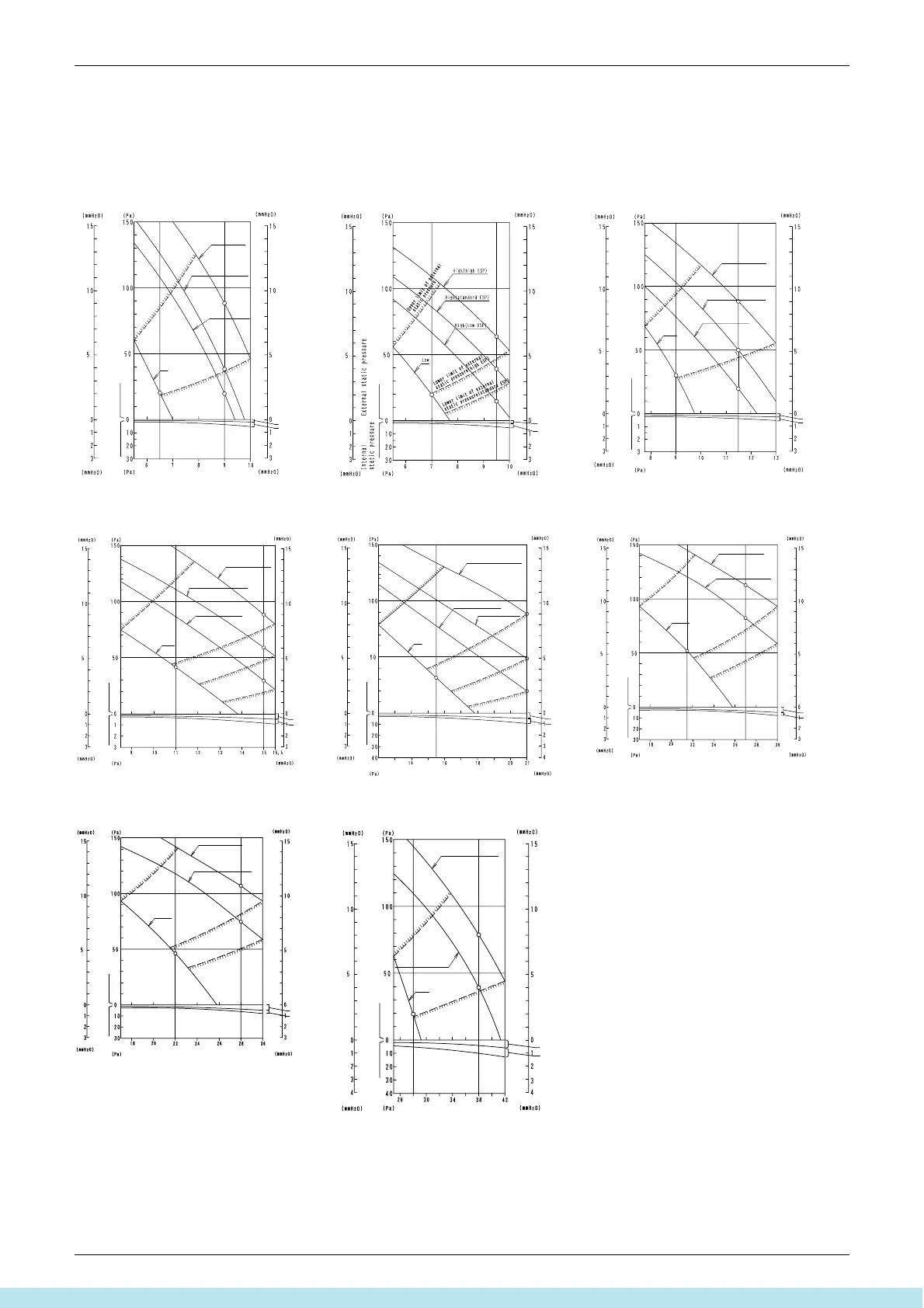

FXSQ20 · 25M FXSQ32M FXSQ40M
FXSQ50M FXSQ63M FXSQ80M
FXSQ100M FXSQ125M
C : 3D036959-5
Upper limit of external
static pressure
High (high ESP)
High (standard ESP)
High (Low ESP)
Low
Lower limit of external static
pressure
Air flow (m
3
/min)
Intake panel
Long life filter
Internal
static pressure
External static pressure
C : 3D036960-5
Air flow (m
3
/min)
Intake panel
Long life filter
C : 3D036961-5
Upper limit of external
static pressure
High (high ESP)
High (Low ESP)
Low
Lower limit of external
static pressure (high ESP)
Intake panel
Long life
filter
High (standard ESP)
Air flow (m
3
/min)
Internal
static pressure
External static pressure
C : 3D036962-5
Upper limit of external
static pressure
High (high ESP)
High (standard ESP)
High (Low ESP)
Low
Lower limit of external
static pressure (high ESP)
Lower limit of external
static pressure (standard ESP)
Lower limit of external
static pressure (Low ESP)
Intake panel
Long life
filter
Air flow (m
3
/min)
Internal static pressure
External static pressure
C : 3D036963-5
Upper limit of external
static pressure
High (standard ESP)
High (Low ESP)
High (high ESP)
Low
Lower limit of external
static pressure (high ESP)
Lower limit of external
static pressure (standard ESP)
Lower limit of external
static pressure (Low ESP)
Intake panel
Long life
filter
Air flow (m
3
/min)
Internal static pressure
External static pressure
C : 3D036964-5
Upper limit of external
static pressure
High(standard ESP)
Lower limit of external
static pressure (high ESP)
Lower limit of external
static pressure (standard ESP)
Low
Intake panel
Long life filter
High(high ESP)
Air flow (m
3
/min)
Internal
static pressure
External static pressure
C : 3D036965-5
Upper limit of external
static pressure
High(standard ESP)
Low
Lower limit of external
static pressure (high ESP)
Lower limit of external
static pressure (standard ESP)
Intake panel
Long life filter
High(high ESP)
Air flow (m
3
/min)
Internal
static pressure
External static pressure
C : 3D036966-5
Upper limit of external
static pressure
High (high ESP)
High (standard ESP)
Low
Lower limit of external
static pressure (high ESP)
Intake panel
Long life filter
Air flow (m
3
/min)
Internal
static pressure
External static pressure
