ED34-862 Accessories
FXMQ-MF 449
13

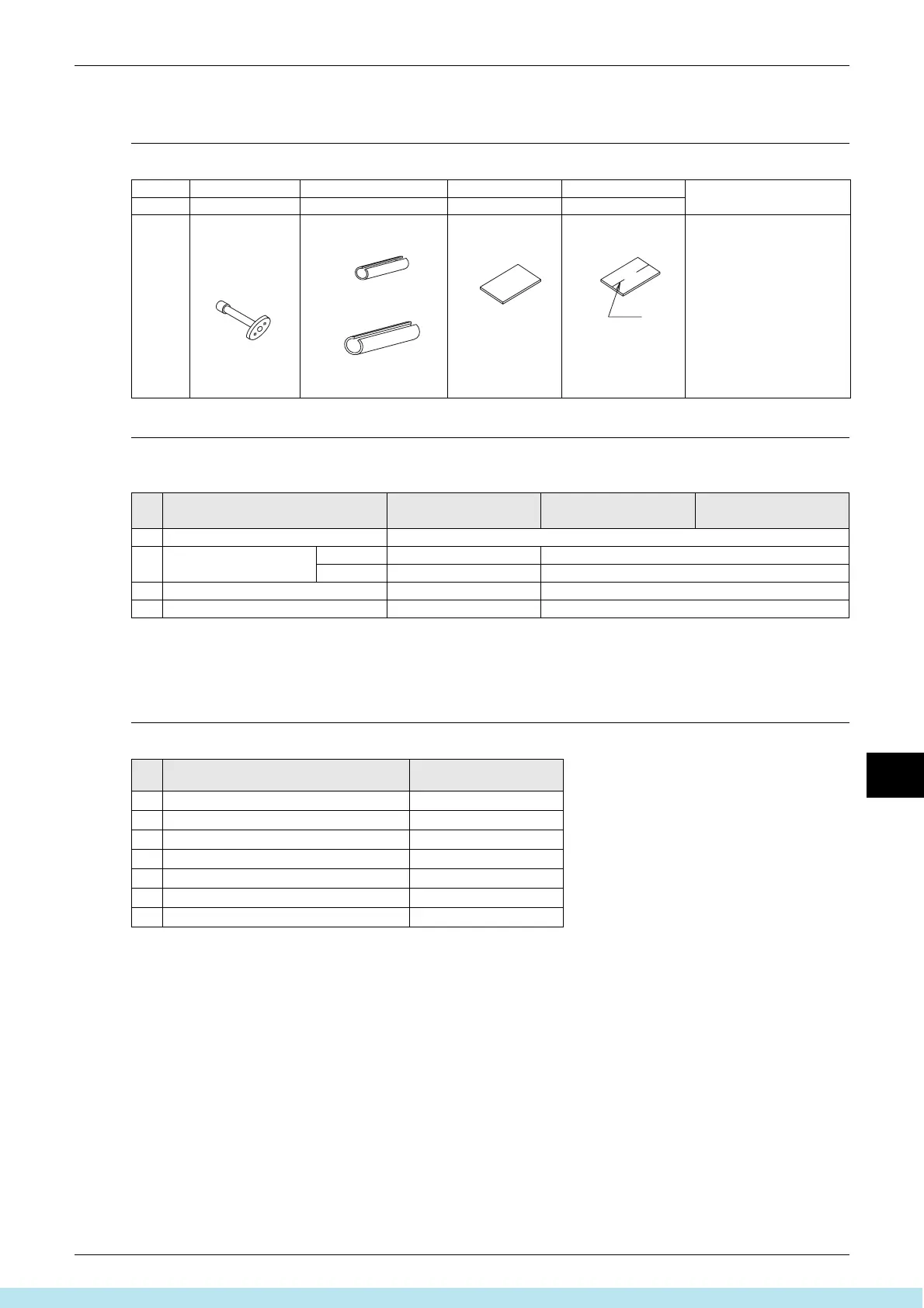

12.Accessories
Standard Accessories
3P086156-11Q-2
Optional Accessories (For Unit)
3D046270
Notes:
★1.Filter chamber has a suction-type flange. (Main unit does not have.)
· Dimensions and weight of the equipment may vary depending on the options used.
· Some options may not be usable due to the equipment installation conditions, so please confirm prior to ordering.
· Some options may not be used in combination.
· Operating sound may increase somewhat depending on the options used.
Optional Accessories (For Operation Controls)
Name Attached pipe Insulation for fitting Sealing pad Sealing pad
Others
Quantity 1 1 each 1 4
Shape
6) Spring washer (M10)
(2 pieces only for FXMQ200 ·
250MFV1)
7) Hexagon head bolt (M10×40)
(2 pieces only for FXMQ200 ·
250MFV1)
8) Screws for flange connection
(M5) (16 pieces for
FXMQ125MFV1, 28 pieces
for FXMQ200 250MFV1)
9) Washers (8 pieces)
10)Clamps (6 pieces)
11)Installation manual
12)Operation manual
No.
Type
FXMQ125MFV1 FXMQ200MFV1 FXMQ250MFV1
Item
1 Drain pump kit KDU30L250VE
2 High efficiency filter
65% KAFJ372L140 KAFJ372L280
90% KAFJ373L140 KAFJ373L280
3 Filter chamber ★1 KDJ3705L140 KDJ3705L280
4 Long life replacement filter KAFJ371L140 KAFJ371L280
No.
Type
Item
FXMQ-MF
1 Wired remote controller BRC1C62
2 Central remote controller DCS302CA61
3 Unified ON/OFF controller DCS301BA61
4 Schedule timer DST301BA61
5 Wiring adaptor for electrical appendices (1) KRP2A61
6 Wiring adaptor for electrical appendices (2) KRP4AA51
7 Adaptor for wiring KRP1B61
1)
(Only FXMQ200 ·
250MFV1)
2) for liquid pipe
Inside diameter φ25.4
3) for gas pipe
Inside diameter φ31.8
(Only FXMQ125MFV1)
4)
(Only FXMQ125MFV1)
5)
Slit
