Daikin VRV III User Manual

ED34-862 Installation
FXAQ-MA 343
10

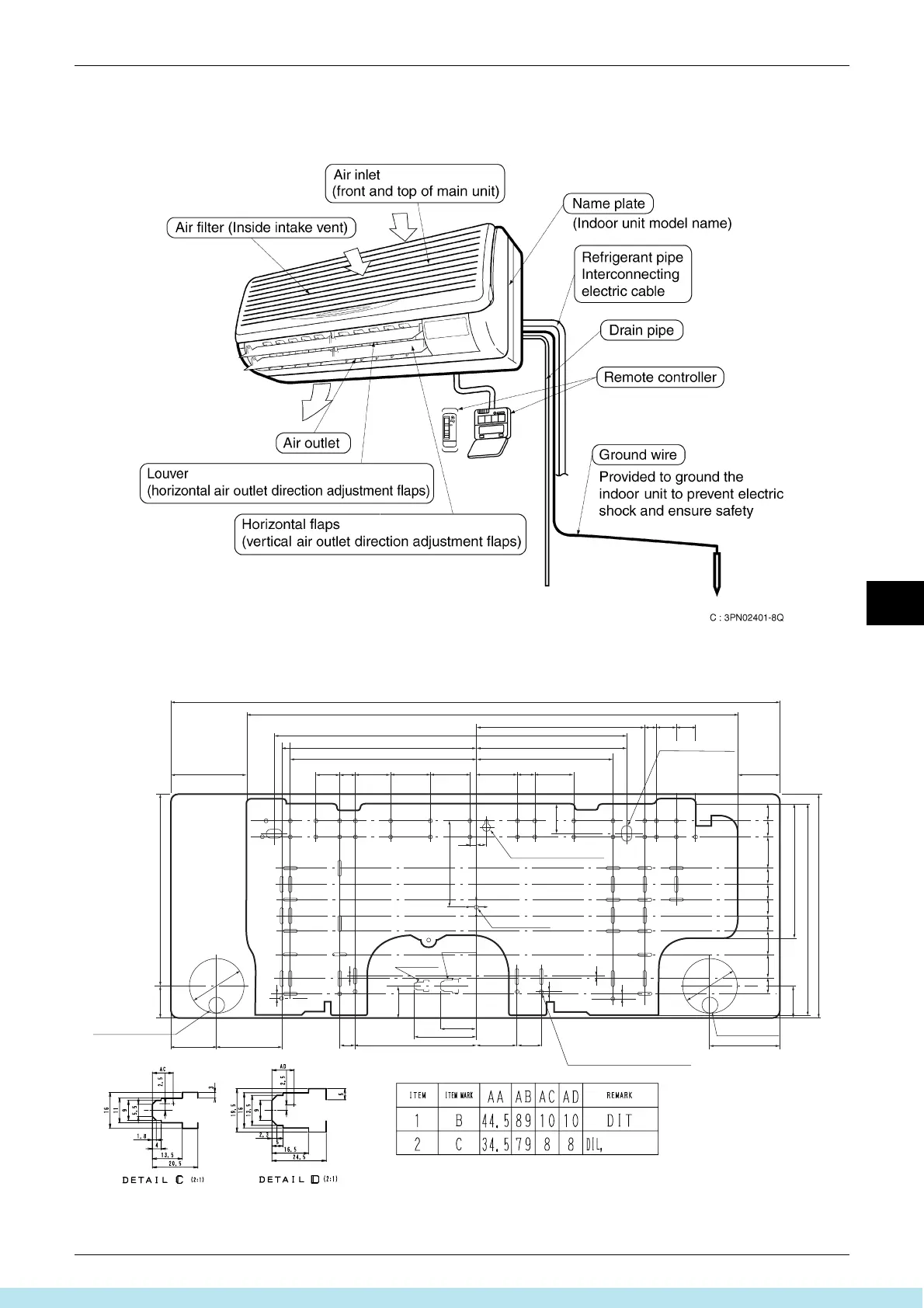

9. Installation
Installation Example
Recommended mounting-plate retention spots and Dimensions
20 · 25 · 32 class
Liquid pipe
Gas pipe
Center of unit
When fixing a unit with screw fix
the mounting plate with screw
30107 62.520
625
795
450
245.5
235.5
194.5
217.5 15 25
2-12
×
20(long hole)
25
21.5
171
268
290
2040202020
66
3
3
3
2020
44.5
98
3030
177
50 50 54 23 50
37.5
44.5
2654
153
20
75
φ
65
φ
65
60
44.5
89
44.5 245.5
109
44.5
13
8.5
Hole for concrete wall
Bolt projection length
from wall surface should
be less than 20mm
(Bolt size M10)
Temporary hole for fixing
outline of unit
outline of mounting plate
Drain hose position
Liquid pipe Gas pipe
Shanghai ARAI
Drain hose position
C : 1P079690-1C
Все каталоги и инструкции здесь: http://splitoff.ru/tehn-doc.html

Daikin VRV III Specifications

General

Type	VRV (Variable Refrigerant Volume)
Refrigerant	R410A
Energy Efficiency	High
Control	Centralized control systems, individual zone control
Operating Temperature Range (Cooling)	-5°C to 46°C
Indoor Unit Types	Ceiling Cassette, Ceiling Suspended, Wall Mounted, Floor Standing, Ducted
Power Supply	380-415V, 50/60Hz, 3-Phase (depending on model)
