Installation ED34-862
436 FXMQ-MF
11.Installation

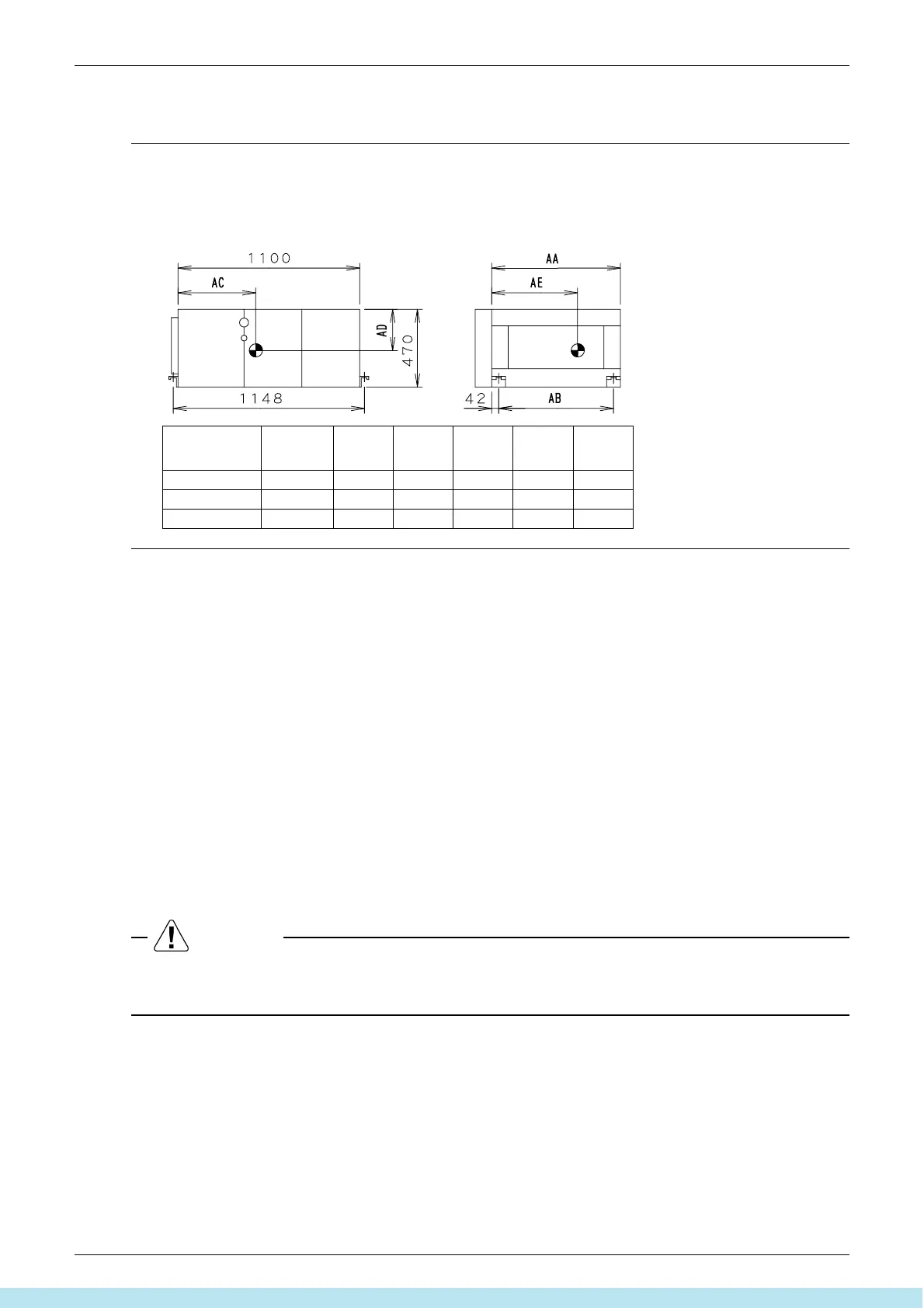

Center of Gravity
FXMQ125MFV1
FXMQ200MFV1
FXMQ250MFV1
C: 4D046143B
Service Space
Selecting Installation Site
When it may exceed 30°C and RH80% in the ceiling or fresh air is inducted into the ceiling, an additional insulation
(Thickness 10mm or more of glass wool or polyethylene form) is required.
1. Select an installation site where the following conditions are fulfilled and that meets with your customer’s approval.
Where is resistible against weight of the unit.
In the upper space (including the back of the ceiling) of the unit where there is no possible dripping of water from
the refrigerant pipe, drain pipe, water pipe, etc.
Where optimum air distribution can be ensured.
Where nothing blocks the air passage.
Where condensate can be properly drained.
If supporting structural members are not strong enough to take the unit’s weight, the unit could fall out of place
and cause serious injury.
Where the false ceiling is not noticeably on an incline.
Where there is no risk of combustible gas leakage.
Where sufficient clearance for maintenance and service can be ensured. (Refer to Fig. 1)
Where the total piping length involving indoor unit and outdoor unit is below the allowable piping length.
(See the installation manual included with the outdoor unit for “Refrigerant Piping Work”)
Locations where a maintenance hole can be installed. (Refer to Fig. 2)
CAUTION
Install the indoor and outdoor units, power supply wires and transmission wires at least 1 meter away from
televisions or radios in order to prevent image interference or noise.
(Depending on the radio waves, a distance of 1 meter may not be sufficient enough to eliminate the noise.)
MODEL
PRODUCT
WEIGHT
(Mass)
AA AB AC AD AE
FXMQ125MFV1 86kg 780 696 600 250 330
FXMQ200MFV1 123kg 1380 1296 570 250 600
FXMQ250MFV1 123kg 1380 1296 570 250 600
Unit (mm)
