10.Installation
10.1 Indoor Units

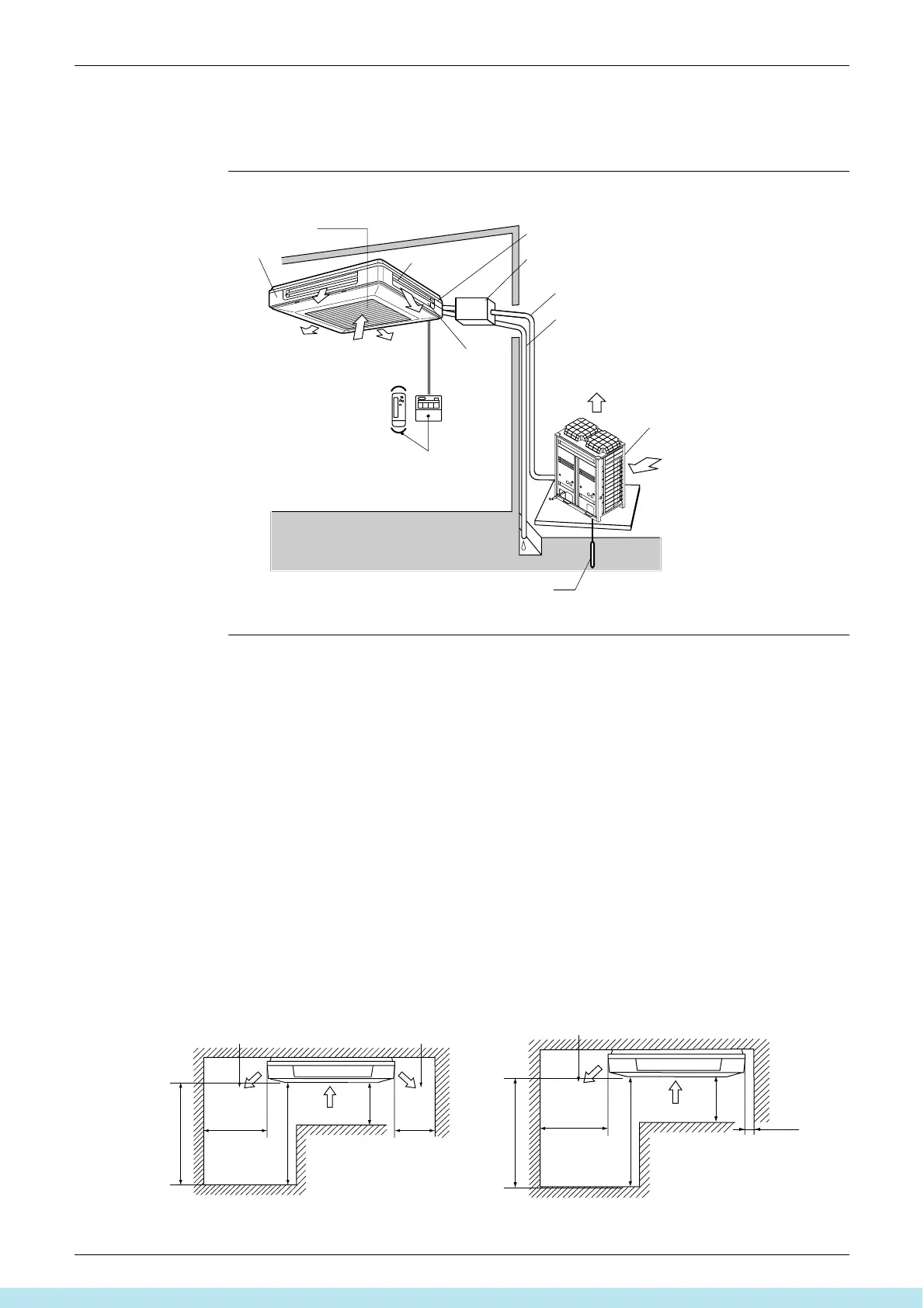

Installation Example
Service Space
Air inlet
The built-in air filter
removes dust and dirt.
Indoor unit
Discharged air
Air outlet
Remote controller
Inlet air
Outdoor unit
Inlet air
Discharged air
Drain pipe
Ground wire
Wire to ground from each unit to
prevent electrical shocks.
Drain pumping out device (built-in)
Drains water removed from the room
during cooling.
Air flow flap
(at air outlet)
BEV unit
Unit for connecting FXUQ unit to VRV
outdoor unit.
Refrigerant piping,
connection electric wire
Discharged
air
Select an installation site where the following conditions are fulfilled and that meets your cus-
tomer’s approval.
• In the upper space (including the back of the ceiling) of the indoor unit where there is no possible
dripping of water from the refrigerant pipe, drain pipe, water pipe, etc.
• Where optimum air distribution can be ensured.
• Where nothing blocks air passage.
• Where condensate can be properly drained.
• Where the ceiling is strong enough to bear the indoor unit weight.
• Where the false ceiling is not noticeably on an incline.
• Where sufficient clearance for maintenance and service can be ensured.
• Where there is no risk of flammable gas leakage.
• Where piping between indoor and outdoor units is possible within the allowable limit.
(Refer to the installation manual for the outdoor and BEV units.)
[ CAUTION ]
Only use the included parts or parts which match the specifications when installing the unit.
• Install the indoor unit no less than 2.5 m above the floor. Where unavoidably lower, take what
measures are necessary to keep hands out of the air outlet.
∗∗ Space is required to attach/detach corner covers.
Space required for installation
≥1500
≥
1000
≥
2500
≥1500
Air discharge
For installation in high places.
Air inlet
Obstruction
Floor
Air discharge
≥ 30
∗∗
≥
1000
Floor
Air inlet
Obstruction
Air discharge
For installation in high places.
≥ 1500
≥ 2500
(length: mm)
