Daikin VRV III User Manual

ED34-862 Installation
FXLQ-MA / FXNQ-MA 377
11
9. Installation

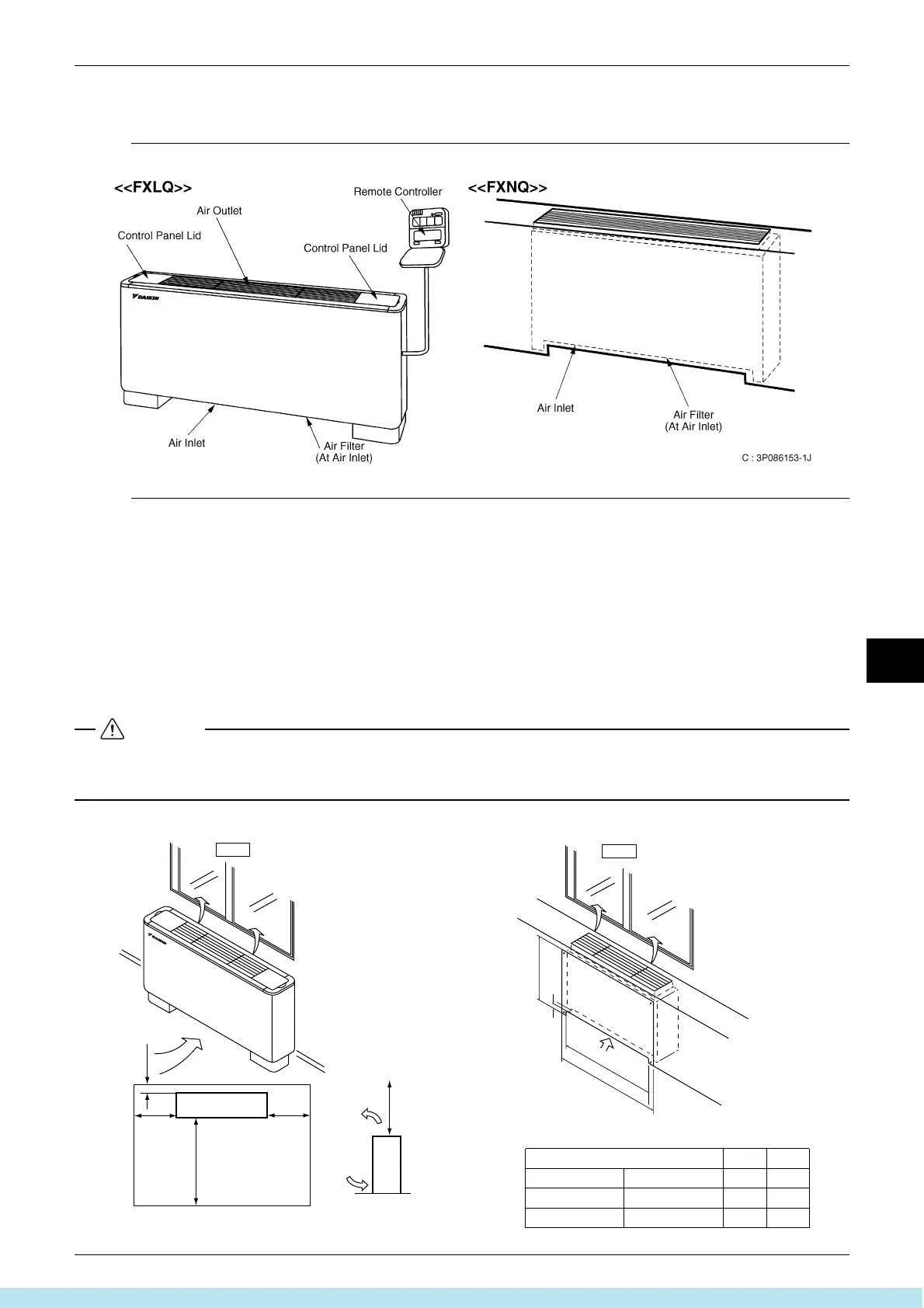

Installation Example
Service Space
(1) Select an installation site where the following conditions are satisfied and that meets with your
customer’s approval.
• Where the floor is strong enough to dear the indoor unit weight.
• Where the floor is not significantly inclined.
• Where nothing blocks the air passage.
• Where condensate can be properly drained.
• Where sufficient clearance for installation and maintenance can be ensured.
• Where optimum air distribution can be ensured.
• Where there is no risk of flammable gas leakage.
• Where piping between indoor and outdoor units is possible within the allowable limit. (Refer to the installation
manual of the outdoor unit.)
CAUTION
• Install the indoor and outdoor units, power supply wiring and connecting wires at least 1 meter away from televisions or
radios in order to prevent image interference or noise.
(Depending on the radio waves, a distance of 1 meter may not be sufficient enough to eliminate the noise.)
C : 3P086154-2N
Base
FXLQ
Window
100 or
more
(FXLQ)
150 or
more
(FXNQ)
100 or
more
(FXLQ)
20 or more
1000 or
more
1750
or
more
Air flow direction
Air inlet
direction
Front side
(length : mm)
FXNQ
Maintenance
area
80 or more
A or more
B or more
625
FXNQ20 · 25MAVE
FXNQ32 · 40MAVE
FXNQ50 · 63MAVE
FXLQ20 · 25MAVE
FXLQ32 · 40MAVE
FXLQ50 · 63MAVE
A (mm)
570
710
990
B (mm)
1030
1170
1450
(IMPORTANT) Leave sufficient clearance for air inlet and maintenance.
Model
(length : mm)
Все каталоги и инструкции здесь: http://splitoff.ru/tehn-doc.html

Daikin VRV III Specifications

General

Type	VRV (Variable Refrigerant Volume)
Refrigerant	R410A
Energy Efficiency	High
Control	Centralized control systems, individual zone control
Operating Temperature Range (Cooling)	-5°C to 46°C
Indoor Unit Types	Ceiling Cassette, Ceiling Suspended, Wall Mounted, Floor Standing, Ducted
Power Supply	380-415V, 50/60Hz, 3-Phase (depending on model)
