Daikin VRV III User Manual

ED34-862 Dimensions
FXUQ-MA 385
12

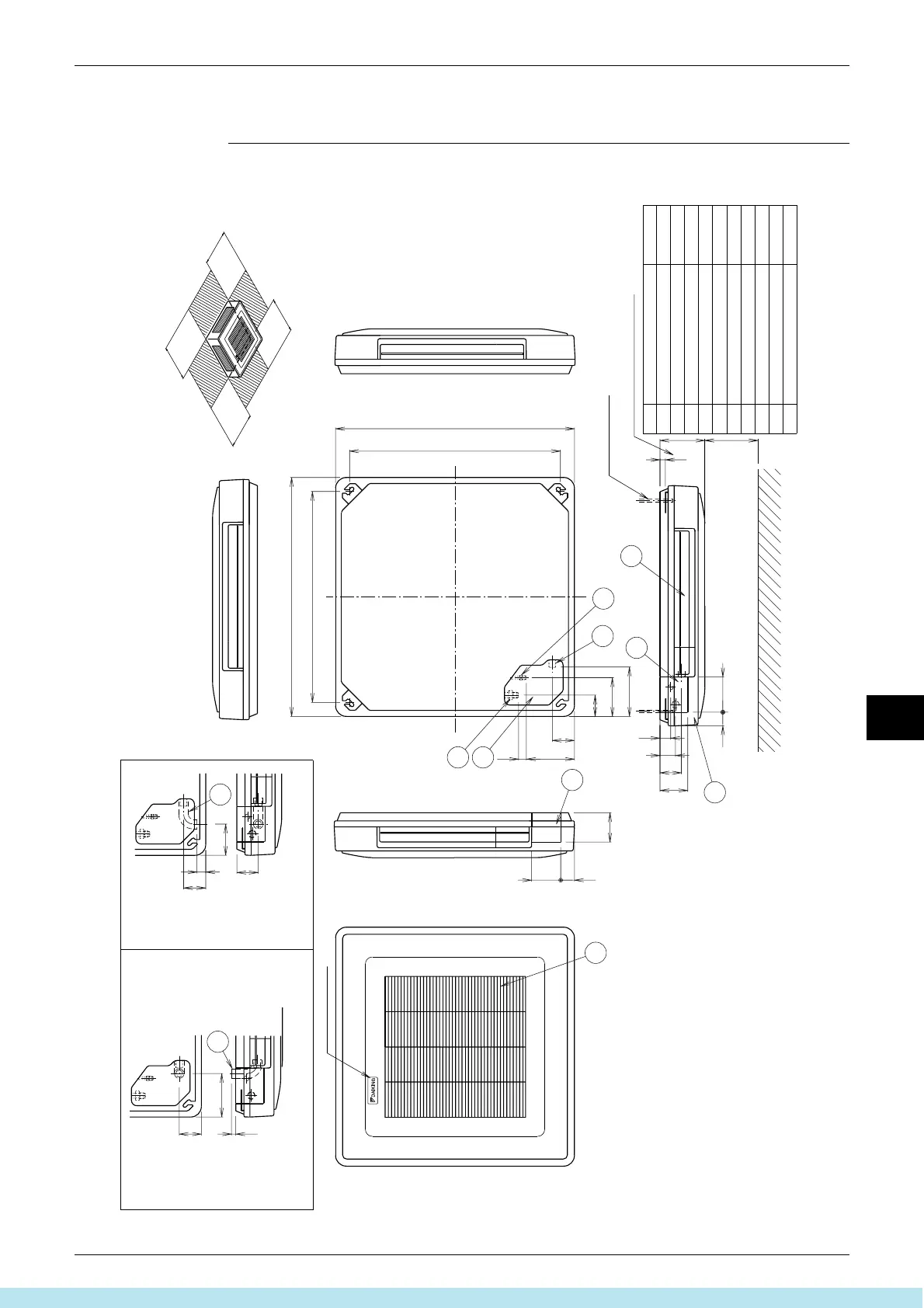

3. Dimensions
FXUQ71MAV1
Unit (mm)
8
4
13
5
7
9 2
10
10
Required space
Drain connection location for upper piping
Drain connection location for rear piping
1000mm or more
(Required space)
4-M8~M10
Suspension bolt
80
790 Susension position
30
83
40
6
790 Susension position
Height of suspension bracket
132
83
58
110
165
16
83
145
110
180
109
80
52
185
117
895
33
80
52
895
* 1500mm or more
Brand name plate (Note 2)
163
20
Note) 1. Location for manufacture's label : on bell mouth. 2. This is where the signal of wireless remote controller is received.
Refer to the drawing of wireless remote controller in detail.
3. When closing the discharge grill (2 or 3 way discharge), direction of
pipe connection will be limited, please refer to Installation manual.
Liquid pipe connection Gas pipe connection Drain pipe connection Air outlet Air suction grille Corner decoration cover Right pipe / wiring connection Rear pipe / wiring connection Pipe through cover Accessory drain elbow
DescriptionName
Number
1 2 3 4 5 6 7 8 9
10
φ9.5 flare φ15.9 flare VP20
* Drain pipe can be raised up to 500mm
from the top surface of the product.
* When closing the discharge grill, the required space
is 30mm or more. (Note 3)
* 1500mm or more
* 1500mm
or more
* 1500mm
or more
3D013860E
