ED34-862 Piping Diagrams
FXLQ-MA / FXNQ-MA 371
11

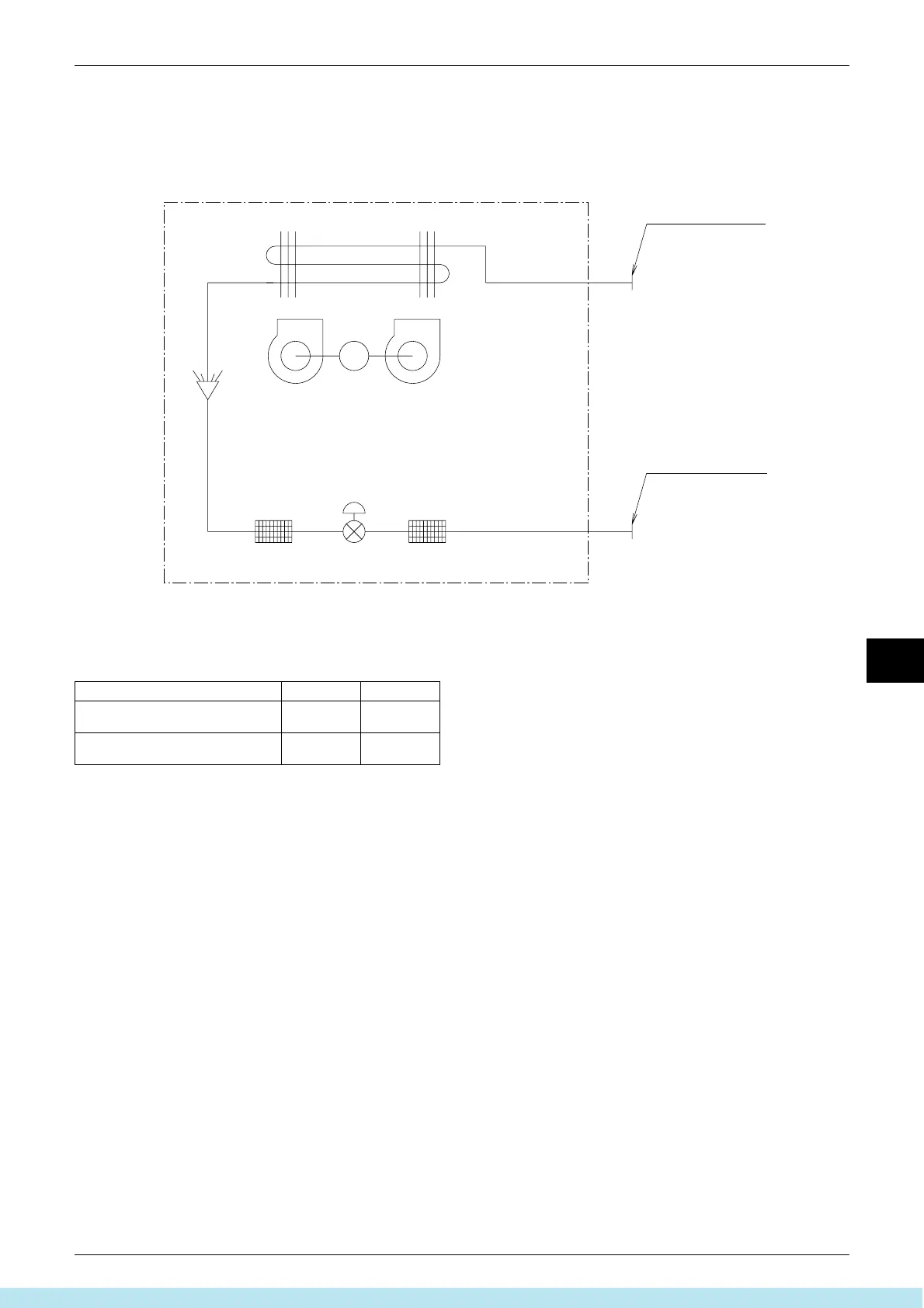

4. Piping Diagrams
Refrigerant pipe connection port diameters
Electronic
expansion valve
Filter
M
Heat exchanger
Filter
Fan
Liquid pipe
connection port
Gas pipe
connection port
4D034245C
(mm)
Model Gas Liquid
FXLQ20 · 25 · 32 · 40 · 50MA
FXNQ20 · 25 · 32 · 40 · 50MA
φ12.7 φ6.4
FXLQ63MA
FXNQ63MA
φ15.9 φ9.5
