5-42 Adjustments
Network Option Adjustments
The printer has an LCD display mounted below the input hopper. In service
mode, the display is used to set network protocols for the printer.
Except for the MAC (Media Access Control) Address, the network settings are
specific to the network to which the printer is connected. Before changing these
settings, contact the local network administrator for the proper settings.
The MAC Address is a unique identifier for the physical printer. The first 6
digits of the MAC address are assigned to Datacard and cannot be changed. The
remaining 6 digits are assigned to each individual printer. The MAC Address
shown on the LCD display should match the address printed on the chassis.
Adjustment Procedure

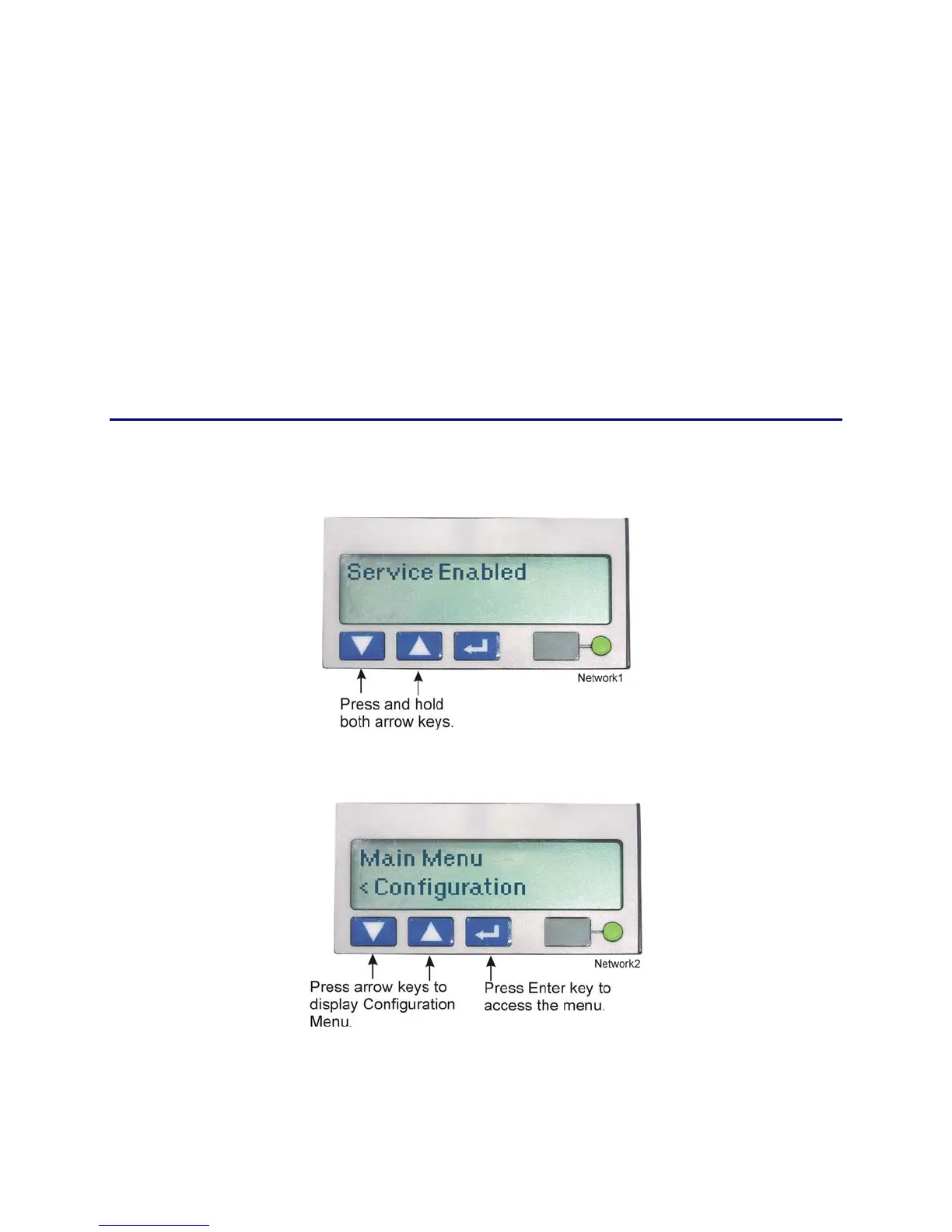

1. Simultaneously press the Up and Down arrows on the LCD display until the
display shows “Service Enabled.”
2. Press the Up or Down arrow until the Configuration menu is displayed. Then
press the Enter key to access the menu.
To Next Page
