5-54 Adjustments
Lower Duplex Rotational Adjustment
This adjustment sets the Lower Duplex Handoff offset. Other duplex position
offsets are adjusted based on the resulting value of the Duplex Handoff offset.
Adjustment Procedure
1. From Diagnostics, select Printer and then Step Test.
2. Click on the Move lower duplex to handoff position button. The flipper will
rotate and re-register at the handoff position.
3. Open a second instance of diagnostics and go to the Laminator Values
window.

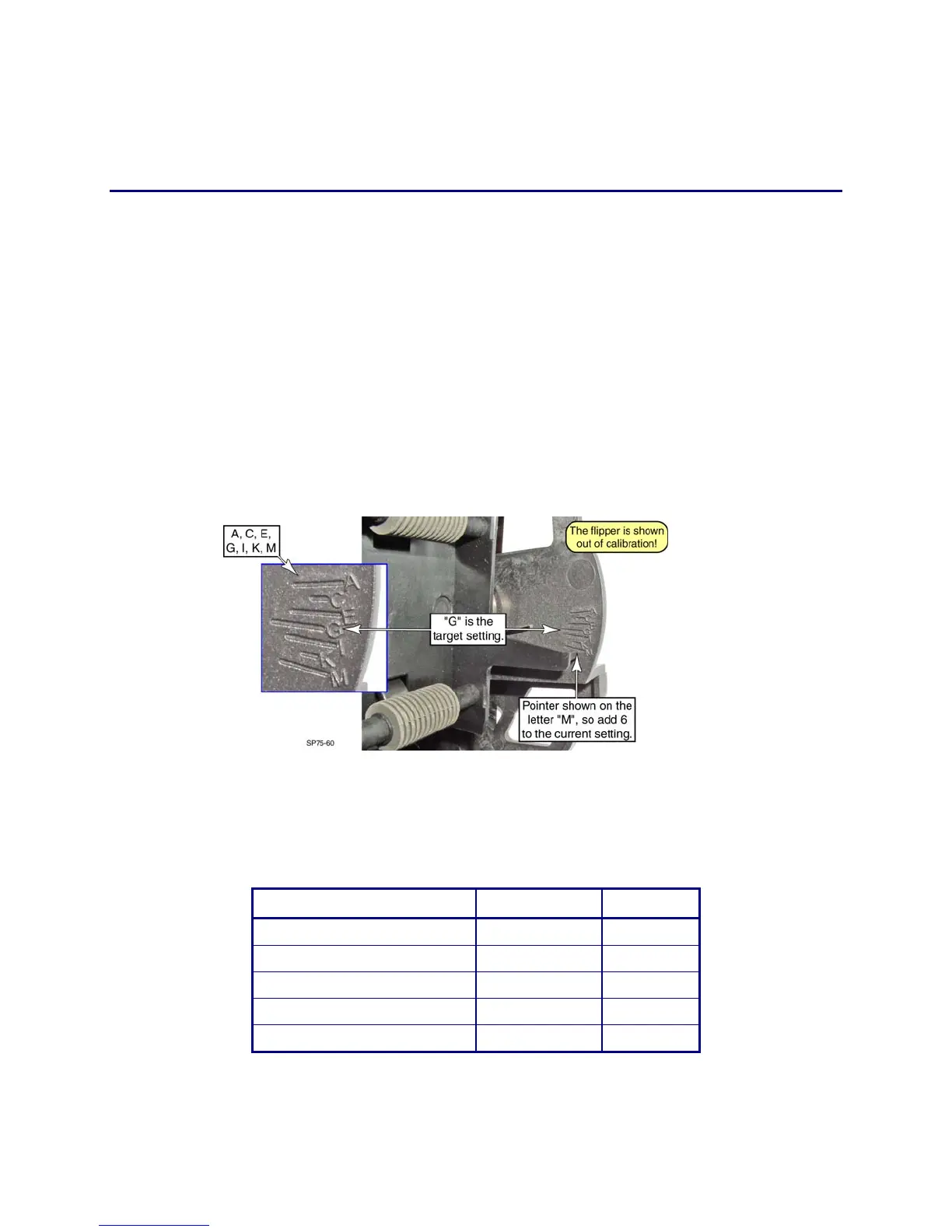

4. Examine the physical position of the duplex calibration pointer. The proper
location of the pointer is at the letter "G" on the duplex chassis.
• If the pointer is below the "G", add the number of units to the current
setting (each letter represents 2 units because every other letter is shown).
• If the pointer is above the "G", subtract the number of units from the
current setting.
5. Set all of the other parameters based on the handoff offset. The table below
shows what should be added or subtracted from the handoff’s value. For
example, the Duplex Home Offset should be 68 units smaller than the Duplex
Handoff Offset.
6. Save the values to Power-on defaults.
Parameter Change Sample
Duplex Handoff Offset Baseline 82
Duplex Home Offset Subtract 68 14
Duplex Flipped Offset Subtract 60 22
Duplex Reject Offset Add 26 108
Duplex Debow Offset Subtract 42 40

