CP80 and CP80 Plus Service Manual 6-59
Front Drive Roller
Removal Procedure

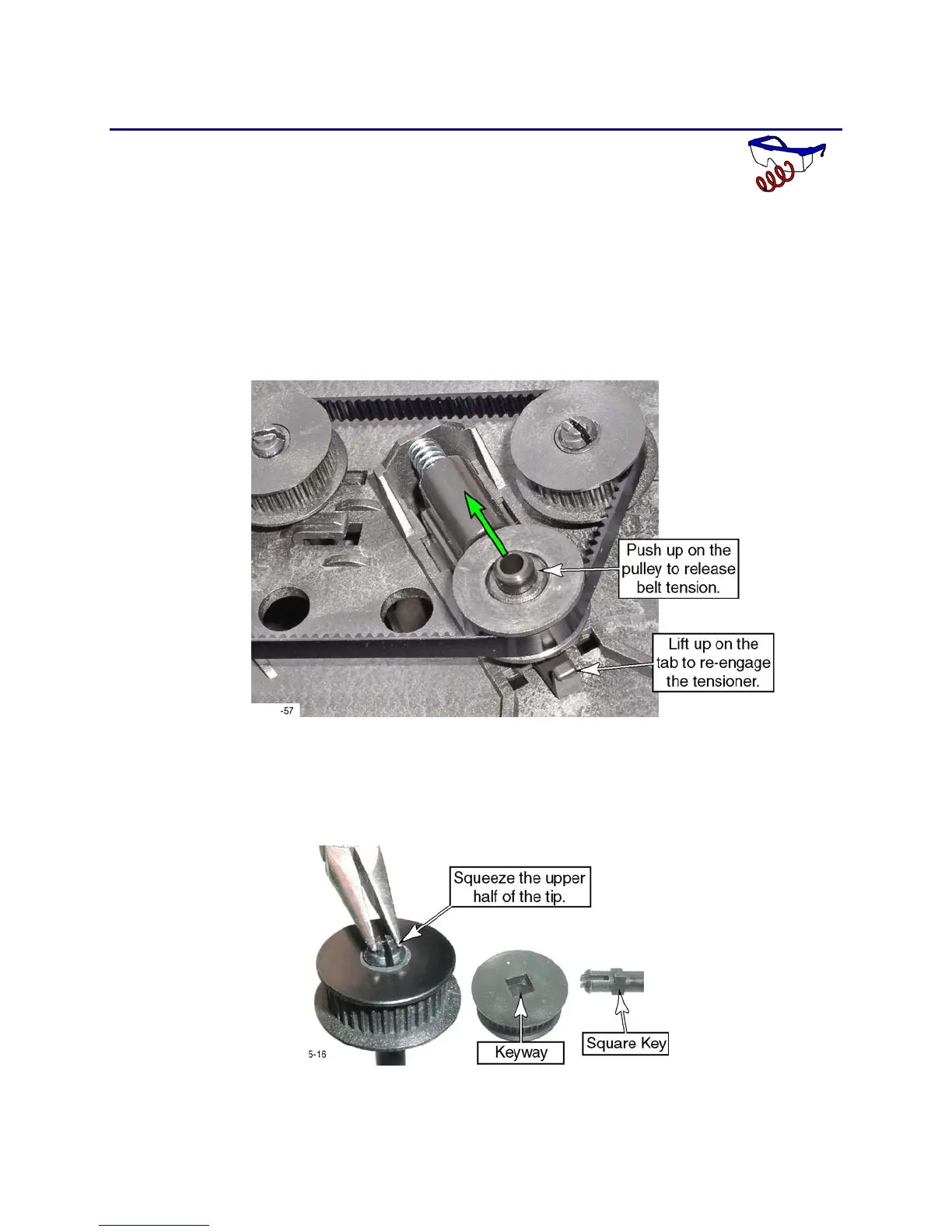

1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Lift the
Ribbon Guide (page 6-53) out and set it aside.
5. Remove the
Front Rocker Assembly (page 6-51).
6. Remove the
Front Card Guide (page 6-67).
7. Release the belt tension, and remove the transport belt.
8. Remove the pulley from the shaft by squeezing the end of the shaft and
slipping the pulley off.
 The pulley's flange is permanently adhered to the pulley. Do not try to
remove the flange.
