CP80 and CP80 Plus Service Manual 6-33
Pick Motor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Unplug the wires from the motor.
5. To access the motor mounting screws, it is necessary to remove the
Input
Hopper (page
6-17).

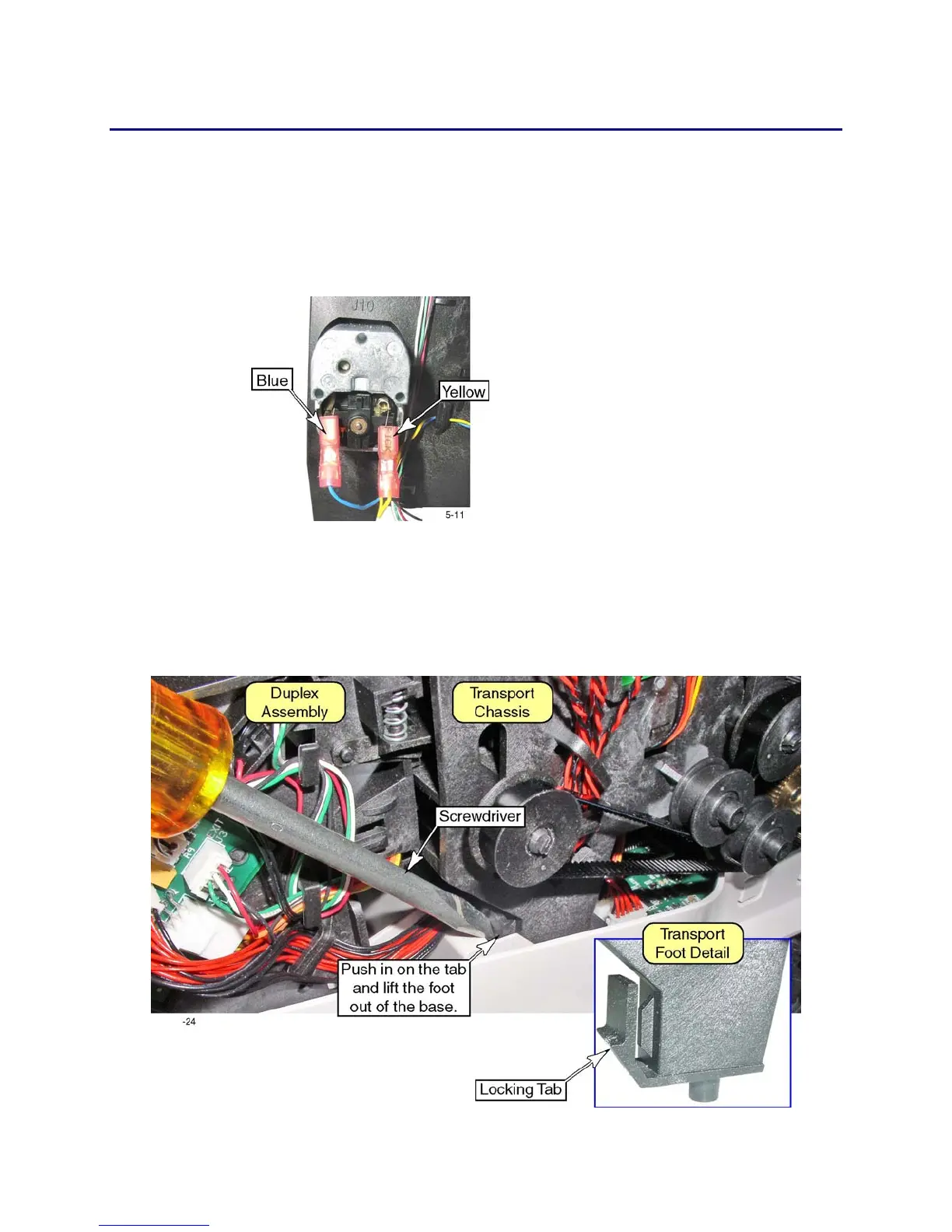

A. Unsnap the rear transport feet from the base.
B. Slide the transport chassis back, and simultaneously pull forward on the
input hopper. Remove the card hopper.
To Next Page
