CP80 and CP80 Plus Service Manual 6-75
Duplex Home Sensor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).

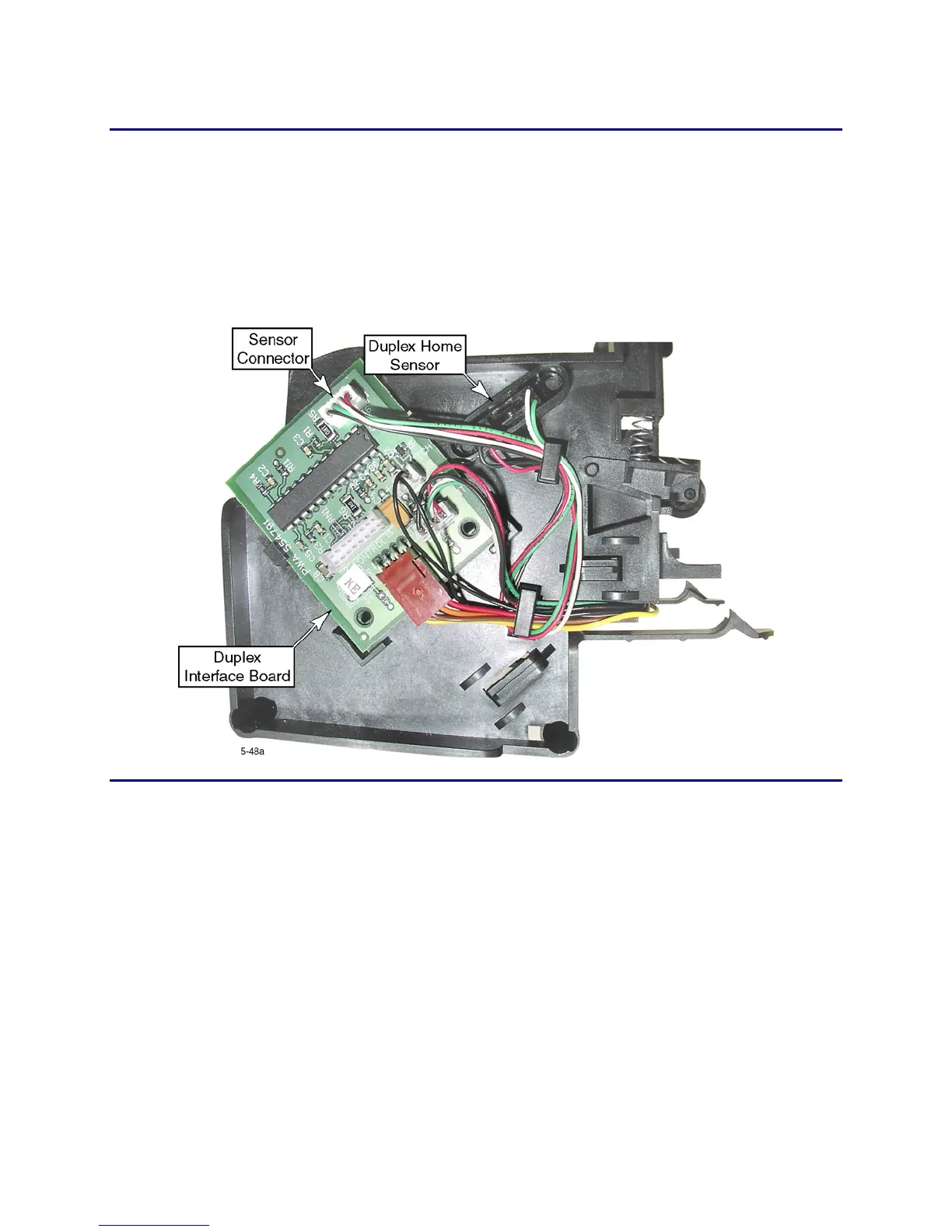

4. Disconnect the sensor connector from the duplex interface board.
5. Carefully push the sensor out of the duplex chassis.
Replacement Notes
• When pushing the sensor into the duplex chassis, do not push against the wires
or crush them.
• Print a test card to verify that the duplex is functioning properly.
