6-118 Removal and Replacement
Heater Home Sensor
Removal Procedure
1. Turn off the printer and unplug the power cord.
WARNING: The heated roller can become hot enough to cause serious
burns. Allow the printer to cool at least 30 minutes before beginning this
procedure.
2. Remove the
Main Enclosure (page 6-15) and the Upper Printer Assembly
(page
6-38).
3. Remove either the
Upper Heater Assembly (page 6-124) or the Lower Heater
Assembly (page
6-125) from the laminator.

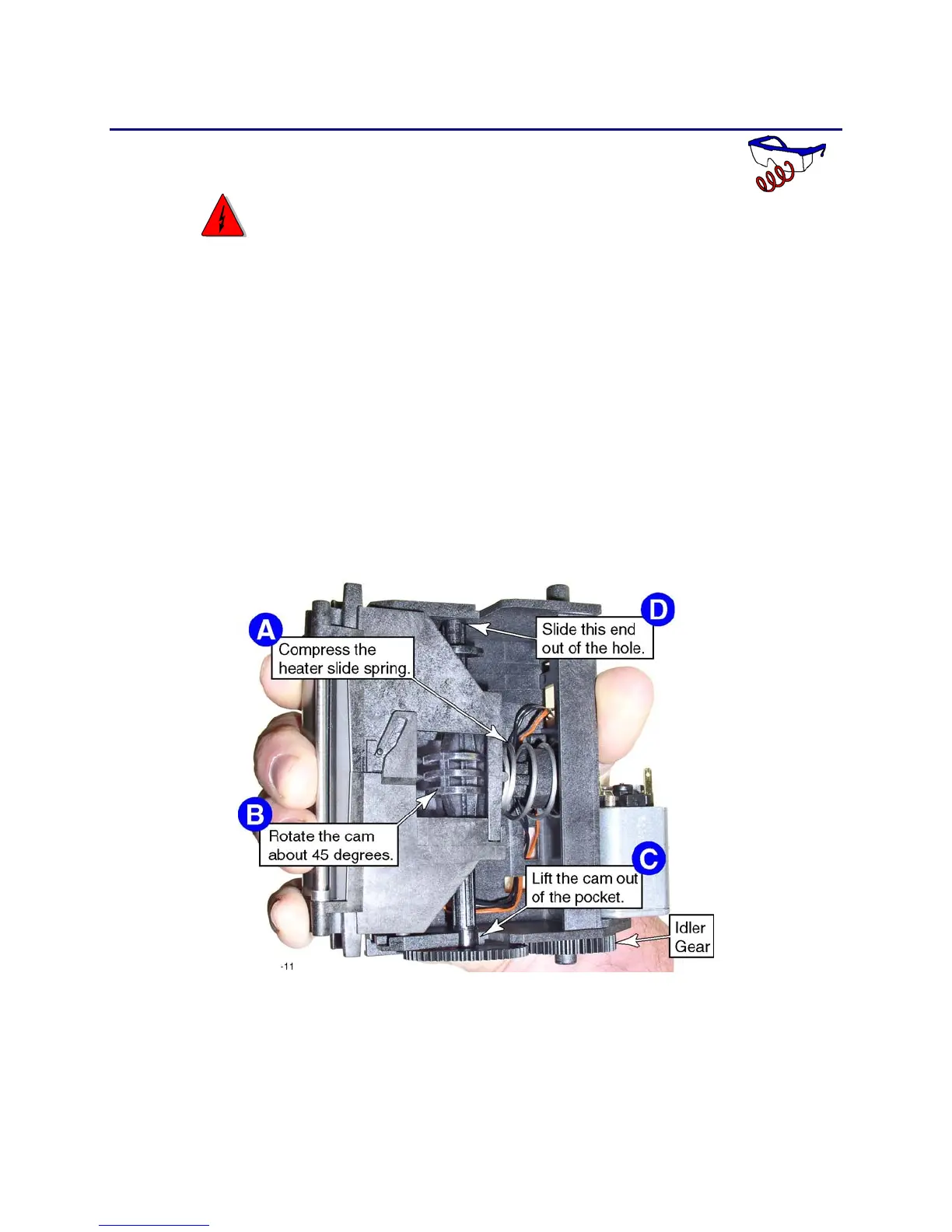

4. Remove the heater slide from the heater assembly.
A. Compress the heater slide spring by squeezing the assembly.
B. Remove the idler gear, and rotate the cam so the sensor flag is clear of the
sensor body (note the orientation of the cam in the photo below).
C. Lift the gear-end of the cam out of the pocket.
D. Slide the shaft out of the assembly.
To Next Page
