CP80 and CP80 Plus Service Manual 6-73
Duplex Entry Sensor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Disconnect the duplex interface cable from the interface board.
5. Remove the
Upper Duplex Module (page 6-71) from the printer.

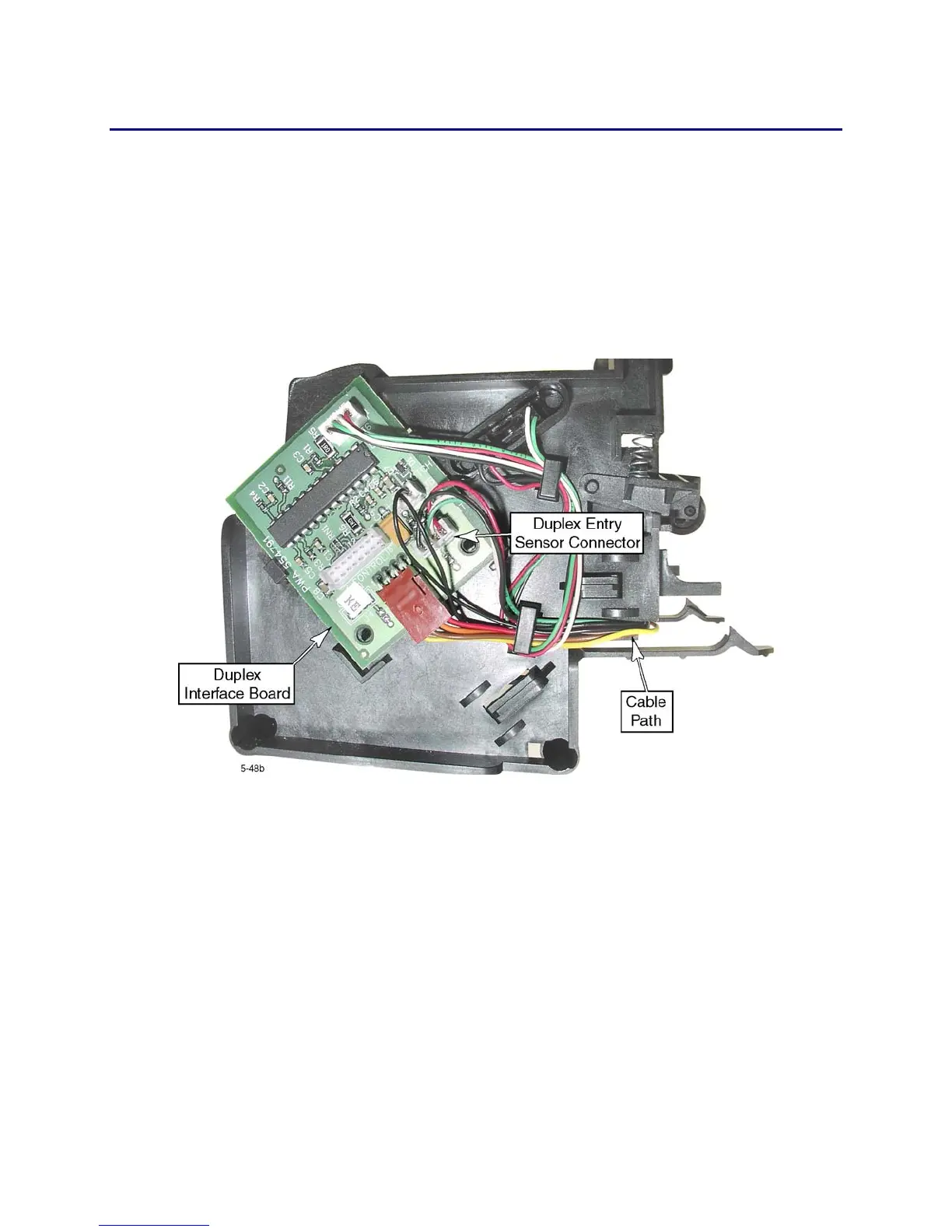

6. Disconnect the entry sensor connector from the interface board.
To Next Page
