6-126 Removal and Replacement
Upper Foil Drive Assembly
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Disconnect the foil advance motor connector from the laminator control
board.
4. Free up the following cables from the cable guides on the face of the drive
assembly:
• Heater Lift Motor
• Thermocouple
• Heater

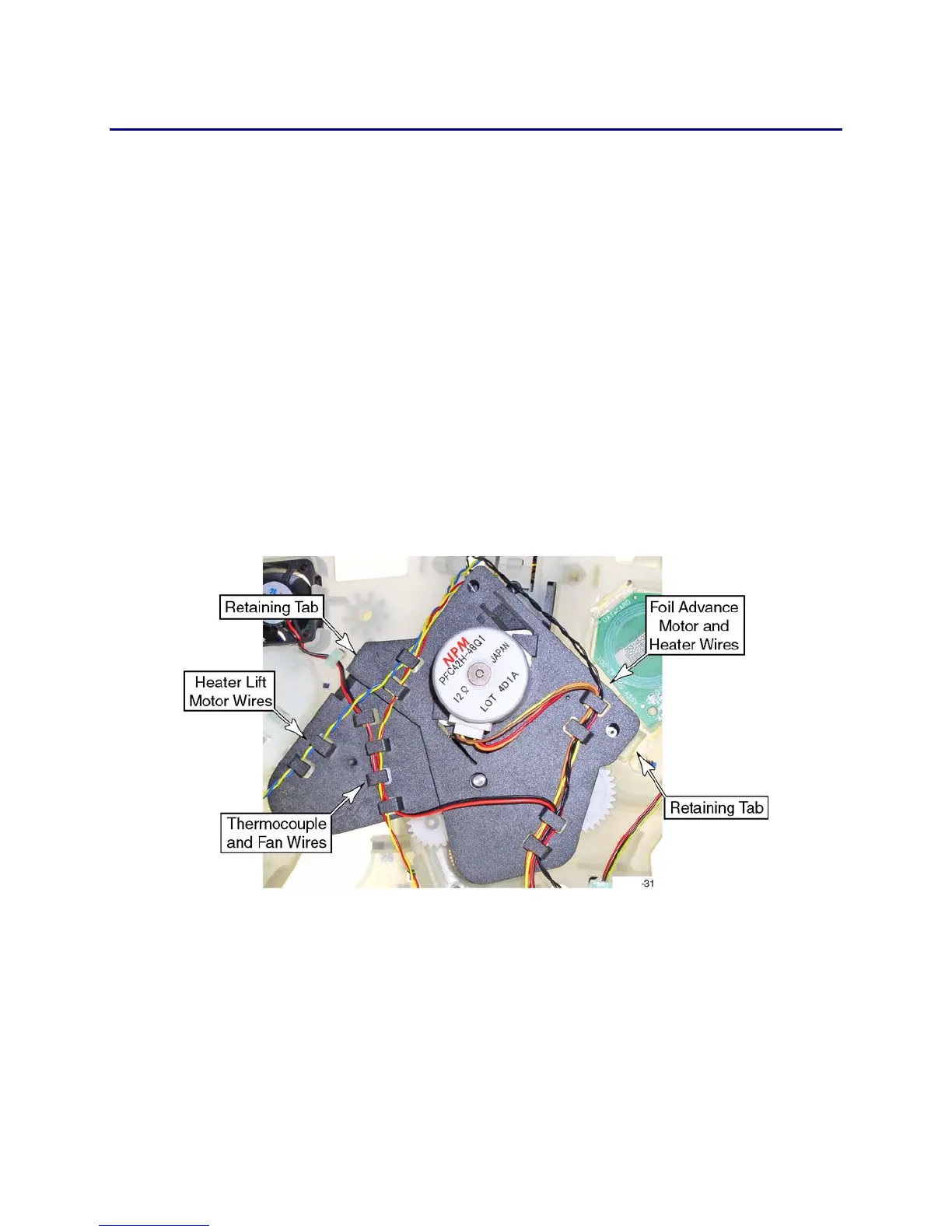

5. Press in on the two retaining tabs and pull the assembly away from the
laminator chassis.
 The two gears and the pressure spring on the back of the drive assembly
are not retained. Refer to the replacement notes for a picture and
description.
