BASIC OPERATIONS
26 77144 Issue 8 August 2009

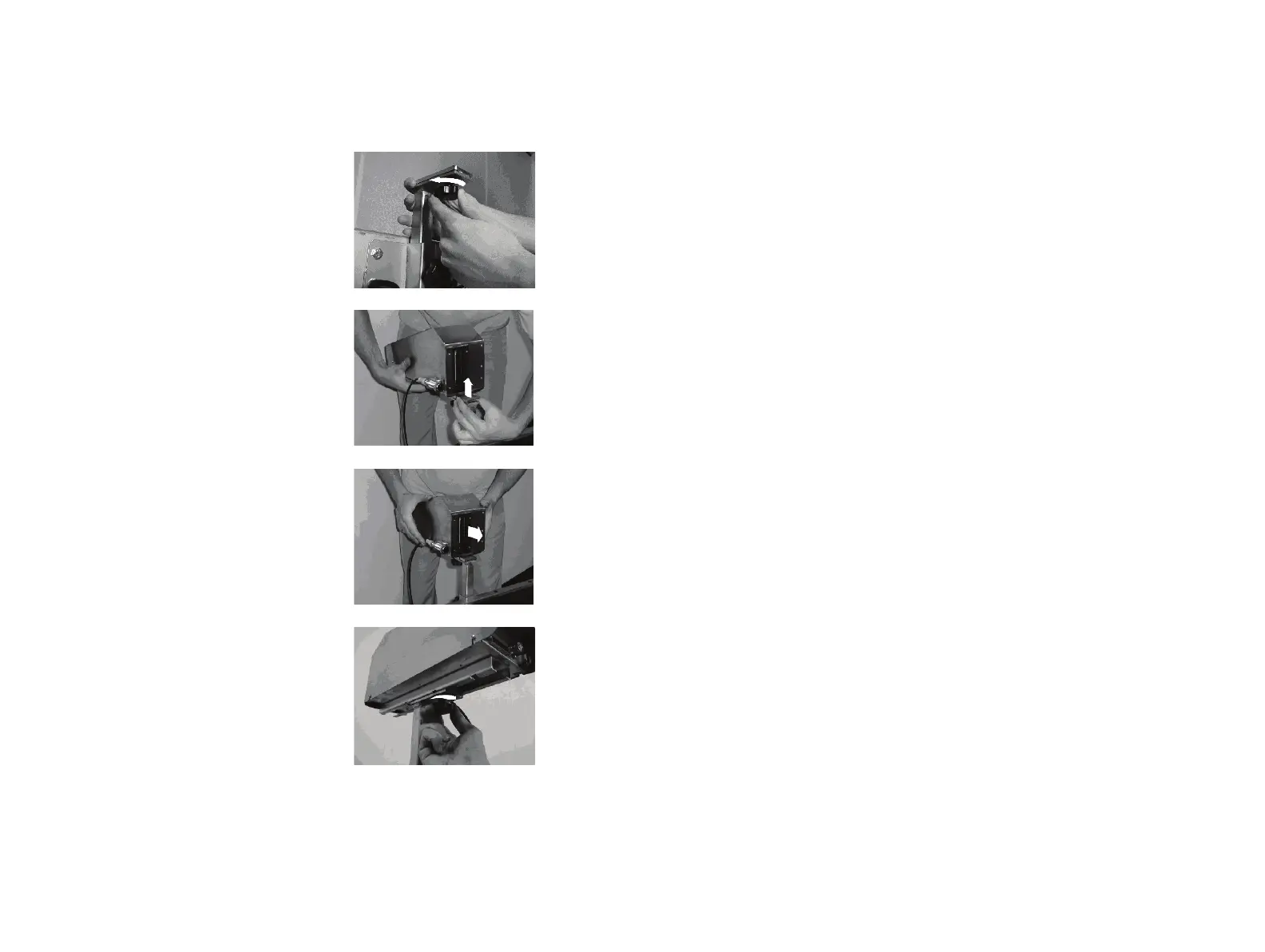

CONTROL UNIT HEAD MOUNTING
Note: It is recommended that control units are mounted on stands.
(1) To mount or dismount the control unit head,
loosen the fixing knob on the top of the
vertical mounting post.
(2) Mount the control unit by gently moving the
unit’s slide bar over the loosened clamping
plate. Ensure that the unit is well supported
during this operation.
(3) Ensure the front of the unit is facing the
conveyor belt as shown. To dismount the
unit, move the slide bar back off the
loosened clamping plate, ensuring that all
connections to the control unit are
unplugged.
(4) When the control unit has been moved to
the required position, tighten the fixing knob
at the top of the vertical mounting post.
