BASIC OPERATIONS
28 77144 Issue 8 August 2009
ROTATING THE REMOTE HEAD 90° -
C3000X AND C1000X ONLY

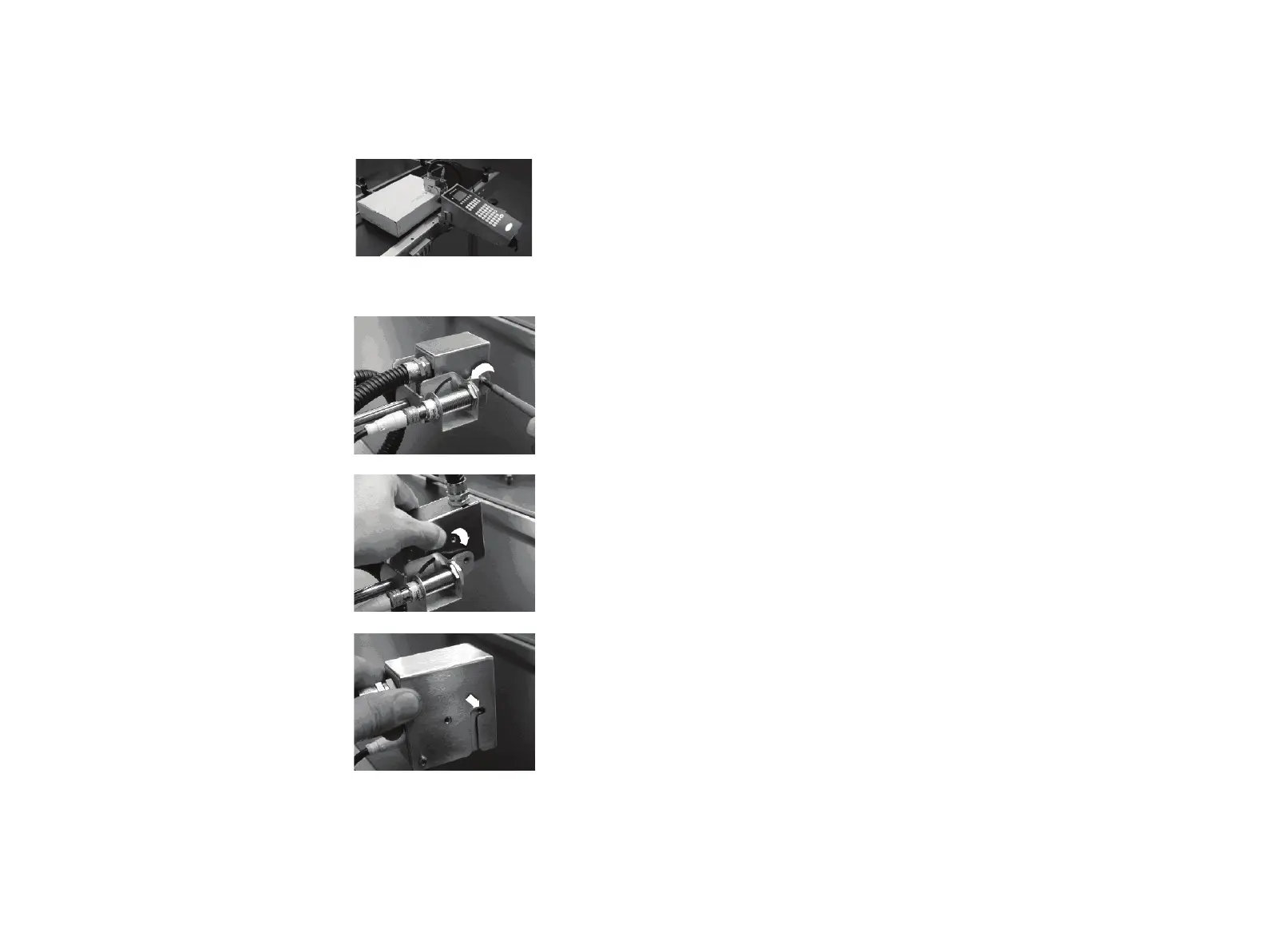

(1) To set a remote head to print down, the head
must be set to the correct height to provide
adequate tolerance for the print surface to
pass beneath it. By adjusting the length of the
bracket arm, the position of the message can
be placed accurately on the print surface.
(2) Before setting the print the head must be
rotated. The pivot point of the head will
need switching as follows; release the bracket
screws on either side of the head, ensure that
the head is held securely and the ship cap is
attached.
(3) Whilst holding the head, gently rotate it to
the position indicated.
(4) There are two sets of fixings on either side of
the head, use the ones shown.
