BASIC OPERATIONS
34 77144 Issue 8 August 2009
PRINTING AT ANGLES - C3000X AND
C1000X ONLY

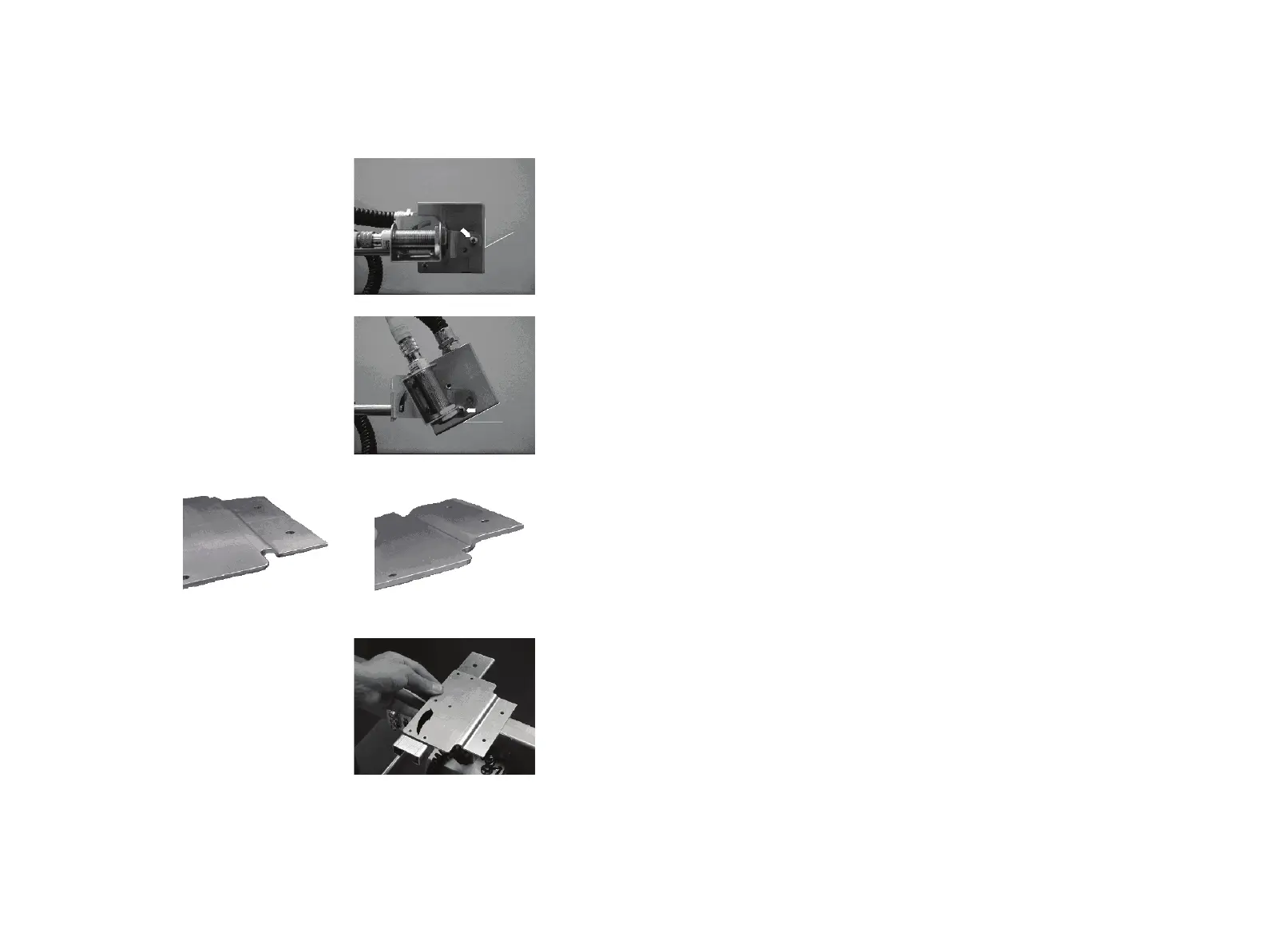

(1) The remote head must be tilted in the
bracket arm to the required angle as follows;
slacken the two bracket fastening screws and,
using the top right pivot point, rotate the
head to the required angle. Note the
minimum and maximum angles for the top
pivot.
(2) If a smaller angle is required, the lower pivot
point must be used. When the lower pivot
point is used, the bracket mounting plate
must be turned over to compensate for the
height difference between the two pivot
points. The picture shows the different
bracket orientations.
(3) Turn the mounting plate in the direction
indicated to correspond with one of the
orientations outlined above, this will depend
on the pivot point chosen. Align the holes
then mount the control unit and the remote
head bracket to the sliding bar.
If using the bottom left pivot point the bend
in the bracket plate should be facing up
If using the top right pivot point the bend in
the bracket plate should be facing down.
