PROGRAMMING THE PRINTER
80 77144 Issue 8 August 2009

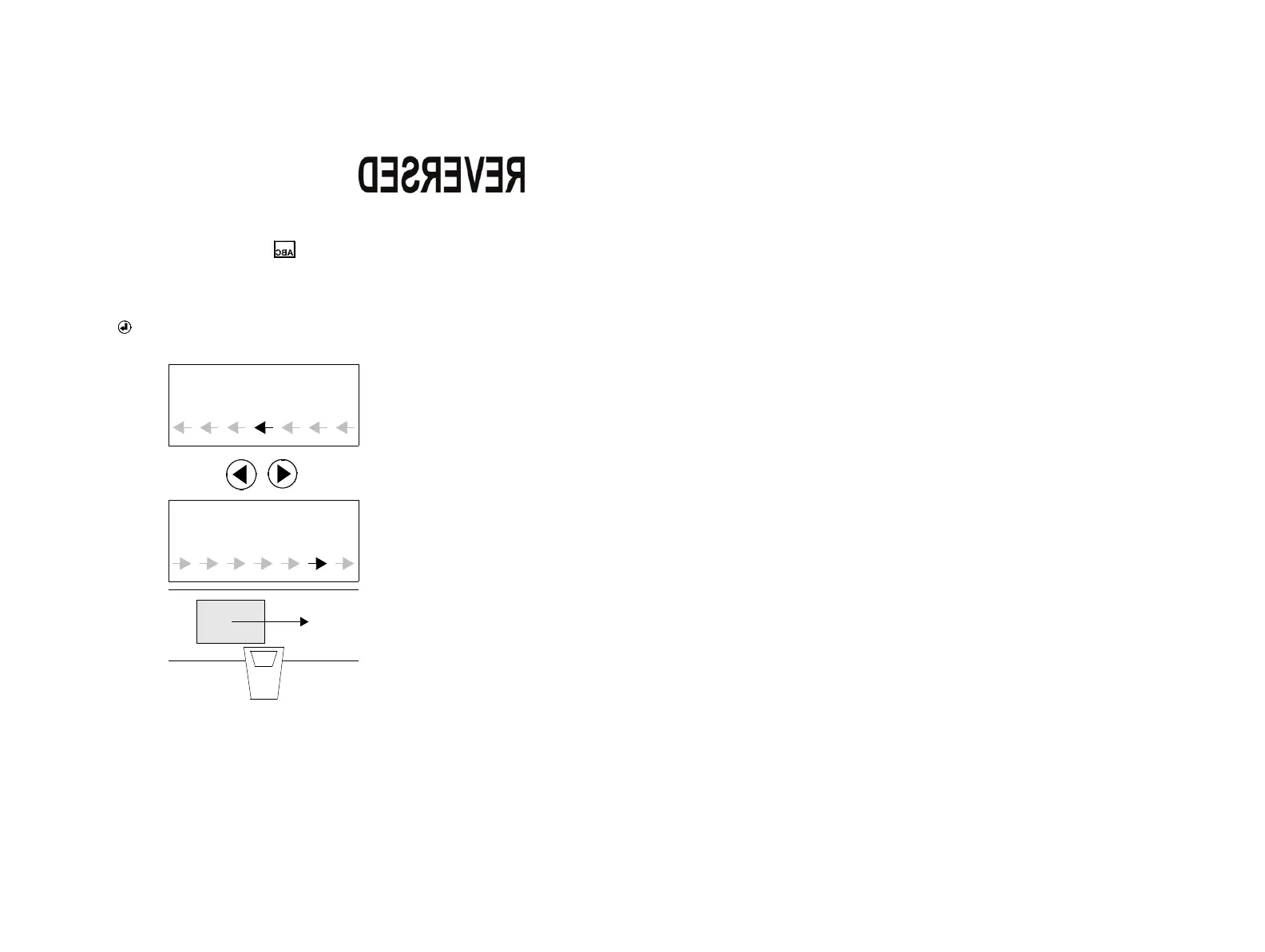

PRINT DIRECTION
The print direction default is from right to left.
Depending on which side of the conveyor each
control unit is mounted, will dictate the direction
that the print surface is moving and could change to
left to right, causing the message to be printed in reverse.
If required, select the print direction icon for the affected control unit(s).
The sample screen below will be displayed. The animated directional arrow
indicates the direction of the print. If the direction needs to be altered then press
the right hand directional key. When pressed, the animated arrow will change
direction. Press enter to confirm the changes. The screen will change to show
“INITIALISING” then returns to the main screen.
PRODUCT DIRECTION
PRODUCT DIRECTION
When the direction of the conveyor belt is running from left to right then
product direction function will need to be altered as shown above
