BASIC OPERATIONS
36 77144 Issue 8 August 2009
SHIP CAP ATTACHMENT
The ship cap is the protective cover placed
over the nozzle plate to protect it during transit
and from dust when it is not in use for more
than 24 hours.

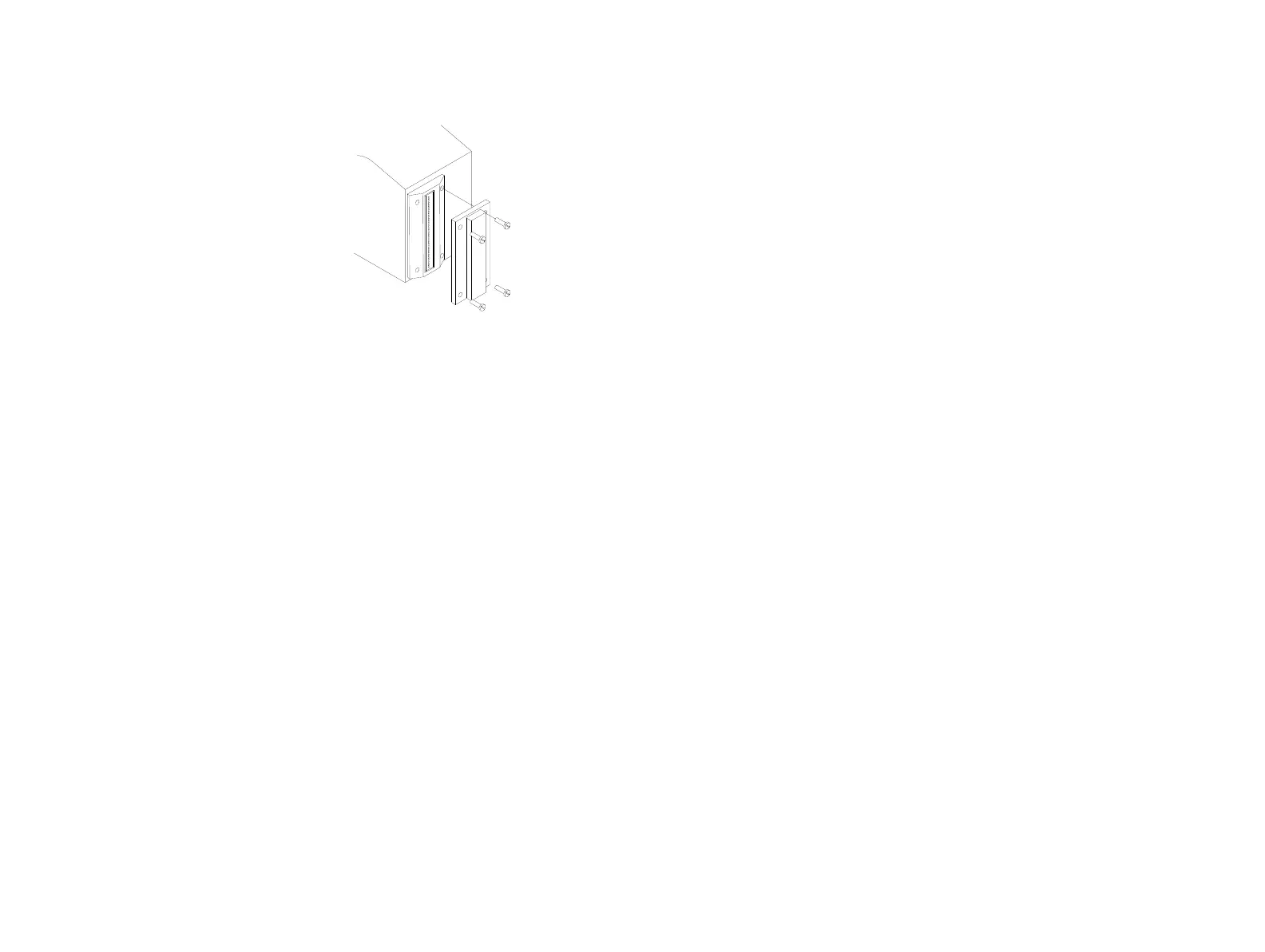

Fit the ship cap to the print head as follows:
(1) Align the ship cap screws with the holes
either side of nozzle plate on the front
of the control unit and tighten the
screws.
(2) Screws should be tightened to the
following torque:
C1000 and C1000X - 0.34 N.m
C3000 and C3000X - 0.68 N.m
C6000, C6000MF, C6000v and C6000i - 0.34 N.m
(3) Remove the ship cap before re-starting the unit.
