BASIC OPERATIONS
77144 Issue 8 August 2009 27

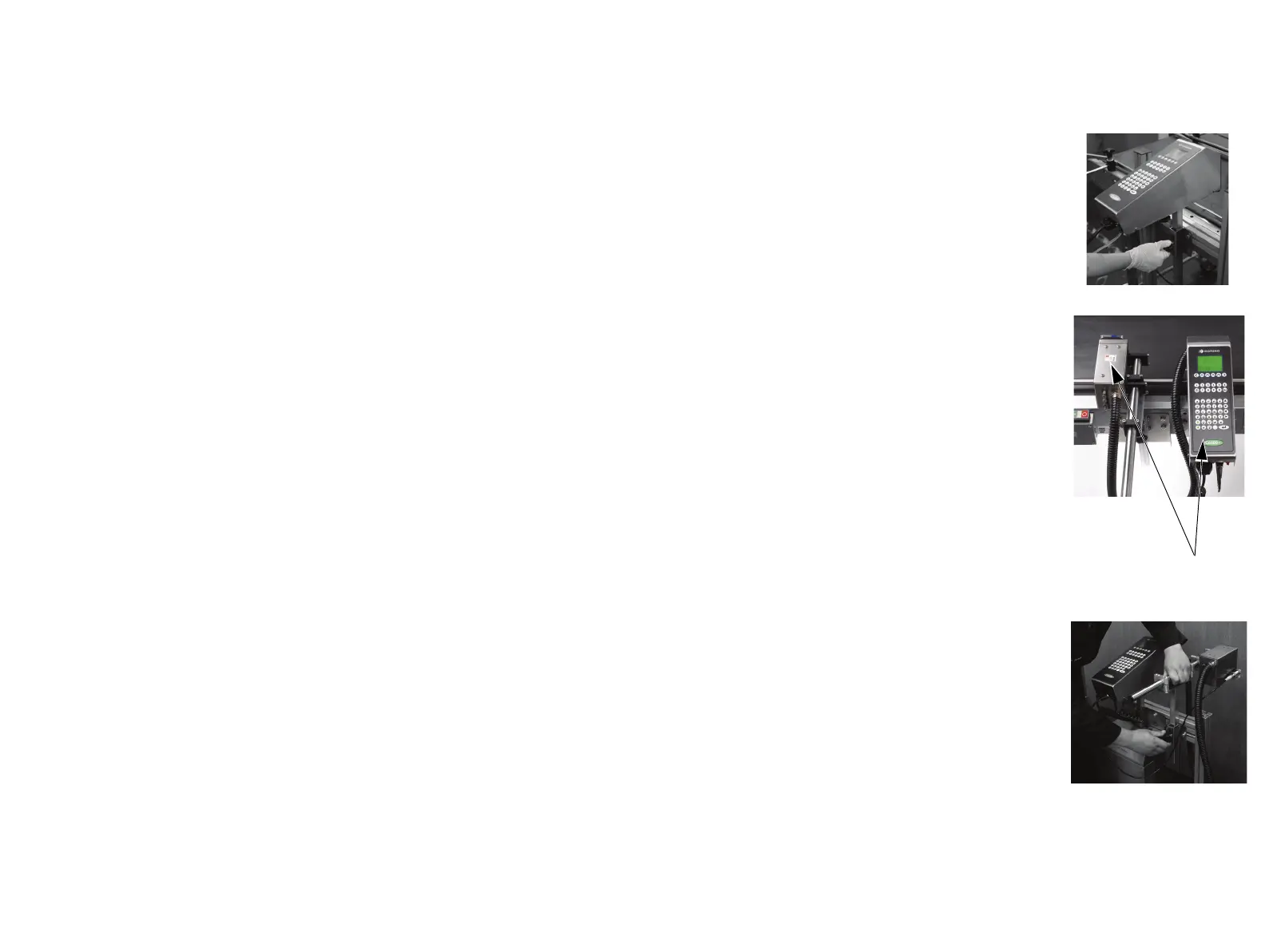

CONTROL UNIT HEIGHT ADJUSTMENT
(1) The vertical mounting post on the printer
base unit can be adjusted up or down to the
required height. This operation should be
carried out with the control unit in place.
Note: Picture shown with control unit removed for
clarity.
(2) Tighten the fixing knob on the front of the
vertical column so that it is holding the
vertical mounting post securely in place.
CAUTION: The C6000i print head and
control unit must be adjusted to
the same height (bases) and must
be kept in the same environment.
Refer to page 30 for printing at
angles.
(3) To Adjust the C6000i print head, slacken the
fixing knob and adjust to the required
height.
Base of Head and Base of
Control Unit must be at
same height when printing
vertically
To Next Page
