DV11
Operation and Maintenance
100
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

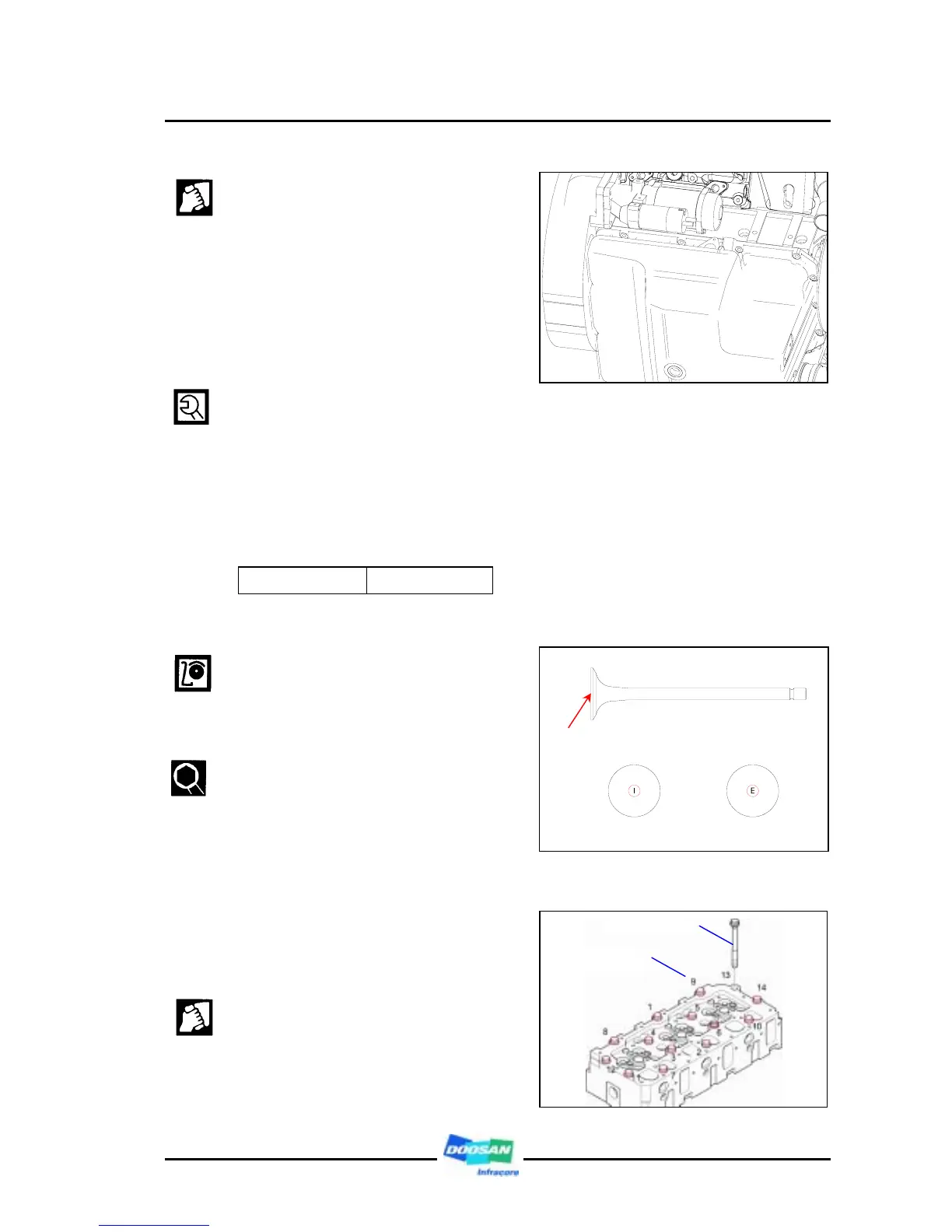

3.3.13. Oil pan
z Clean thoroughly the gasket that is
projecting at the junction parts of
front oil seal holder and flywheel
housing of cylinder block's lower
face with a scraper.
z In the process of gasket removal,
be careful for the gasket pieces not
to get into the engine inside.
z Apply silicon to each joint and
attach a gasket to the cylinder
block.
z Install the oil pan and tighten the
fixing bolts. Then takes care not to
squeeze out the gasket.
Torque 2.2 kg.m
3.3.14. Intake & exhaust valve
z Identify the marks of "I" and "E"
impressed on the valve head
before assembling the valve with
the valve head.
z With a valve stem seal fitting jig,
assemble the valve stem seal on
the valve guide.
3.3.15. Cylinder head
z Blow the cylinder head bolt holes with
compressed air to remove the foreign
material cleanly.
z Wipe off cleanly the junction part of
cylinder block's head gasket.
z After confirming whether there is
foreign material or not necessarily, if
there is, remove it.
Intake valve Exhaust valve
Valve marking position
Assembly order no.
Cylinder head bolt
To Next Page
