Doosan DV11 User Manual

DV11
Operation and Maintenance
137
Common Rail Fuel-injection System
Printed in Mar. 2005 PS-MMA0608-E1A

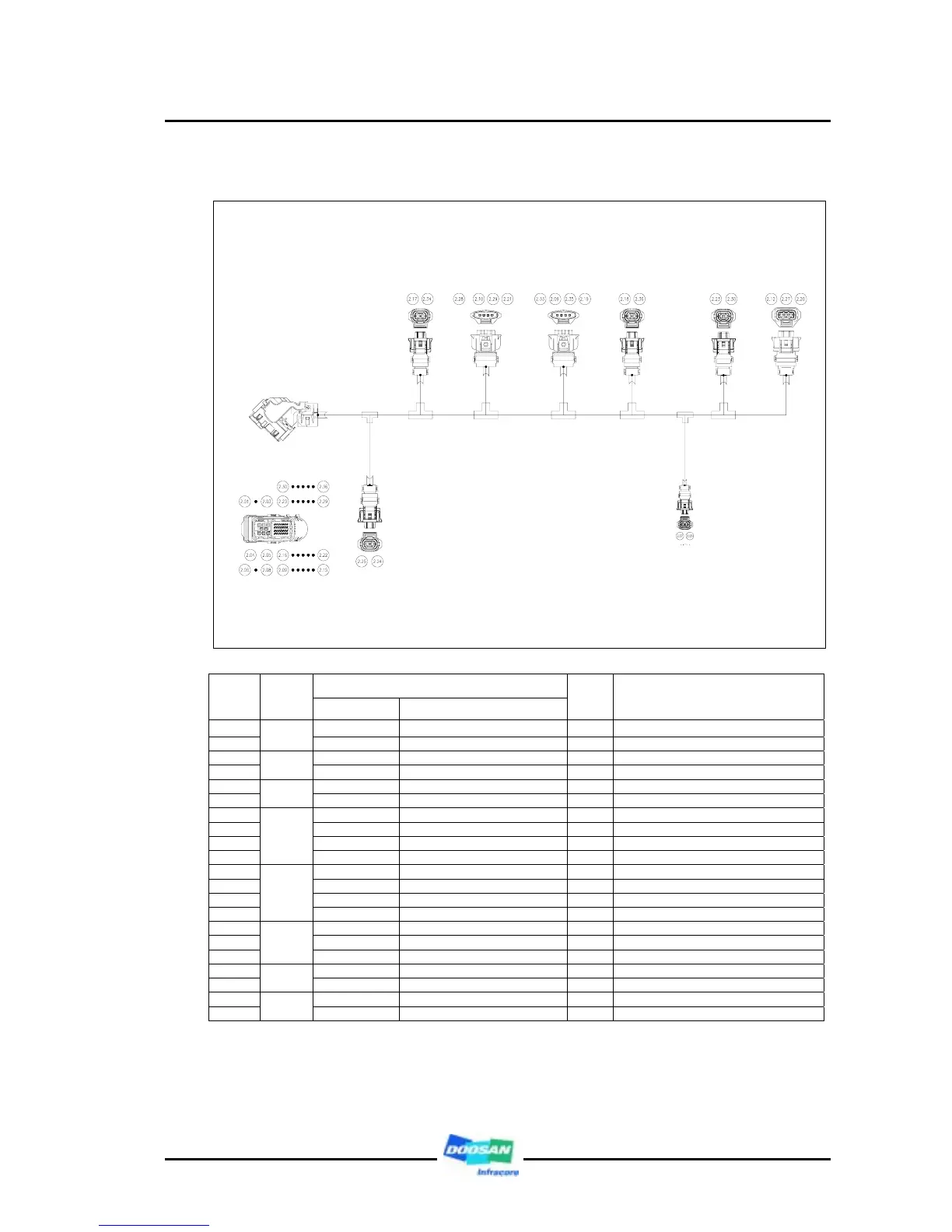

3.5.6. Engine harness - 1
Pin position
Part
name
Signal
ECU no. Connecting pin no.
Wire
color
Circuit name
2.25 ECU no. 25 Crankshaft sensor 1 White Speed sensor signal
2.24
CRS
ECU no. 24 Crankshaft sensor 2 Blue Speed sensor earth(-)
2.30 ECU no. 30 Camshaft sensor 1 White Speed sensor signal
2.23
CAS
ECU no. 23 Camshaft sensor 2 Blue Speed sensor earth (-)
2.07 ECU no. 07 Fuel metering unit 1 White Fuel metering unit (high)
2.05
MEU
ECU no. 05 Fuel metering unit 2 Blue Fuel metering unit (low)
2.19 ECU no. 19 Oil pressure sensor1 Blue Oil pressure sensor earth (-)
2.35 ECU no. 35 Oil pressure sensor 2 White Oil temperature sensor signal
2.09 ECU no. 09 Oil pressure sensor 3 White
Oil pressure sensor power supply (5V)
2.33
OPTS
ECU no. 33 Oil pressure sensor 4 White Oil pressure sensor signal
2.21 ECU no. 21 Boost pressure sensor 1 Blue Boost pressure sensor earth(-)
2.29 ECU no. 29 Boost pressure sensor 2 White
Boost temperature sensor signal
2.10 ECU no. 10 Boost pressure sensor 3 White
Boost pressure sensor power supply (5V)
2.28
BPTS
ECU no. 28 Boost pressure sensor 4 White Boost pressure sensor signal
2.20 ECU no. 20 Rail pressure sensor 1 Blue Rail pressure sensor earth (-)
2.27 ECU no. 27 Rail pressure sensor 2 White Rail pressure sensor signal
2.12
RPS
ECU no. 12 Rail pressure sensor 3 White
Rail pressure sensor power supply (5V)
2.36 ECU no. 36 Coolant temperature sensor 1 White Coolant temperature sensor signal
2.18
CTS
ECU no. 18 Coolant temperature sensor 2 Blue Coolant temperature sensor earth (-)
2.34 ECU no. 34 Fuel temperature sensor 1 White Fuel temperature sensor signal
2.17
FTS
ECU no. 17 Fuel temperature sensor 2 Blue Fuel temperature sensor earth(-)
Engine ECU
Fuel
temperature
sensor
(FTS)
Boost
pressure
sensor
(BPTS)
Oil
pressure
sensor
(OPTS)
Water
temperature
sensor
(CTS)
Cam shaft
speed
sensor
(CAS)
Common
rail pressure
sensor
(RPS)
Fuel metering
unit
(MEU)
Crank shaft
speed
sensor
(CRS)
