DV11
Operation and Maintenance
113
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

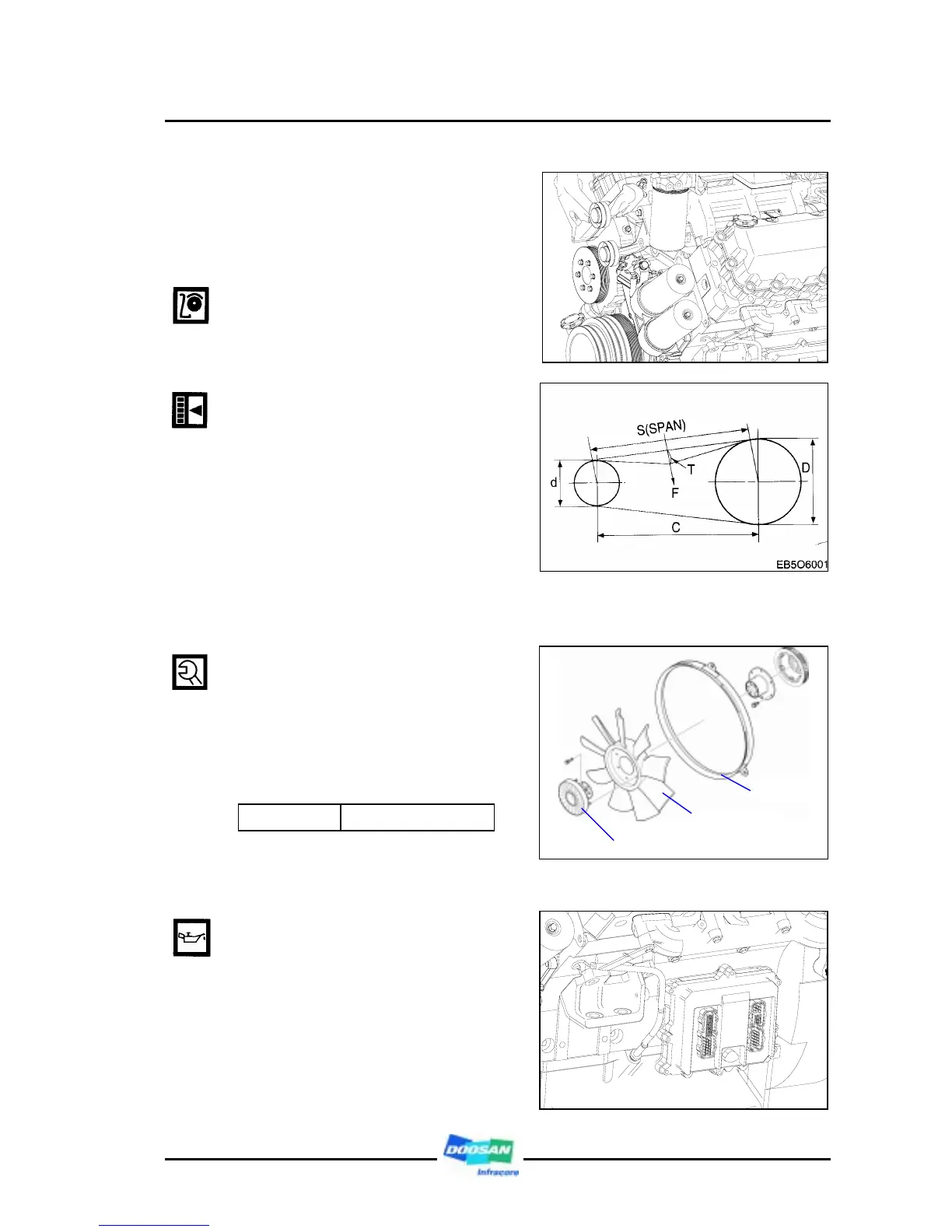

z Put the belt into the crankshaft
pulley, alternator pulley, water
pump and air con pulley for
connecting.
z Do not adjust the tension of the
auto tensioner.
z Poly belt will be properly tensioned
if the deflection force “F” is applied
midway between the belt’s tangent
points with the pulley.
(T) = 0.015 x S
(about 1.5mm per 100mm)
(T : Deflection, S : span)
3.3.40. Cooling fan
z Install the flange to the crankshaft
pulley, then assemble the cooling
fan and the fan clutch to the pulley
by tightening the fixing bolts.
Torque 2.2 kg.m
3.3.41. Oil level gauge
z Apply sealant (Loctite #262) to the
bottom side of the guide tube.
z Then assemble the guide tube and
oil level gauge on the oil pan.
Cooling fan
Fan clutch
Fan guide
To Next Page
