DV11
Operation and Maintenance
111
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

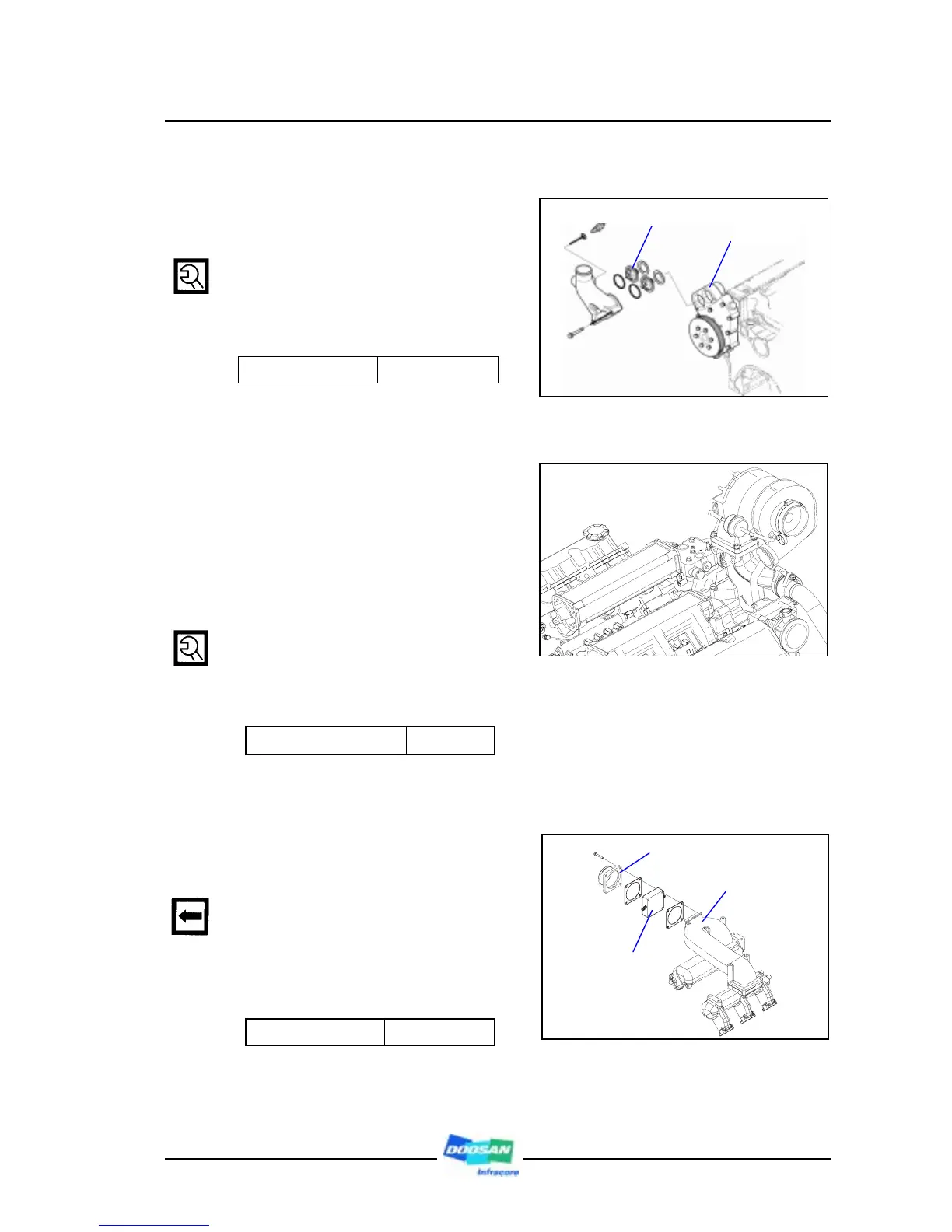

3.3.35. Thermostat
z Put the thermostat into the water
pump with gasket.
z Put the O-ring into the thermostat,
then assemble cooling water pipe
by tightening the fixing bolt.
Tor que 2.2 kg.m
2.3.36. Turbo charger
z Attach a gasket to the exhaust
elbow and assemble the
turbocharger with fixing bolts.
z Attach a gasket on the oil supply
pipe and assemble the pipe with
the fixing bolts.
z Attach a gasket on the oil
discharge pipe and assemble the
pipe by tightening the bolts.
Turbocharger fixing nut
torque
4.4 kg.m
3.3.37. Intake stake & air heater
z Connect the intake stake to the
intake manifold.
z Assemble the air heater according
the direction of an arrow impressed
on the air heater and assemble the
pipe by tightening the bolts.
Torque 2.2 kg.m
Thermostat
Water pump
Air pipe
Intake stake
Air heate
To Next Page
