DV11
Operation and Maintenance
66
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A

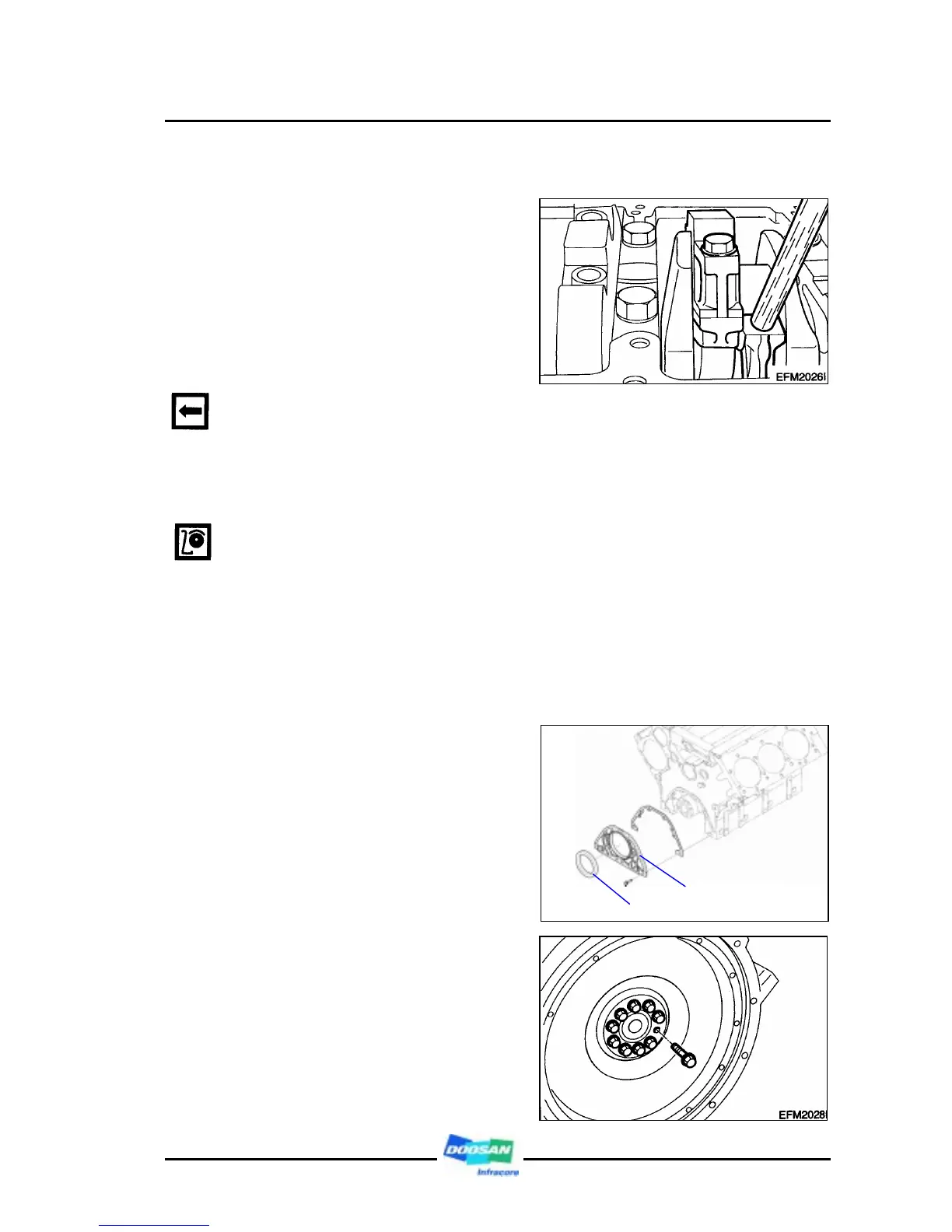

3.1.33. Piston
z Remove the connecting rod cap
bolts in the reverse order of
assembling.
z Tapping the upper and lower of
connecting rod caps lightly with an
urethane hammer, separate them
and take the bearings out.
z By pushing the piston assembly
with a wooden bar toward the
cylinder head's direction remove
the piston.
CAUTION:
Be careful for the removed pistons not to collide each other or with the
other parts.
At the storage of pistons, maintain them in the order of cylinders. (In order
for connecting rod caps not to mix one another, temporarily assemble them
to the corresponding connecting rods.)
3.1.34. Front oil seal cover
z Remove the oil seal holder fixing
bolts and tear down.
z Remove the oil seal holder fixing
bolts and tear down.
3.1.35. Fly wheel
z Remove the flywheel fixing bolts in
the order of disassembling and
remove the flywheel.
Oil seal cover
Oil seal
