DV11
Operation and Maintenance
61
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A

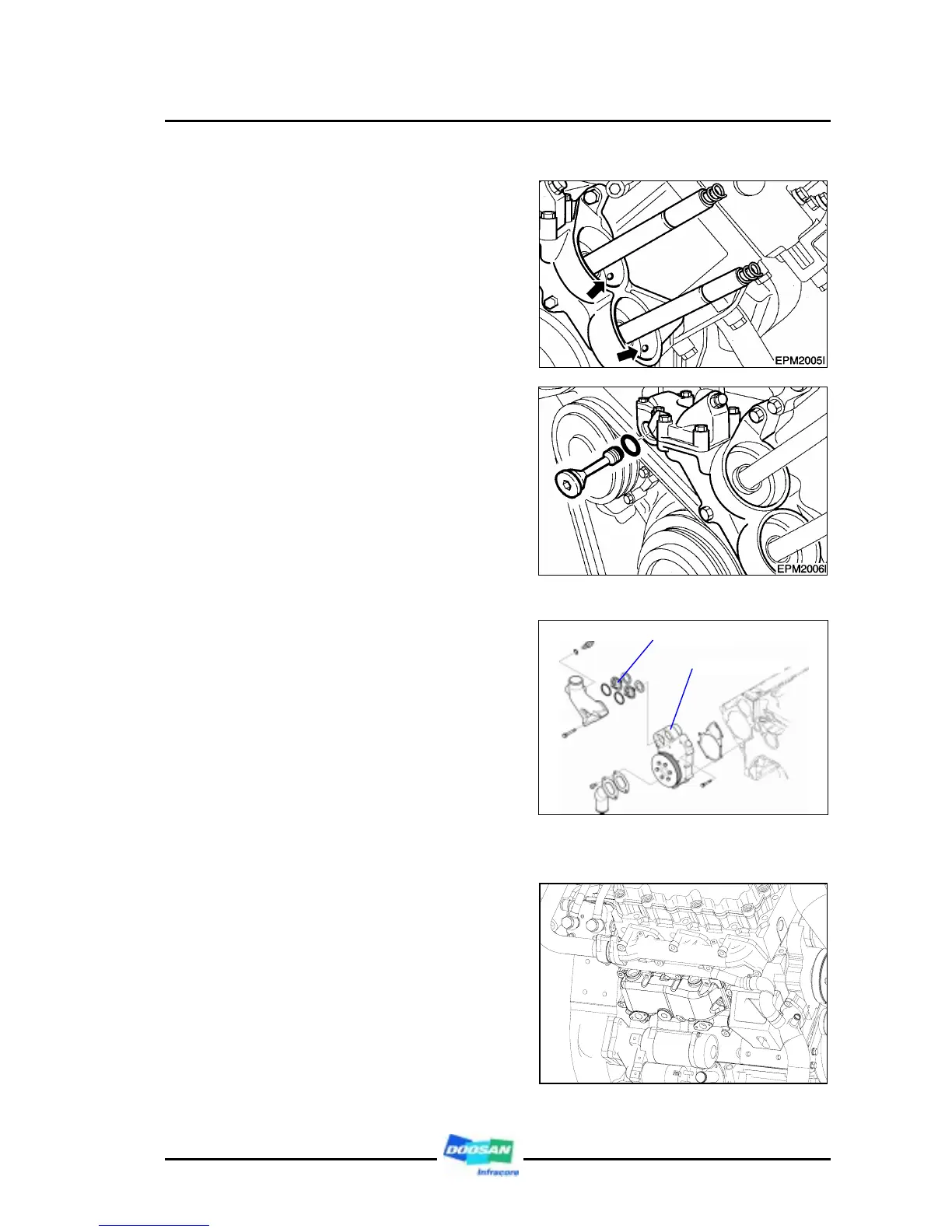

z Allow an interval of 2 ~ 3 minutes
until the engine oil by-passes to the
oil pan, then take off the filter.
z Unscrew the oil filter head fixing
bolts and take off the oil filter head
3.1.20. Water pump
z Loosen the various hose clamps
for the connections.
z Remove the cooling water
discharging pipe and disassemble
the thermostat.
z Remove the cooling water pump
fixing bolts and disassemble the
cooling water pump.
3.1.21. Starting motor
z Remove the starting motor fixing
nuts and disassemble the starting
motor.
Water pump
Thermostat
